ADM Accessories V Series Side-by-Side System w/MiniMAX Guider

(Only 1 Left)
Free shipping
SKU: ADM-VSBS-MINIMAX
$539.00


ADM V Series Side-By-Side System
with MiniMAX Guider

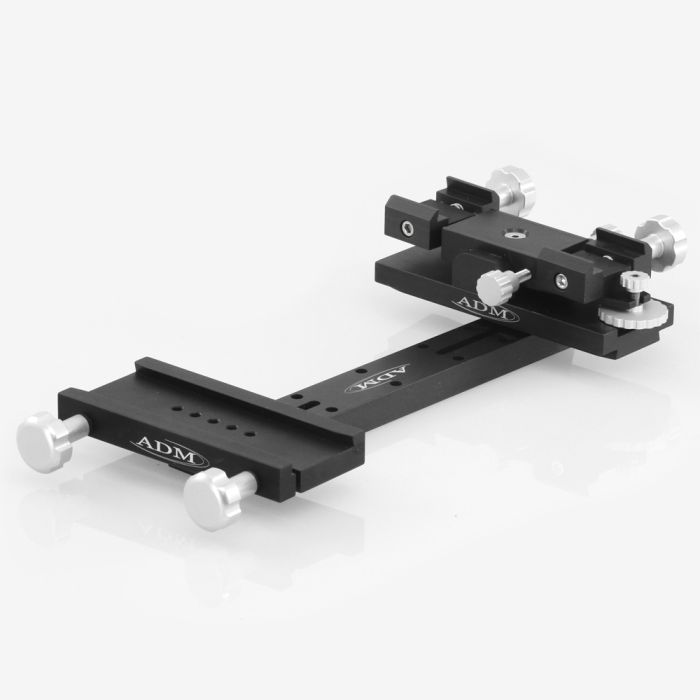

This V Series side-by-side mounting setup features one V Series dovetail saddle on one side and one Mini-MAX aiming device on the other side with an 11" long dovetail bar connecting them. This dovetail bar avoids scratches and other damage due to the saddle's split clamp design that grabs the bar over the whole surface. Two large locking hand knobs enable tool free functionality. This saddle also boasts anodized aluminum and stainless steel construction and spring loaded jaws. Mini-MAX guider offers both altitude and azimuth adjustments and attaches directly to the SBS connecting bar. A 7" Vixen dovetail bar is required for guidescope mounting.

About the MiniMAX Guider...

  • Alternative to adjustable guidescope rings.
  • Supports guidescope/finderscope with tube rings and dovetail bar for added stability and simple adjustability.
  • Used for co-aligning two optical tubes for viewing the same target or offsetting two optical tubes to find a suitable guide star for autoguiding.
  • Designed entirely for the Vixen “V” series of dovetail bars to help reduce the overall weight to under 2.1 lbs.
  • Capable of handling any guidescope under 10 lb.
  • 10 degrees of Azimuth adjustment and 5 degrees of altitude adjustment.
  • 6.4″ long and adds approximately 1.6″ of height (from top of dovetail on OTA to bottom dovetail on guidescope).
  • CNC machined from aircraft quality 6061 aluminum.
  • All components are anodized aluminum and stainless steel for a beautiful finish and long lasting durability.
