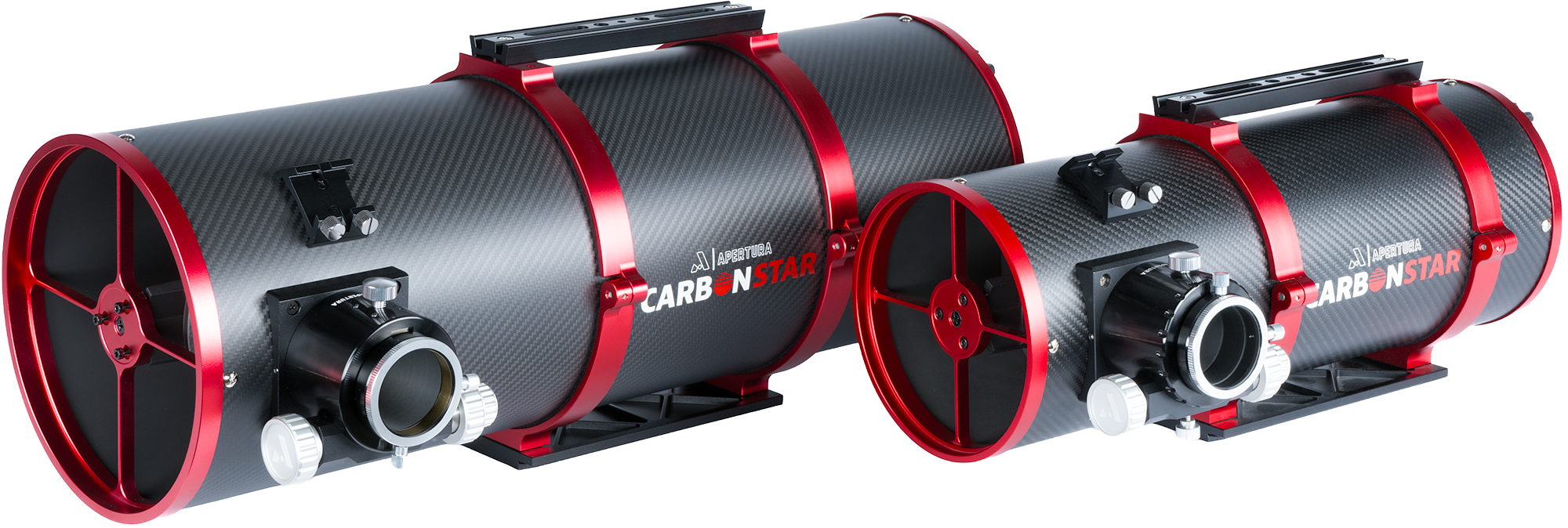

Apertura CarbonStar Imaging Newtonians
×
![]()
Created For Astrophotographers, By Astrophotographers
Understanding the need for a fresh entry within the world of astrographs, Apertura introduces the state-of-the-art CarbonStar Imaging Newtonians, a bold answer to modernizing the classic Newtonian design. More than just another imaging telescope and forged by a team of seasoned astrophotographers, this revolutionary series is built to deliver outstanding images of diffuse nebulae, distant galaxies, and other deep sky wonders. Discover the hallmark traits of the CarbonStar Imaging Newtonians below:
- Cutting-Edge Construction: The carbon fiber body and red CNC-machined aluminum ends offer more than just visual appeal, these modern materials deliver impressive strength, resilience, and exceptional thermal stability for the utmost imaging performance.
- Reimagined from the Inside Out: With a goal of maximizing light gathering power, Apertura took to the drawing board, placing the focal plane as close to the optical tube as possible. The result? A wider, brighter field of view optimized for today’s most popular sensors, without an increase in central obstruction.
- Engineered with Intent: Multiple knife-edge baffles within the optical tubes catch internal reflections and stray light before they can make an impact on your images. This initiative is furthered with the custom-designed rear cell shield for unmatched light control.
For a closer look at how Apertura brings the CarbonStar Imaging Newtonians into today’s imaging scene, be sure to check out our in-depth Modernizing an Imaging Newtonian article on our Astronomy Hub.
Your Next Astrophotography Powerhouse
Designed by astrophotographers, for astrophotographers, the CarbonStar Imaging Newtonians are geared for greatness. Fast photon collection courtesy of the f/4 focal ratio out-speeds that of SCTs reflectors of the same size, while the large apertures gather more light than most refractors at a similar price point. To Apertura, “good enough” isn’t part of the equation, each scope offers exceptional illumination across their respective image circles for maximum clarity. More than just optimized optics, the Apertura CarbonStar Imaging Newtonians redefine your astrophotography experience!
Built for Brilliance: The Signature Components of The CarbonStar Imaging Newtonian Series
Heavy-Duty, Lightweight, Construction
Modernizing the classic photographic Newtonian, the Apertura CarbonStar Imaging Newtonians are designed with game-changing upgrades tailored specifically for today’s astrophotographer!
• Carbon fiber replaces the traditional metal tube, delivering a housing with the same level of stability though in a lighter, more thermally efficient ensemble
• CNC-machined aluminum ends further this modern design, holding your optics steady and rigid with cutting-edge materials
• Red anodizing and a matte carbon body provide seriously sleek style
Bold and built to revolutionize, take your astrophotography into the present-day imaging scene with this next-gen scope!
Rock-Solid 2" Focusers
Built for precision-driven astrophotographers, the focusers on the CarbonStar Imaging Newtonians are a cut above the rest! Each model offers a unique approach, though one thing is certain: exceptional performance.
Shared highlights across both builds:
• Dual-speed knobs with 10:1 focusing precision offer heightened control
• Large texturing provides better grip for assistance with manual focusing,
• The modernized design provides quick, straightforward installation of today’s most popular bracket-style electronic focusers, including the new ZWO Electronic Automatic Focuser (2025) (sold separately).
• Out-of-the-box compatibility with the vast majority of equipment on the market today
• Both models include a 2” to 1.25” eyepiece adapter for extra gear coverage

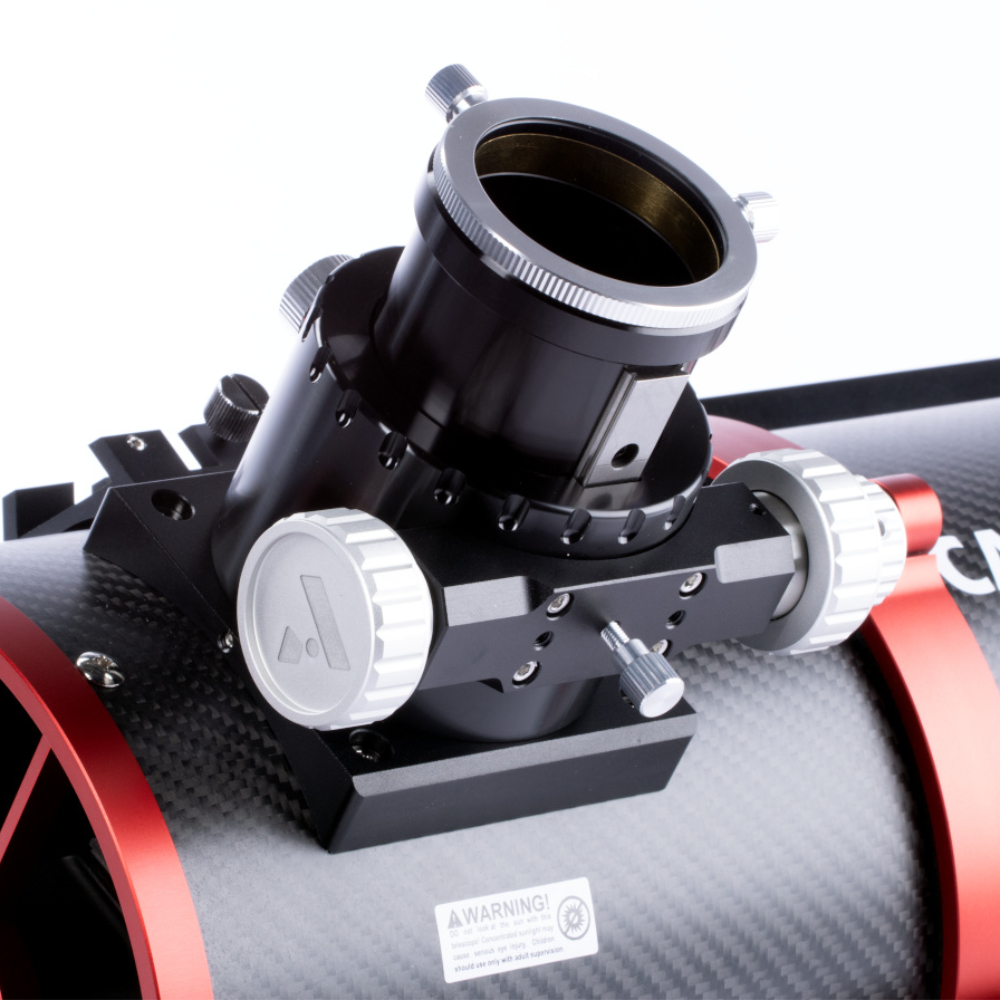

Linear Bearing Design of the CarbonStar 150
• Resembles that of a Crayford-style focuser with a flat rail running on dozens of ball bearings
• Increased contact points courtesy of these hard ball bearings deliver ultra-smooth, ultra-precise motion for all types of imaging trains
Rack & Pinion Focuser of the CarbonStar 200
• The toothed bottom rail and linear top rail of the CarbonStar 200 work together to provide the “bite” needed for gear stability and smooth focus motion
• Even the heaviest of APS-C imaging trains are fully supported when mounted on the CarbonStar 200 thanks to the robust design
Exceptional Stray Light Control
Worried about stray light? No need! Thanks to the highly experienced team at Apertura, the CarbonStar Imaging Newtonians are precision engineered to keep unwanted glare at bay. Check out the thoughtful additions:
• Several knife-edge baffles inside the optical tube put a damper on any contrast-killing light, delivering sharp, crisp astroimages.
• An included rear cell cover installs in just seconds, further safeguarding against stray light from the tail-end of the scope.
These defenses work in tandem to shut out intrusive glow, helping you maximize detail and supercharge clarity! For ultimate light control with the CarbonStar 150, the Apertura CarbonStar 150 Primary Mirror Mask removes the mirror clip diffraction pattern for cleaner, more natural-looking images.
Straightforward Collimation
Collimation is no doubt an intimidating notion for those hesitant in choosing a reflector over a refractor. The good news? Apertura gear is designed by seasoned experts who fully understand the setbacks of this process, and they have equipped the CarbonStar Imaging Newtonians with innovative advancements!
• Primary mirror knobs enable fast, easy mirror alignment right at your fingertips.
• Super-rigid CNC-machined spider veins resist the twisting to which other Newtonian veins are prone.
These upgrades combined with the incredibly accurate Apertura Cheshire Collimation Eyepiece or Apertura 1.25" Laser Collimator is a recipe for success, offering streamlined, hassle-free collimation!
Multiple Aperture Classes Ready to Meet Your Imaging Demands
The 6" Advantage:
Medium Size, Maximum Impact
Compact in nature yet powerful in performance, the Apertura CarbonStar 150 offers spot-on synergy. The unmatched light gathering capabilities of a Newtonian within a highly manageable frame, this astrograph masterfully blends form and function for outstanding results.
- Aperture: With a 150 mm (about 6") primary mirror, this imaging Netwonian reflector is well equipped for resolving serious detail within the captured frames.
- Focal Length: Features a 600 mm focal length; wonderful for a wide variety of targets from vast, sweeping nebulae within our own Milky Way to distant galaxies millions of light years removed.
- Dimensions: Excellent optics within a package weighing just 10.4 lbs. and measuring less than 20" in length.
- Sensor Coverage: Fine-tuned for remarkable illumination across micro 4/3 sized sensors.
- Upgrade-Ready: When paired with the included Apertura 0.95x Photographic Reducing Coma Corrector (PRCC), you get close to 20% more illumination in the center of frame relative to previous 6" f/4 imaging models.

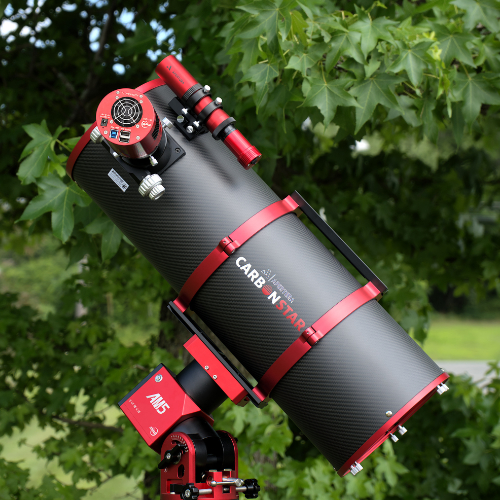

Give in to Your Aperture Fever
with this 8” Design
With this larger, bolder entry in the CarbonStar Imaging Newtonian series, more aperture, more equipment coverage, and the same superior astroimaging performance is in right within reach! This scope is a standout imaging option for astrophotographers craving bigger, brighter views.
- Aperture: Housing a 200 mm (about 8”) primary mirror, expect 1.78x the light gathering power of the CarbonStar 150 for brighter, more vibrant images.
- Focal Length: The 800 mm focal length offers ideal sampling for sensors housing medium-sized pixels, while also providing a stunning field of view for a host of deep sky objects.
- Dimensions: Includes a sleek 26.5" length and 15.8 lbs. form factor that rides effortlessly atop a mid-sized equatorial mounts.
- Sensor Coverage: Fully optimized for APS-C sized sensors, offering use with some of today’s most popular cameras.
- Upgrade-Ready: When coupled with the dedicated Apertura 1x Photographic Coma Corrector, a roughly 8% gain in illumination can be expected when compared to the already impressive Apertura CarbonStar 150 and Apertura PRCC.
Taking The Outstanding Optical Performance One Step Further
Ready to elevate your CarbonStar experience even more? Built to correct for coma, the Apertura Photographic Reducing Coma Corrector for the CarbonStar 150 and the 1x Photographic Coma Corrector for the CarbonStar 200 are ready to supercharge your imaging experience. Unlock the full potential of your scope and push your astrophotography to the max with these must-have accessories.

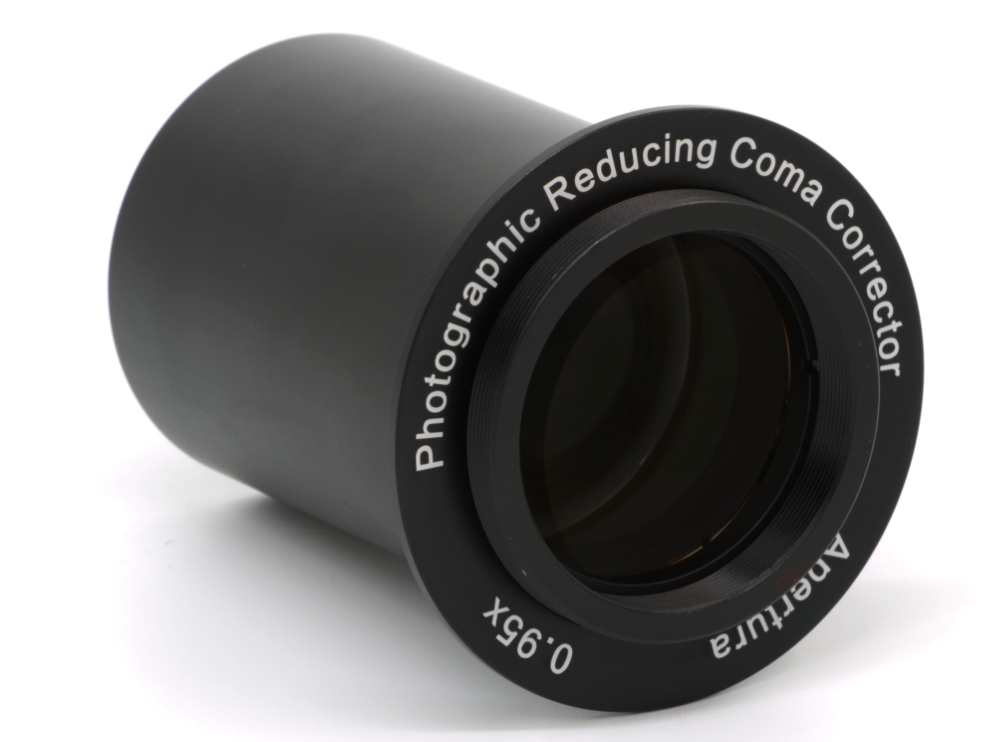

- Apertura Photographic Reducing Coma Corrector
A perfect pairing for your CarbonStar 150, the Apertura PRCC is tailor-made to eradicate comet shaped stars around the edges of the frame for pro-grade clarity. The benefits don’t stop there! Doubling as a photographic reducer, enjoy 10% more signal in each frame with the 0.95x reducing aspect. Three internal correcting elements make this possible, offering crisp, vivid images at the ready.

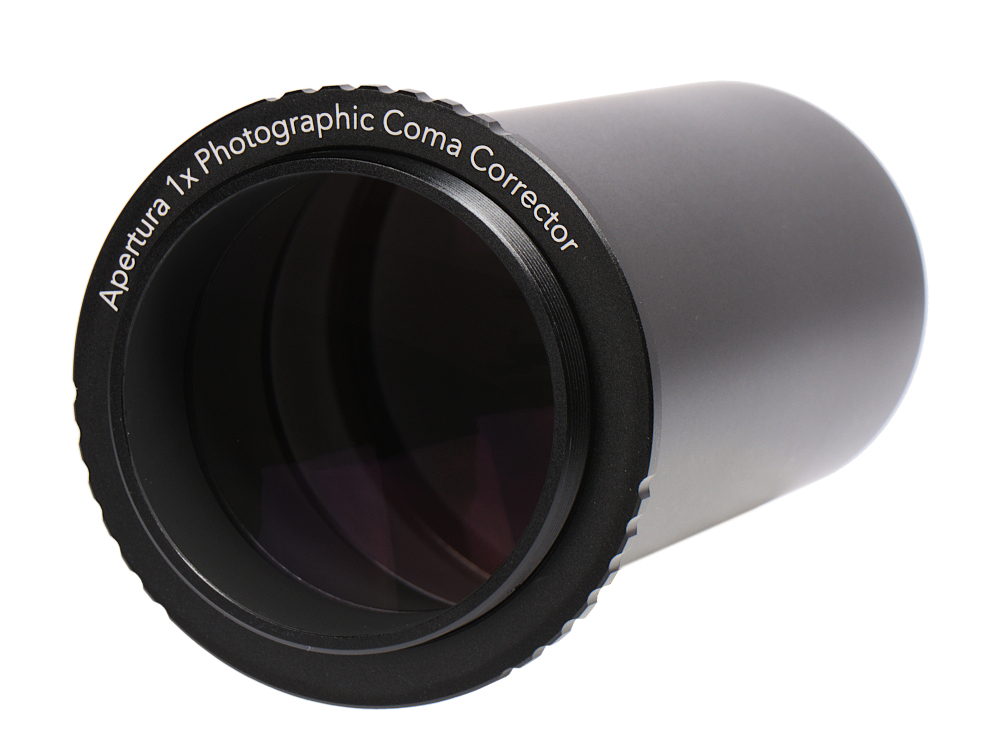

- Apertura 1x Photographic Coma Corrector
Power-packed and ready to perform, the Apertura 1x Photographic Coma Corrector for the CarbonStar 200 houses four internal optical elements for top-of-the-line coma correction. Even the demanding APS-C format is no match for this accessory, delivering pinpoint stars corner to corner without trimming your stock scope's framing. Tame coma and see how far your CarbonStar 200 can go with this vital companion!
