Celestron RASA 8 - 8" Rowe-Ackermann Schmidt Astrograph OTA - 91073

shipping truck Free shipping
SKU: CEL-91073

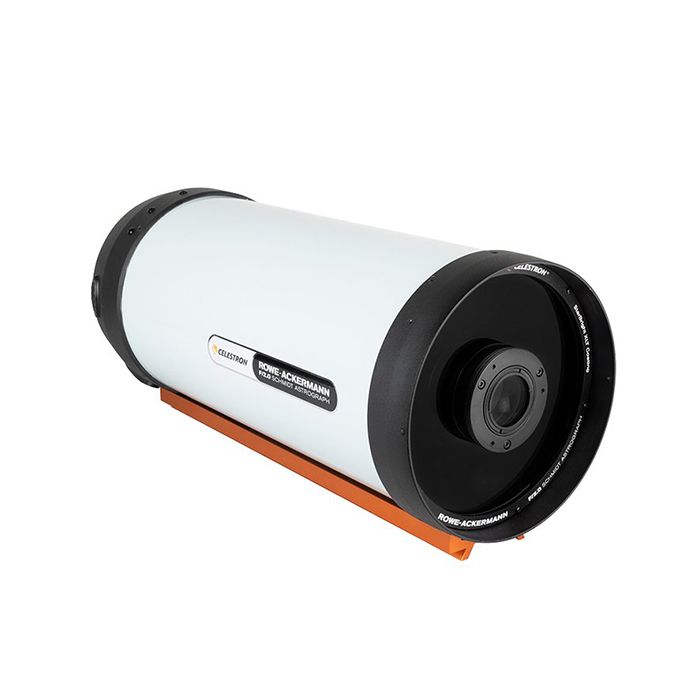

Celestron 8" RASA Astrograph Optical Tube

  • The flat field over the entire APS-C sensor is void of optical distortions such as field curvature, coma, astigmatism, and chromatic aberration.
  • Incorporates a new Ultra-Stable Focus System with six precision sealed ball bearings to essentially eliminate image shift.

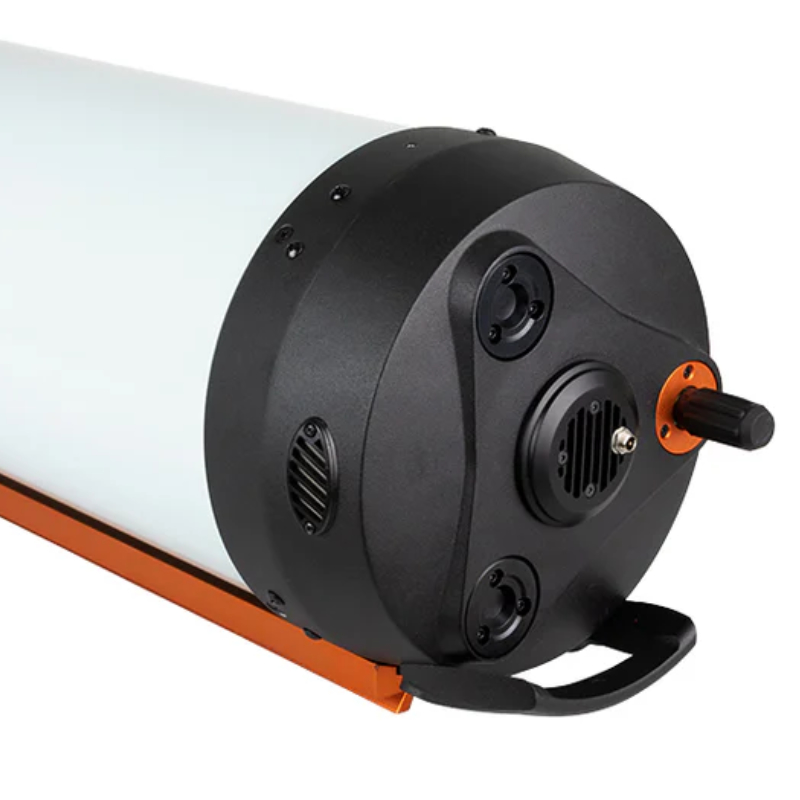

  • A built-in air cooling system with 12V DC MagLev fan minimizes the time needed for cooling down while providing ideal air flow and cleaning out dust.

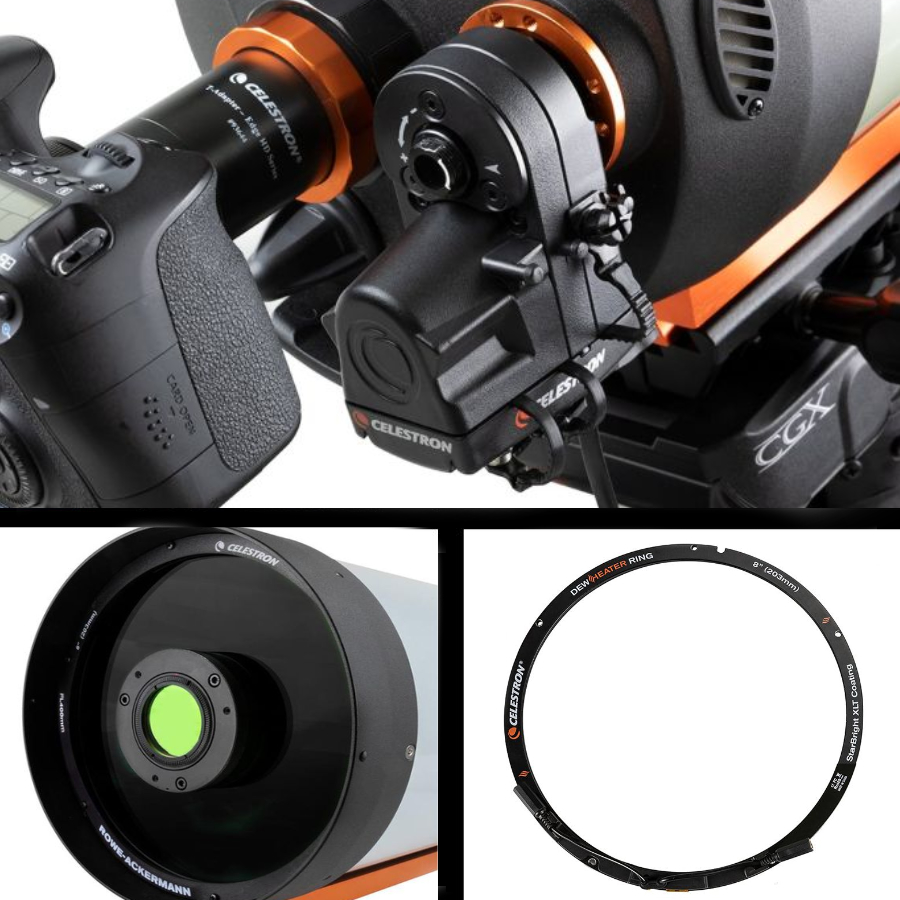

  • A Light Pollution Imaging Filter can be seamlessly made suitable for the optical path via an internal filter mount.
  • Compared to most telescopes, the Celestron 8" RASA is able to cover a wider spectral range, 390 nm to 800 nm, for a higher percentage of sharply focused incoming light.

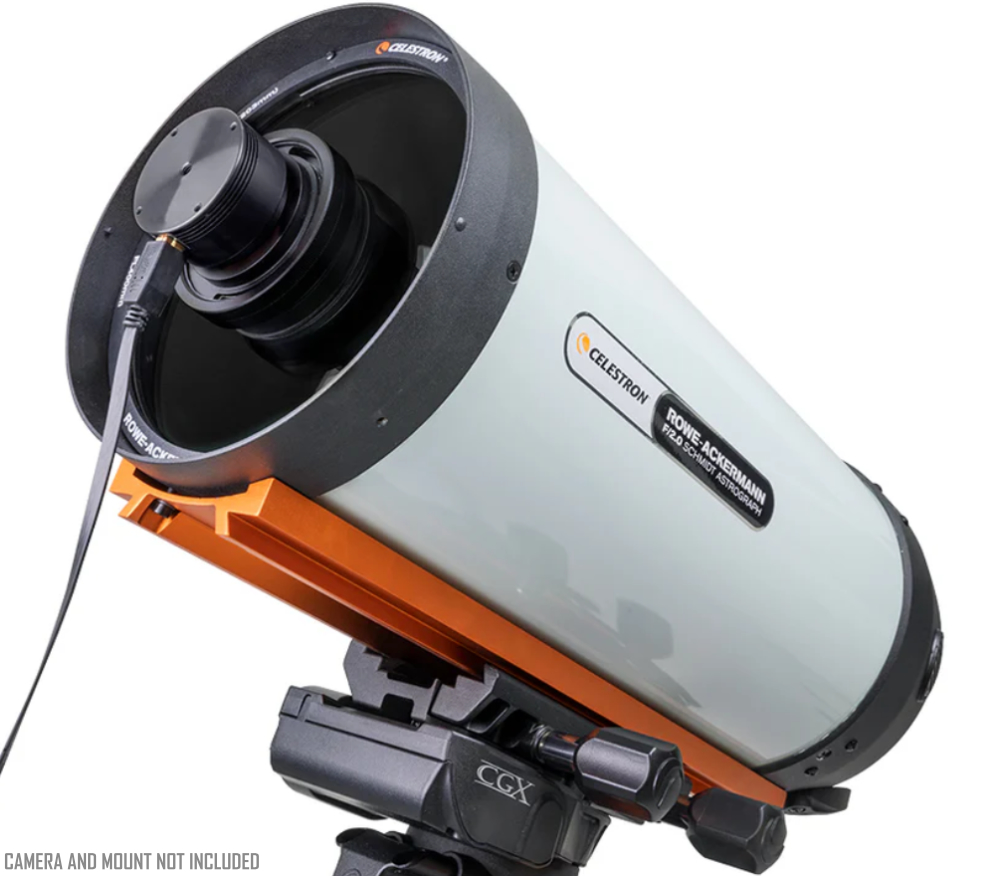

With this new portable Celestron astrograph, the 8" RASA (Rowe-Ackermann Schmidt Astrograph), you'll be able to capture breathtaking wide field views of deep sky objects in a matter of seconds. The 8" RASA's awesomely fast f/2.0 optical system works perfectly in conjuction with modern color astronomical CMOS, smaller CCD, and mirrorless cameras. This combination of a fast focal ratio and patented optical design generates sharp images with superb detail, and, in many instances, allows you to completely skip the autoguider. Plus, as it weighs only 17 pounds, transporting your 8" RASA to distant dark sky locations is easy.

RASA Performance Made For Everyone

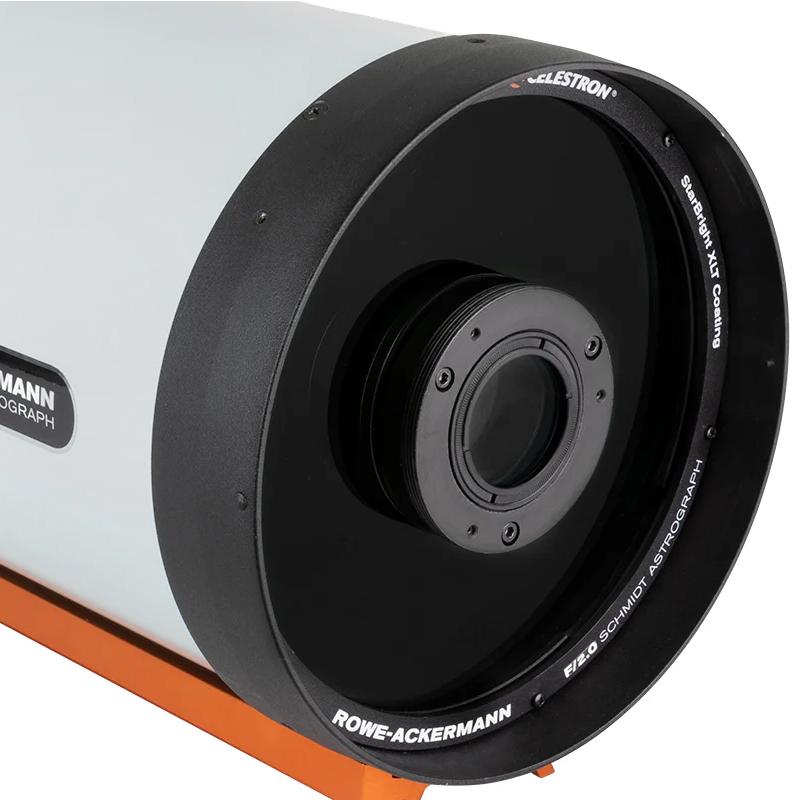

The Celestron 8" RASA is an imaging telescope that delivers a flat field without optical aberrations for razor sharp stars across a wide field of view. It is capable of capturing stunning deep sky astronomical images without the challenges typically presented by longer focal length instruments at a fraction of the cost of those systems.

This 8" model is the most recent addition to the RASA lineup. It offers greater portability and is much more affordable when compared to the popular 11" RASA which was highly acclaimed when it was introduced in 2014. With the addition of the economical 8" RASA, more astrophotographers will be able to take advantage of the Rowe-Ackermann design. This 8" and 11" RASAs share many of the same attentively designed features such as a built-in air-cooling system, internal filter mount, and durable CGE dovetail mounting bar.

Designed purely for imaging, the Celestron 8" RASA will not work as a visual instrument. Since the prime focus focal plane is located at the front of the optical system, it cannot accommodate a traditional eyepiece.

Shorter Exposure Times and Virtual "Real-Time" Observing

Due to its extremely fast f/2.0 optical system, imagers can use minimal exposure times with the 8" RASA to capture enhanced detail in dim targets. When employed in conjunction with sensitive cameras and the appropriate "live stacking" software, the 8" RASA is capable of delivering a virtual real-time observing experience. Instantly view images on a computer with more brightness and detail than can be viewed with the naked eye using much larger telescopes.

Ultra-Stable Focus System

With the launch of the 8” RASA, Celestron is unveiling a new focuser design that mitigates lateral movement of the primary mirror when focusing, slewing, or tracking with the astrograph. Focusing is easier, more accurate, and more stable than ever. The key to the Ultra-Stable Focus System is two sets of precision bearings that are precisely aligned and tested during assembly to ensure optimal results.

Built for Today's Latest Cameras

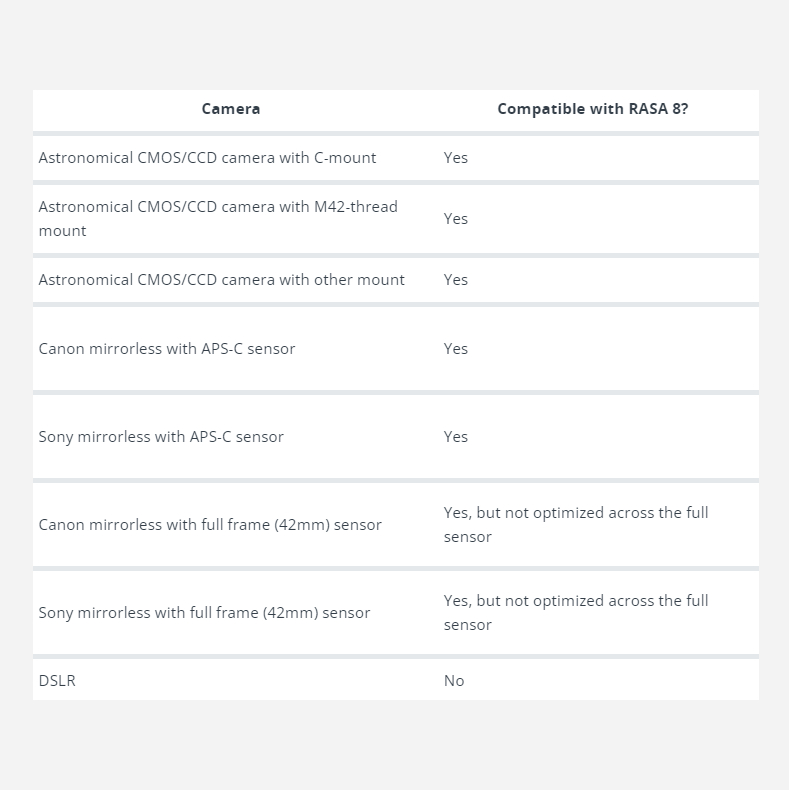

Contrary to larger Rowe-Ackermann Schmidt Astrographs that are compatible with DSLR and large CCD cameras, the 8" version was designed with regards to color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras. This telescope is not suitable for use with standard DSLR cameras. Optimized for up to 22 mm diagonal sensors, the 8" RASA also offers sufficient performance with sensors up to 32 mm diagonal. Many mirrorless cameras use APS-C sized sensors that would be an excellent option. 42 mm full frame sensors are also compatible, but performance will suffer at the edges of the sensor while field illumination is decreased. Furthermore, Celestron does not recommend pairing the 8" RASA with any 4" diameter or larger camera body.
