Pegasus Astro FlatMaster 150 Dimmable Flat Field Illumination Panel
Skip to the beginning of the images gallery

Pegasus Astro FlatMaster 150 Dimmable Flat Field Illumination Panel

SKU: PGA-FLTMSTR150L
$206.40
Ask an Expert
expert photo

Pegasus Astro has discontinued the FlatMaster 150 Dimmable Panel, and we are out of stock.  Here is a link to the Pegasus Astro FlatMaster 150 Dimmable WiFi Flat Field Illumination Panel we carry at High Point.  If we can be of further assistance, please don't hesitate to call us at 1-800-266-9590 or send an email, and we will be happy to help you.  Thank you!

Pegasus Astro FlatMaster

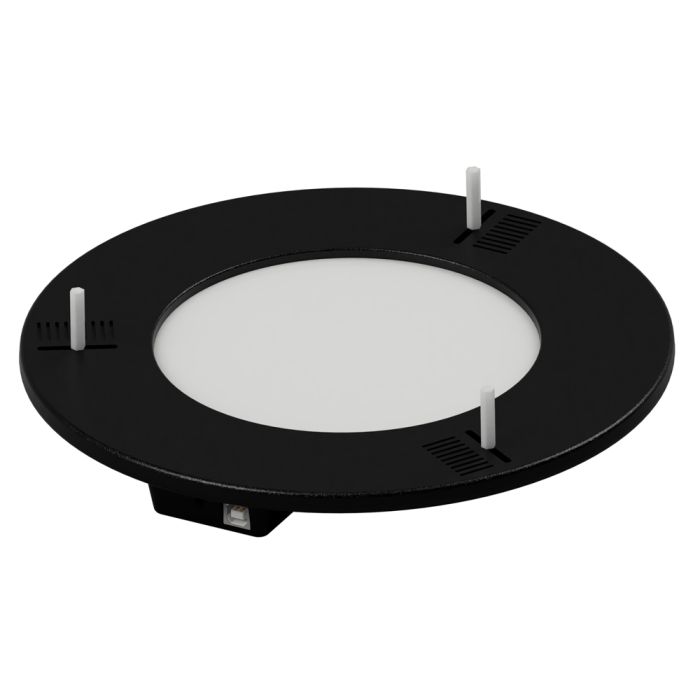

The FlatMaster 150 from Pegasus Astro is a flatfield panel that provides a uniform source of illumination up to 150 mm. Using this flatfield panel enhances astrophotography and photometry by providing a consistent illumination source and producing high-quality flat-field frames.

This 150mm FlatMaster features a small push button that sets different levels of brightness. In the event that you would want to manually operate the FlatMaster, no problem. Simply click the push button to control the brightness. This eliminates the need for having sheets of paper between your telescope and the panel.

Only one mini USB cable is needed for powering and controlling your panel. Software allows filter names to be set for storage and retrieval of your FlatMaster panel's brightness levels. The FlatMaster is supported by Pegasus Astro's ASCOM switch driver which allows ASCOM compliant programs to control the panel.

Included is a carry bag for storage and transportation.

Pegasus Astro FlatMaster Specifications

  • Type: Light Panel (White)
  • Dimmable: Yes (0-100%)
  • Material: Stong Black ABS Plastic
  • Manual Push Button: Different brightness levels
  • Usable Circle Diameter: 150 mm (5.9")
  • Power Requirements: 5V DC provided by mini USB cable
  • Size: Diameter 250 mm x 8 mm thickness
  • Weight: 10.6 oz.

Please Note: Pegasus Astro states that their Unity software suite currently does not work with Windows machines equipped with the Snapdragon line of CPUs.
