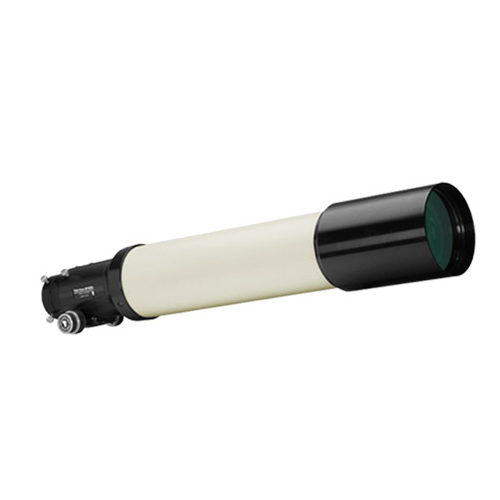

Tele Vue NP127is Nagler-Petzval APO Refractor Telescope OTA - NPI-5054

SKU: TLV-NPI-5054

Regularly stocked item that is on order with the manufacturer and on its way to our warehouse. Expected to arrive within 5-10 business days.

free shipping free shipping

One of the many benefits to becoming a customer of High Point Scientific is that you receive Unlimited Tech Support on all of the products you purchase from us.  We understand that many of our products are technical in nature and require support.  Rest assured that our team of Telescope and Telescope Accessory experts will be standing by (800.266.9590) to support you for as long as you own one of our products!

Our price: $6,995.00
Bread Checkout


Tele Vue NP127is Refracting Telescope OTA




  • TeleVue NP127is Refracting Telescope has a new 10:1 focuser pinion assembly and a longer captive dew shield

  • Both optical and mechanical designs on the NP127is have been revised to additionally shrink atmospheric defocusing ability

  • Delivering smaller spot sizes over a broader wavelength, the new lens prescription is a stainless steel lens cell providing better thermal stability, and advanced multi-coatings maximize contrast and transmission

  • Even with its new design and outstanding features, the NP127is keeps its predecessor's fast f/5.2 flat-field optics and the ability to image across a 52 mm diagonal sensor

  • TeleVue NP127is is compatible with ALL TeleVue imaging system accessories




The NP127is Refracting Telescope is another sound, sophisticated refracting scope by TeleVue. The new lens prescription delivers smaller spot sizes over a broader wavelength range than previously before. As well, the new stainless steel front cell helps provide better thermal stability in extreme climates. The new NP127is has advanced multi-coatings that are applied to maximize transmission and contrast. Still being the fastest in the industry, there is just no competitive comparison considering its f/5.2 speed and flat-field.




NP127is has also been mechanically updated from its longer captive dew shield to its new 10:1 focuser pinion assembly which is made for Tele Vue by Starlight Instruments. Bringing a refined elegance to this high performance APO refractor, the NP127is features a new shape of the dew shield and the rear cell, while also having a new gloss black anodized metalwork treatment.




The non-vignetting focuser retains its 3" input and 2.4" output to reduce bulk and permits imaging across the largest commercially available CCD chips (52mm diagonal). No need for a heavier, more cumbersome 3" focuser. Every 2.4" focuser we make is tested to hold and drive a minimum of 6 lb of weight in vertical orientation.




The TeleVue NP127is is exceptional because of the standard to which it is built. The four element air-spaced Nagler-Petzval system begins with a precision machined 660mm focal length optical tube that is fully internally blackened to prevent any stray light inflections. Then it's combined with a 127mm aperture extra low dispersion glass doublet as the primary lens with a secondary field-flattening/aberration-correcting extra low dispersion glass doublet at the opposite end. All optical coatings on the NP127is receive index matched multi-coatings. This design offers up diffraction-limited apochromatic performance as well as correcting for field curvature, spherochromatism, secondary spectrum, coma, spherical aberration, and astigmatism.




Overall, the NP127is Refracting Telescope by TeleVue is yet another masterpiece for superb observation. Not only is the design of the NP127is sleek and catching to the eye, but its performance goes above and beyond!

Description
Description

Tele Vue NP127is Refracting Telescope OTA

  • TeleVue NP127is Refracting Telescope has a new 10:1 focuser pinion assembly and a longer captive dew shield
  • Both optical and mechanical designs on the NP127is have been revised to additionally shrink atmospheric defocusing ability
  • Delivering smaller spot sizes over a broader wavelength, the new lens prescription is a stainless steel lens cell providing better thermal stability, and advanced multi-coatings maximize contrast and transmission
  • Even with its new design and outstanding features, the NP127is keeps its predecessor's fast f/5.2 flat-field optics and the ability to image across a 52 mm diagonal sensor
  • TeleVue NP127is is compatible with ALL TeleVue imaging system accessories

The NP127is Refracting Telescope is another sound, sophisticated refracting scope by TeleVue. The new lens prescription delivers smaller spot sizes over a broader wavelength range than previously before. As well, the new stainless steel front cell helps provide better thermal stability in extreme climates. The new NP127is has advanced multi-coatings that are applied to maximize transmission and contrast. Still being the fastest in the industry, there is just no competitive comparison considering its f/5.2 speed and flat-field.

NP127is has also been mechanically updated from its longer captive dew shield to its new 10:1 focuser pinion assembly which is made for Tele Vue by Starlight Instruments. Bringing a refined elegance to this high performance APO refractor, the NP127is features a new shape of the dew shield and the rear cell, while also having a new gloss black anodized metalwork treatment.

The non-vignetting focuser retains its 3" input and 2.4" output to reduce bulk and permits imaging across the largest commercially available CCD chips (52mm diagonal). No need for a heavier, more cumbersome 3" focuser. Every 2.4" focuser we make is tested to hold and drive a minimum of 6 lb of weight in vertical orientation.

The TeleVue NP127is is exceptional because of the standard to which it is built. The four element air-spaced Nagler-Petzval system begins with a precision machined 660mm focal length optical tube that is fully internally blackened to prevent any stray light inflections. Then it's combined with a 127mm aperture extra low dispersion glass doublet as the primary lens with a secondary field-flattening/aberration-correcting extra low dispersion glass doublet at the opposite end. All optical coatings on the NP127is receive index matched multi-coatings. This design offers up diffraction-limited apochromatic performance as well as correcting for field curvature, spherochromatism, secondary spectrum, coma, spherical aberration, and astigmatism.

Overall, the NP127is Refracting Telescope by TeleVue is yet another masterpiece for superb observation. Not only is the design of the NP127is sleek and catching to the eye, but its performance goes above and beyond!

Specifications
Specifications
Model Number NPI-5054
Telescope Aperture 127mm (5")
Telescope Series Tele Vue Nagler-Petzval APO
Telescope Mount Type No Mount - OTA Only
Type of Electronics OTA Only - No Electronics
Optical Design Refractor
Number of Refractor Elements 4 (Quad)
Focal Length (mm) 660
Focal Ratio f/5.2
Highest Useful Magnification 300x
Focuser Style Rack & Pinion
Focuser Size 2.4"
Focuser Speed Dual Speed
Telescope OTA Length (in.) 33.5
Telescope OTA Weight (lb.) 15.4
Total Weight without Counterweights (lb.) 18.3
Warranty Five (5) Years
What's in the Box?
What's in the Box?
  • Tele Vue 127 mm Nagler-Petzval APO Refractor Telescope OTA - Ivory
  • Brass Clamp Ring with Two Lock Knobs on Focuser Body
  • Enlarged 2.4" Focusmate Dual-Speed 10:1 Rack & Pinion Focuser with 3" Enterance Aperture
  • 2" Accessory Insert for Visual Accessories
  • Accessory End-Ring with Tilt Capability and Four Lock Knobs
  • Imaging Insert Threaded for Imaging System Components
  • Screw-On Metal Lens Cover
  • Sliding Metal Dew Shield
  • Hard-Shell Carry Case
