William Optics Low Latitude Vixen Base Mount & Red Extension Bar for SkyGuider Pro - Red
This Innovative Latitude Base is an Excellent Upgrade for Your Portable Imaging Rig!
Enhance your polar alignment routine with this powerful Vixen Style Base Mount from William Optics. This accessory upgrade is perfect for astrophotographers who want to optimize their lightweight imaging rig with a sleek red CNC-machined latitude base.
This Vixen Style Latitude Base will significantly improve your polar alignment accuracy, allowing you to unlock longer exposures when used with a star tracker. By integrating this powerful component into your lightweight imaging rig, you can dial in your precise latitude using the printed gauge. This latitude base is compatible with a range of tripods and piers that support 3/8" threaded connections. The vixen style saddle is a perfect match for most lightweight star trackers, such as the iOptron Sky Guider Pro and Sky-Watcher Star Adventurer 2i.
Vixen Style Latitude Base At a Glance
|
|
|
|
Dial In Your Alignment and Unlock Long Exposure Astrophotography
This Vixen Style Latitude Base is perfect for astrophotographers on the move. With a printed gauge optimized for low latitudes, those operating in lower regions of the northern and southern hemisphere will have no trouble dialing in their specific latitude for a highly accurate polar alignment. Learn more below!

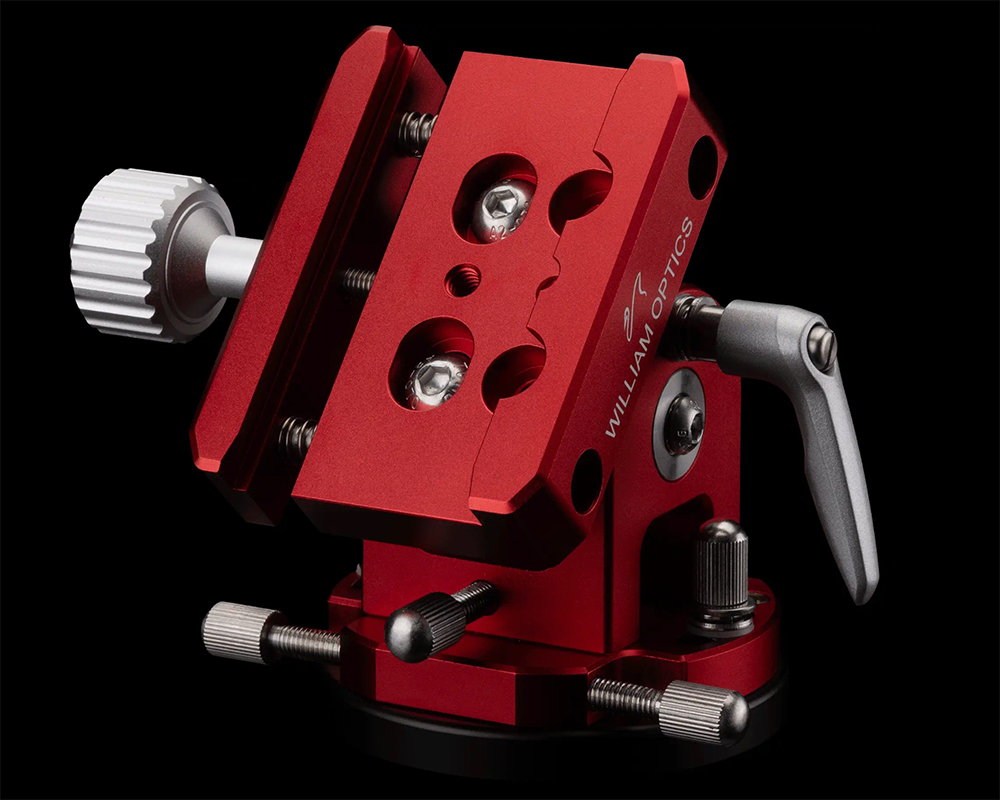

Split Clamp Vixen Style Saddle
This latitude base features a split clamp vixen saddle that accepts standard vixen style dovetails. Thanks to the innovative split clamp design, this saddle applies uniform locking pressure along the contact points, so you won't have to worry about dents and scratch on the dovetail bar. It also has a large locking knob for tool free operation, and the spring loaded clamp keep the saddle open when unlocked, making it easy to quickly position your equipment. The Vixen style saddle is compatible with the star trackers that include standard vixen style dovetails iOptron Sky Guider Pro and Sky-Watcher Star Adventurer 2i.

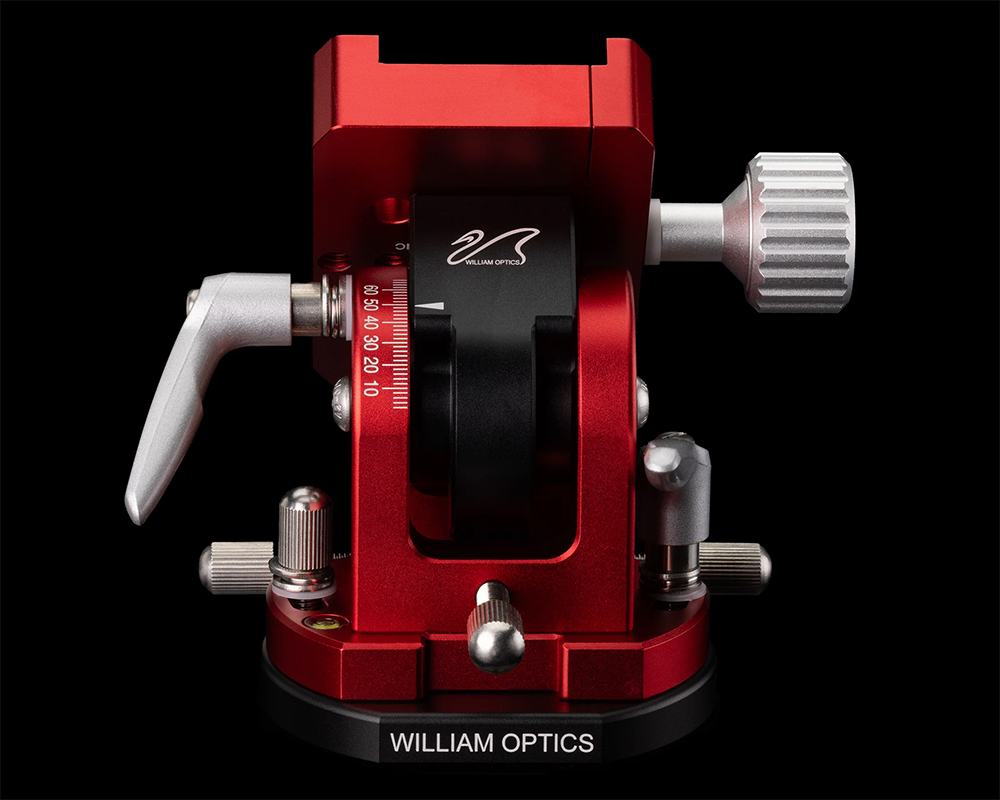

Printed Gauge Optimized for Low Latitudes
The printed gauge on the side of this latitude base is optimized for low latitudes ranging from 7°-34°. This is perfect for astrophotographers operating in lower regions of the north and southern hemisphere, allowing quick and accurate positioning. This base also features a built in bubble level that further supports overall alignment accuracy.
CNC Machined Components
Crafted with durable CNC machined components, this latitude base will support your astrophotography sessions for years to come! This unique base features an azimuth tension level and locking thumb screw, and two azimuth fine adjustment knobs, so you'll have no trouble making both fine and course grain adjustments. This altitude base also features two altitude tension knobs, and a guided altitude adjustment leveler, so you can quickly dial in your latitude alignment. With these precision machined components, you'll be able to dial in your polar alignment quickly and lock in your positioning without disrupting your precise polar alignment. Despite the durable and solid construction, this latitude base weighs just under 2.5 lbs., so you won't have to worry about weighing down your portable imaging rig.

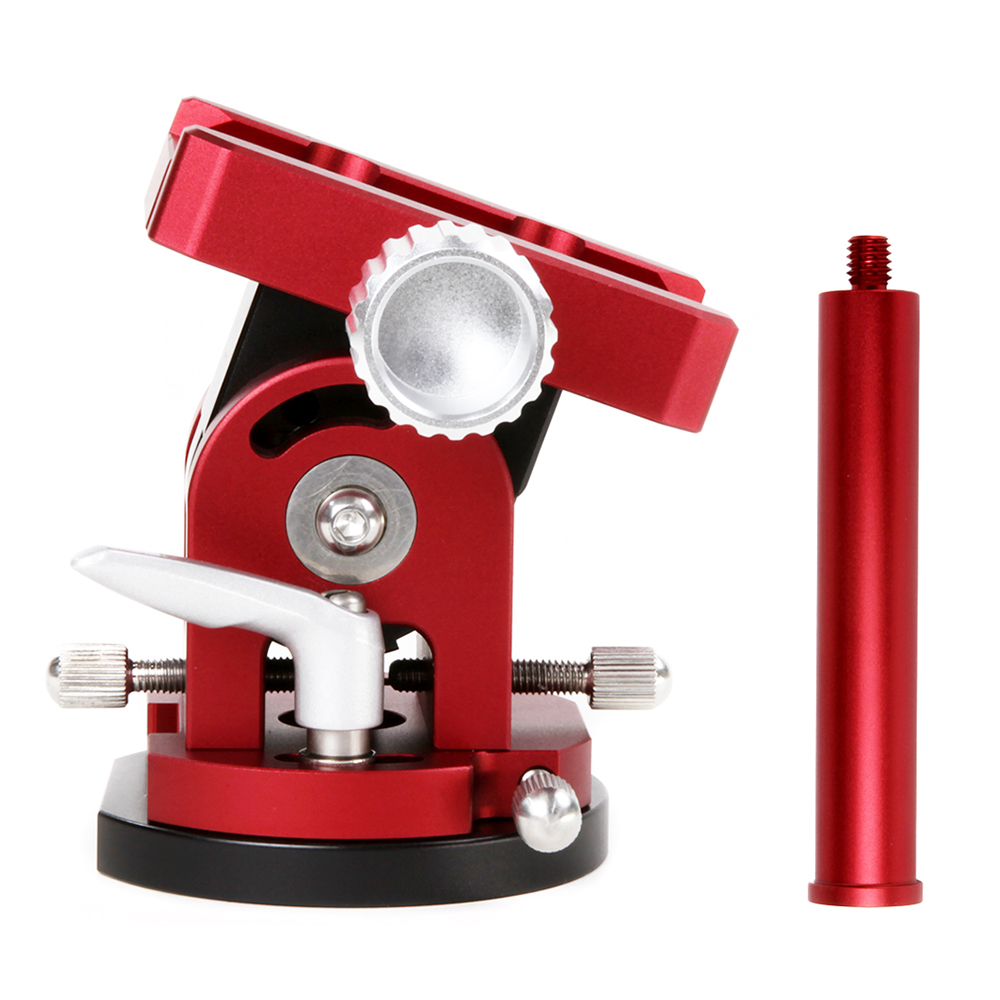

More About the iOptron Counterweight Shaft Extension Bar
This great counterweight extension bar from William Optics provides observers and astrophotographers a chance to counterbalance heavier accessories, rather than using more counterweights. This specific counterweight extension bar is made for the iOptron SkyGuider Pro. Its features a sleek red finish, and it adds an addition 4" to your iOptron SkyGuider Pro counterweight shaft.
Please Note: this extension bar is not compatible with the Sky-Watcher Star Adventurer.
Frequently Asked Questions
What tripods are compatible with this base?

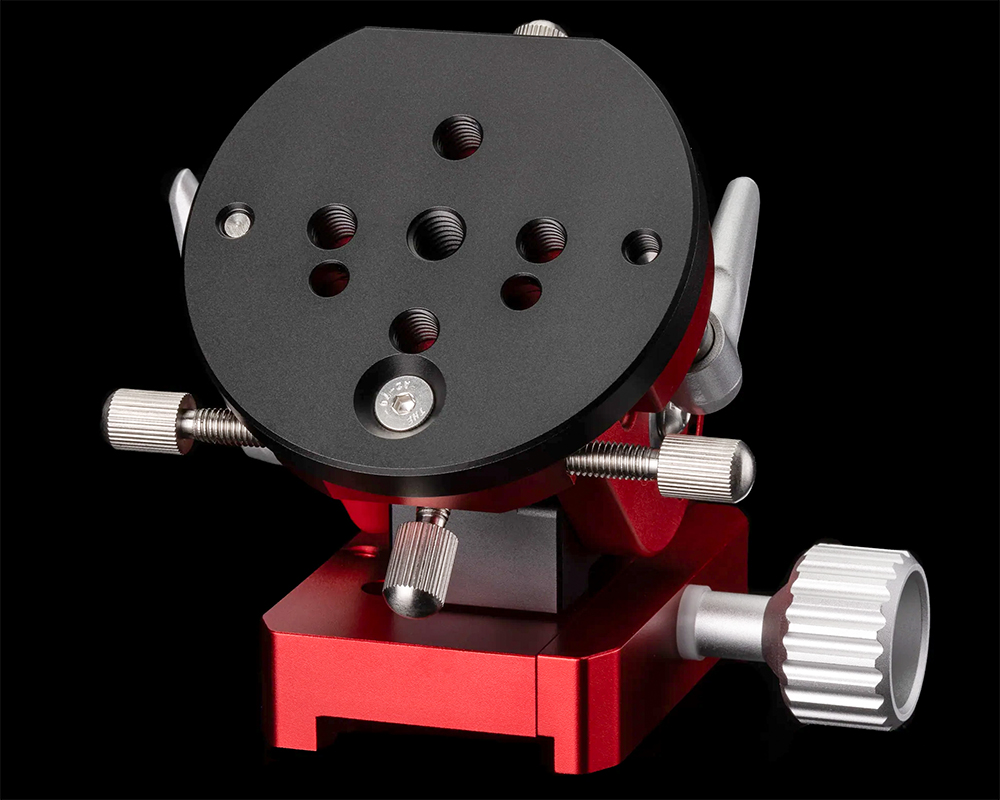

This Low Latitude Vixen Style base is compatible tripods that support 3/8" threaded connections. It also has four M6 threaded connection points spaced at 32 mm. An adapter is necessary for use with tripod that support 1/4-20" threaded connections. Our gear experts recommend the Apertura Compact Aluminum Tripod - Version III, as it's performance and compatibility with popular mounts such as the Sky-Watcher Star Adventurer 2i, iOptron SkyGuider Pro, and other mounts of this weight class and smaller makes it a great option for lightweight imaging rigs.
Is this base compatible with the Sky-Watcher Star Adventurer 2i?
To use this latitude base with a Star Adventurer 2i, you will need to attach the vixen style dovetail adapter included with the pro photo pack. This base is compatible with any star tracker that includes a vixen style dovetail.
