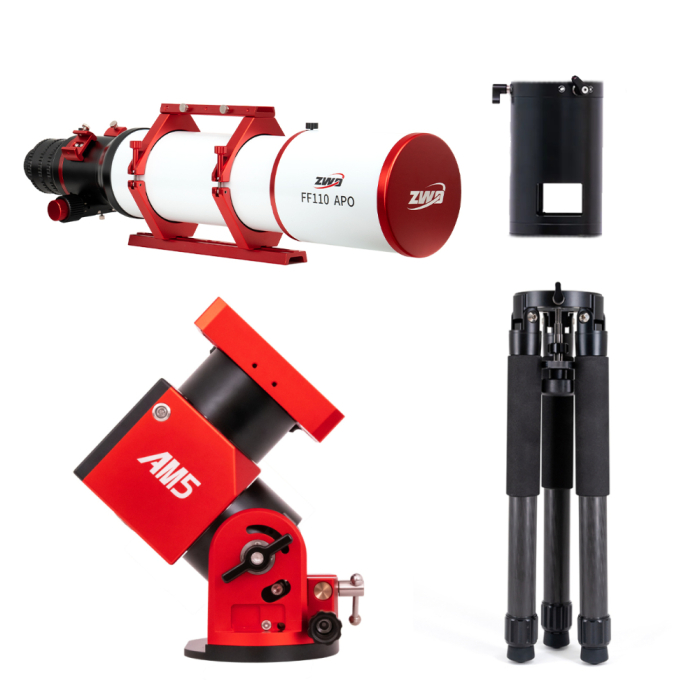

ZWO 110 mm APO Refractor with AM5N Mount
ZWO 110 mm APO Refractor Telescope and AM5N Strainwave Mount Package
Ready to collect stunning detail on the night sky? This ZWO FF110 APO Refractor AM5N package is the ideal solution! Pairing powerful optics with the exceptional tracking performance of the AM5N, this perfect match is sure to take your nights under the stars to the next level. Now for a limited time, enjoy a free ZWO TC40 tripod and PE200 pier extension as well!
The quadruplet lens design of the ZWO FF110 APO Refractor not only provides beautiful detail on the cosmos, it also opens the doors to quality of life features both beginner and experienced astroimagers are sure to appreciate. No backspacing calculations are required, nor is an external field flattener! This simpler approach helps streamline your setup for smoother imaging sessions. In addition to powerful optics, ZWO includes their highly renowned AM5N Harmonic Drive Equatorial Mount Head for smooth, stable tracking on the stars. Its matching sleek red anodized aluminum construction houses mechanical power capable of driving 33 lb. without a counterweight, in footprint weighing just about 12 lb. The perfect grab and go system, this ZWO 110 mm APO Refractor with AM5N Mount bundle helps you explore our universe with ease!
ZWO FF110 APO and AM5N Package At a Glance
|
|
|
|
|
|
Learn More About the ZWO FF110 APO AM5N Package!
The 110 mm APO Refractor and AM5N kit from ZWO delivers sharp, crisp images of the cosmos within a highly portable form factor. Packed with incredible features, it's a wonderful system for imaging our night sky with both precision and simplicity. Read on as we delve deeper into the features of this ZWO bundle below!
Sharp Detail with the ZWO 110 mm APO Refractor
The ZWO FF110 APO features a 110 mm aperture and 766 mm focal length (f/7), offering an excellent balance between portability and performance. Its self-flattening quadruplet design provides a flat field for imaging without the need for an additional field flattener accessory. One ED glass element is incorporated to effectively reduce chromatic aberration for improved color correction and image clarity! With a 44 mm image circle, the FF110 APO fully supports full-frame sensors and a wide range of imaging setups. It delivers sharp star fields with excellent edge-to-edge performance, ensuring consistent image quality across the entire frame. The FF110 APO comes with a photography extension tube with a 2-inch filter thread, along with rear adapters in M48×0.75 and M54×0.75 standards. Also included is a 360-degree rotator, which allows for rotating an attached camera or accessory to the user's desired orientation. The large 3" dual-speed, rack-and-pinion focuser provides 1:10 fine adjustment.

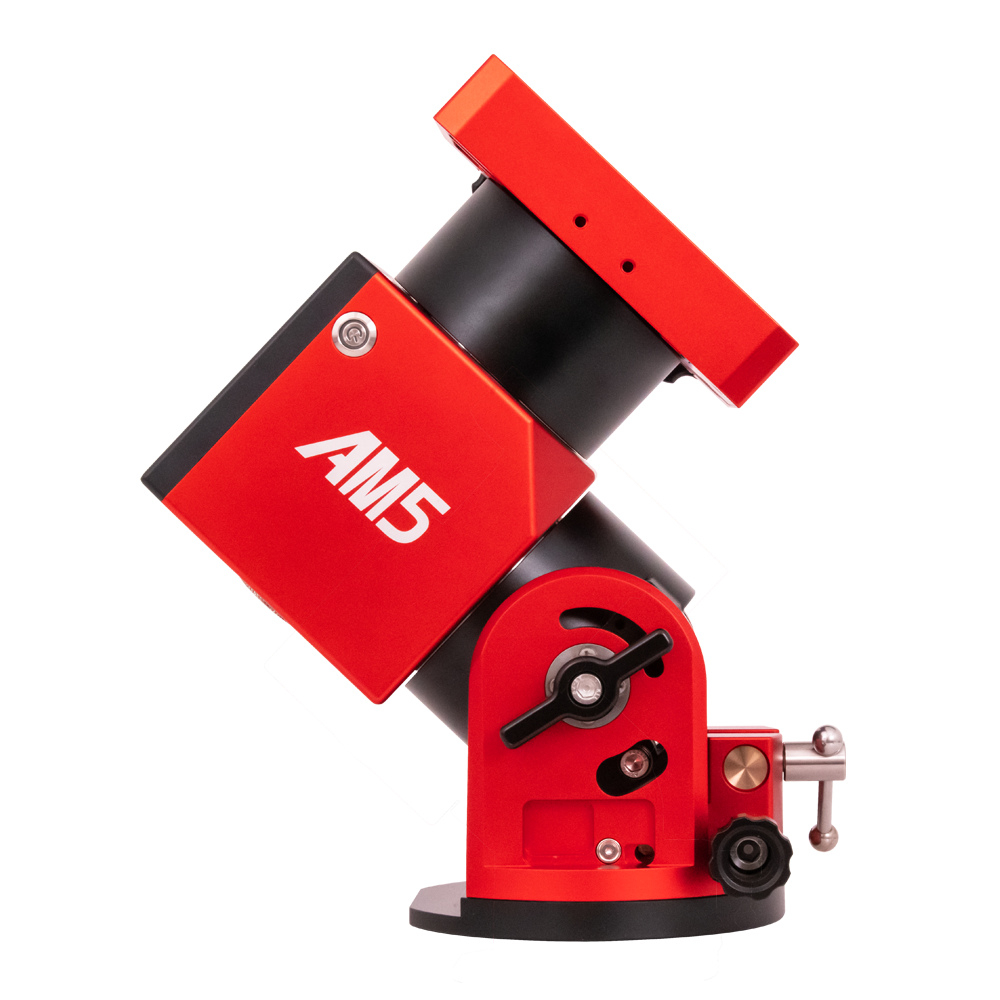

Compact, Yet Mighty. The ZWO AM5N Equatorial Mount
ZWO has designed the AM5N specifically for amateur astrophotographers who are looking for a lightweight, high-quality foundation for their imaging gear that doesn't get in the way. To that end they've updated the incredibly popular original AM5N with Bluetooth connectivity that enables wireless control without disconnecting yourself from the outside world, reduced the periodic error by half, and a cable management solution that helps make cable snags a thing of the past! The same great small footprint, large lifting capacity features are here, with the mount head weighing in at just 12.1 lbs. for 33 lbs. of payload capacity without a counterweight, or 44 lbs. with a user-supplied counterweight installed. With performance and a physical form-factor like this, the AM5N is an excellent companion both in the backyard, on a short trip, or a far away dark site expedition.
Free ZWO TC40 Carbon Fiber Tripod!
Weighing in at 5 lb., this tripod is portable and still maintains a high load capacity of 110 lb. ZWO has built the TC40 tripod's legs from a carbon fiber material, increasing durability, strength, and impact resistance. The upper part of the tripod legs measures 1.5" in diameter and the lower section measures 1.4". The dual-section design provides better stability and rigidity when telescopes and cameras are mounted on the AM5N mount head. The tripod plate head comes with an adapter plate that has three mounting points that match the ZWO AM5N mount head. This ensures that the connection will be very stable and sturdy. Additionally, there is a center 3/8" locking knob that has a range of compatibility. The secure lock reinforces the connection between the mount and the tripod.
Free ZWO PE200 Pier Extension!
This pier extension adds 200 mm to the top of your tripod, providing increased clearance for your imaging train. Made from aircraft-grade aluminum, this pier extension is highly resistant against temperature shifts and wear and tear. Demonstrating this exceptional durability, the ZWO PE200 features a 110 lb. payload capacity. This gives you confidence that even your heaviest gear is safe atop this ZWO pier extension! Weighing just 3.5 lbs., transport is proven effortless.
Frequently Asked Questions
What can I see with the ZWO 110 mm APO refractor telescope?
With the ZWO 110 APO refractor you can capture sights or images of deep sky objects within this field of view such as the Cygnus Wall, the Horsehead Nebula, and the Lagoon Nebula.
Do I need to add a field flattener to my ZWO 110 mm APO refractor telescope?
You do not need to add a separate, dedicated field flattener when using your ZWO APO refractor for imaging, nor do you need to calculate backspacing. This is due to the Petzval design of the refractor.
Is the ZWO 110 mm APO refractor telescope compatible with the ASIAIR Plus?
ZWO has included a dual-purpose handle on the body of the refractor telescope to allow attachment of various accessories such as the ZWO ASIAir Plus WiFi Camera Controller.
How do I attach a camera to the ZWO 110 APO Refractor Telescope?
ZWO has included a photographic extension tube with M48x0.75 and M54x0.75 adapters and 2" filter threads to provide easy attachment to your camera.
What does APO mean?
APO is an abbreviation for apochromatic. Apochromatic is used to describe an optical system that uses a combination of lenses to correct for chromatic aberration.
How do I prevent dew from forming on my optics?
ZWO has included a CNC-machined retractable dew shield to protect against stray light and moisture collection on your lens. It comes with a locking screw to hold it in place throughout your imaging sessions. If you are interested in other types of dew prevention, you can check out our "How to Stop Dew & Frost From Forming on Your Telescope" article.
What are the requirements for the AM5N power supply?
The ZWO AM5N requires 11V-15V with a minimum supply of 3A, though we recommend a 5A supply for the best results. The mount consumes 12V/0.5A in standby, 12V/0.7A during tracking, and 12V/1.2A during GoTo slews. If the input voltage drops below 10.8V, the AM5N will beep, indicating insufficient power. We suggest utilizing the Apertura 12V 5A power supply (sold separately) for stable and reliable power all night long.
What’s the thread size of the AM5 counterweight bar end? Are there any requirements for the bar’s length?
The ZWO AM5N accepts counterweight bars with a thread size of M12*1.75. We offer the official ZWO counterweight bar for the AM5N, with a length of 230 mm. If using a third-party counterweight shaft, ZWO recommends a bar that does not exceed 250 mm.
How do you polar align the AM5N?
The ZWO AM5N Equatorial mount does not come with a built-in polar scope meaning software is required for polar alignment. The ZWO ASIAIR (sold separately) includes polar alignment software, while other platforms such as N.I.N.A. or SharpCap offers polar alignment as well.
How far away do I place the counterweight from the mount head?
With the recommended counterweight of 11 lbs. (5 kg), you must place this weight between 20 to 30 cm away from the mount head. For counterweights of other masses, use the following formula: counterweight mass (kg) × 9.8 × distance along the bar from the mount head (m). The result must be between 10 N·m and 15 N·m.
What's the difference between the AM5 and AM5N?
The ZWO AM5N boasts numerous advancements over its predecessor. For one, the AM5N hauls about 5 lbs. more, bringing the payload capacity up to 33 lbs. Even with the bumped up payload, this new AM5N boasts half the periodic error for improved performance. The base has also been redesigned with a spring tensioning system replacing the azimuth locking knobs for improved polar alignment routines. Bluetooth control is now available enabling operation without disconnection from the internet. Most excitingly, the ZWO AM5N features internal cable management with its powered DEC saddle! Say goodbye to cable snags and enjoy a sleek, streamlined setup. Be sure to check out our full review of the ZWO AM5N for more information.
