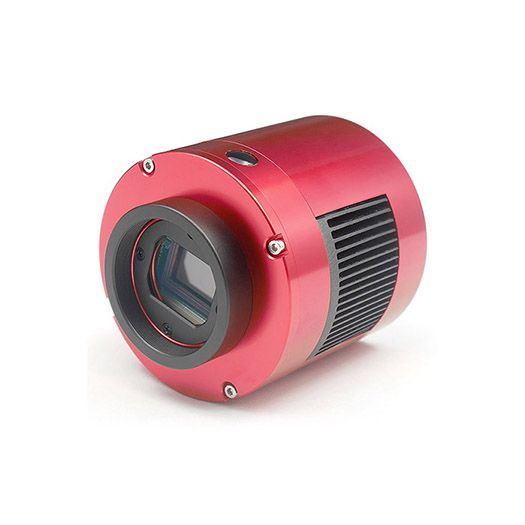

ZWO ASI1600MM Pro USB3.0 Cooled Monochrome Astronomy Camera - Refurbished
About This ZWO Refurbished Product
This item has been professionally refurbished by ZWO, and carries a ZWO 2 Year Warranty which covers repairs in that period. The warranty does not cover replacements. This professionally refurbished item is fully functional. It includes the hardware and accessories, or suitable equivalents, that would have been included with a new item. The item you receive may or may not have factory packaging. This item is in Like New cosmetic condition. Images shown are of new product. This item is eligible for our standard 30 day return policy.
ZWO ASI1600MM Pro Cooled Mono Imaging Camera
ZWO ASI1600 Pro cameras offer excellent astro-imaging performance with low read noise, low dark current, and high dynamic range. Despite a 12-bit ADC, this camera provides 12.5 stops of dynamic range due to its ultra low read noise, an improvement over even the KAF8300.
Four screws are used to seal the ASI1600 Pro's chamber. This design has been confirmed by full testing to be extremely stable. The ASI1600 Pro does not suffer from dew problems and still operates normally even when humidity is high.
DDR Memory Buffer
For better data transfer stability without amp-glow caused by slow speed data transfer during readout using a USB2.0 port, the ASI1600 Pro includes an upgraded PCB board with one 256MB DDR3 memory buffer. This DDR memory buffer is the key difference that separates ASI "Pro" cameras from ASI "Cool" cameras.
USB 3.0 Port & USB 2.0 Hub
USB 3.0 port supplies 5 gb of bandwidth to allow the ASI1600 Pro to run at 14.7 fps in normal 12bit mode, or 19 fps in high speed 23bit mode at full resolution (11.7 MP). For a cooling power supply, ZWO recommends either a 12V at 3A-5A or more DC adapter (2.1*5.5, center positive), or a 9-15V battery.
USB 2.0 HUB links up numerous accessories like a filter wheel, guide camera, and electronic focuser, for easier cable management. The ASI1600 Pro comes with two short 0.5 m USB2.0 cables. An external supply provides the power source when connected.
Cooling System
This camera features a two-stage TEC cooling system for very deep cooling at -40ºC below ambient. An external AC-DC power supply (sold separately) is necessary to power the cooler.
Important Notice Regarding Power: Please be aware that this cooled ZWO camera does not come with a power supply but one is required to run your camera's cooler.
ZWO ASI1600MM Pro Cooled Mono Camera Specifications
- Sensor: 4/3" Panasonic MN34230 CMOS
- Diagonal: 22.2 mm
- Resolution: 16.4 MP
- Pixel Array: 4656 x 3520
- Pixel Size: 3.8 µm
- Maximum FPS at Full Resolution: 23 fps
- Shutter: Rolling
- Minimum Exposure: 32 microseconds
- Maximum Exposure: 2000 seconds
- Read Noise: 1.2e @30db gain
- QE Peak: 60%
- Full Well Capacity: 20ke
- ADC: 12bit
- DDRIII Buffer: 256 MB
- Interface: USB 3.0/USB 2.0
- Adapter: 2"/1.25"/M42x0.75
- Protect Window: AR
- Diameter: 78 mm
- Weight: 14.5 oz.
- Back Focus Distance: 6.5 mm
- Cooling: Regulated two-stage TEC
- Delta T: 40-45 degrees below ambient
- Cooling Power Consumption: 12V at 2A max
- Working Temperature: -5°C - 45°C
- Storage Temperature: -20°C - 60°C
- Working Relative Humidity: 20% - 80%
- Storage Relative Humidity: 20% - 95%
