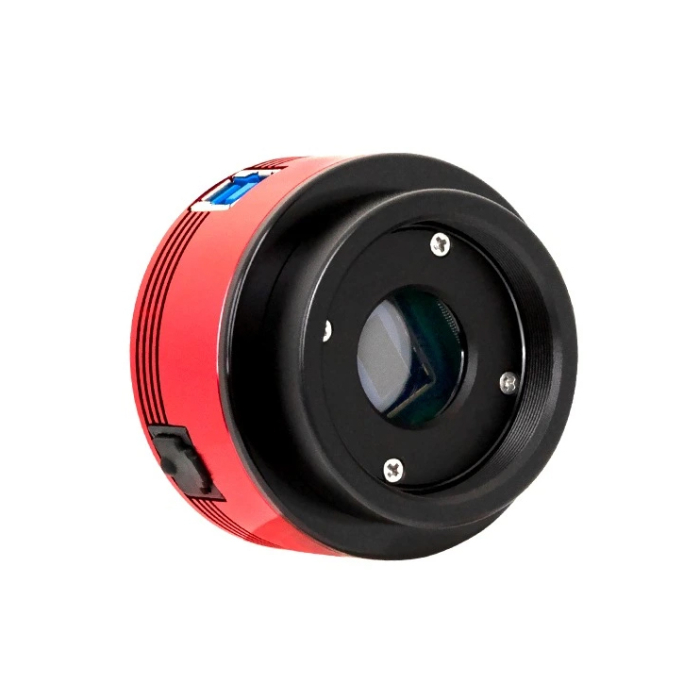

ZWO ASI482MC USB 3.0 Color CMOS Astronomy Camera - Refurbished
ZWO ASI482MC Color Camera
About This ZWO Refurbished Product
This item has been professionally refurbished by ZWO, and carries a ZWO 2 Year Warranty which covers repairs in that period. The warranty does not cover replacements. This professionally refurbished item is fully functional. It includes the hardware and accessories, or suitable equivalents, that would have been included with a new item. The item you receive may or may not have factory packaging. This item is in Like New cosmetic condition. Images shown are of new product. This item is eligible for our standard 30 day return policy.
This color CMOS USB 3.0 camera from ZWO features the Sony IMX482 sensor, with a 5.8 micrometer pixel size and a large full-well depth of 51.5ke. The IMX482 sensor provides about the same resolution as the IMX462, but with four times the sensor size and correspondingly larger pixel size.
The IMX482 sensor measure 11.13 mm x 6.26 mm with a diagonal measurement of 12.86 mm. Low signal-to-noise ratios make this camera particularly suitable for solar, lunar, and planetary imaging.
The ASI482MC features a USB 3.0 port which provides a 5Gb bandwidth to allow up to 82.5 FPS in 10-bit high speed mode or 57.5 FPS in 12-bit normal mode at the full resolution of ~2MP. The USB interface is backward compatible with USB 2.0. The ST4 port allows for connection to auto guiding mount ports for guiding.
Technical Specifications
- Sensor: Sony-IMX482
- Bayer Pattern: R Gr Gb B
- QE Peak: 85% @ 530 nm
- Back Focus Length: 17.5 mm
- Max FPS: 82.5
- Full Well: 51.5K e
- Shutter: Rolling Shutter
- Resolution: 2.07 MP, 1920 x 1080
- Pixel Size: 5.8 µm
- Data Format: RAW8, RAW16, RGB24, Mono8
- Exposure Range: 32 μs ~ 2000s
- Interface: USB 3.0
- Protect Window: AR
- ADC: 12-bit
- Working Relative Humidity: 0-80%
- Supported OS: WIN7/8/10 32/64-bit, Linux, Mac
