150 mm & 250 mm Telescope Mount Pier Extensions for Strainwave Mounts
Apertura 150 mm & 250 mm Pier Extension Set for Strainwave Mounts
Whether you're building an imaging train that needs more equipment clearance, or just need more lift for more comfortable viewing or optimal imaging, the Apertura 150 mm & 250 mm Pier Extension Set for Strainwave Mounts is for you! Designed to work with today's most popular strainwave mounts and the tripod & piers used with them, this kit gives you two levels of extension for one great value. Give your experience a boost now, with this premium kit!
More demanding systems require more from your mount platform. Longer systems can become cramped on a typical tripod, limiting your ability to capture higher targets without impacting the tripod legs. This is where an extension comes in, moving your telescope up further away from the tripod legs and presenting a thinner profile to help alleviate these collision concerns. This kit from Apertura brings you an extension that is made for the New Wave of mount technology at an incredible value, outfitting your strainwave mount with two different levels of extension to tailor this to your specific setup. Maximize lift with the almost 10" extension, or maintain a lower profile and add just a bit of extension with the almost 6" tube. With a 3/8"x16 center mounting stud and M6 bolts included and a bottom plate that accepts this same hardware, this kit works with most of the popular strainwave mounts and tripods in use today. The top plate can be easily detached for quick equipment set up and take down, and the entire kit is made from black anodized aluminum for lift that is sturdy yet light.
Apertura Pier Extension Set At a Glance
|
|
|
|
|
|
Mount & Tripod Compatibility
The Apertura 150 mm & 250 mm Pier Extension Set is compatible with a wide range of strainwave mounts and strainwave tripod solutions to ensure that regardless of which ecosystem you're in, you can still give your astrophotography rig an edge. The table below contains equipment confirmed to be compatible with this pier extension set. Tripods or mounts using a 3/8"x16 center mounting stud, or the common three M6 at 30 mm radius bolt-through pattern, can also utilize this extension kit. For a premium combination that gives you the strength to shoulder and stabilize just about any strainwave mount and clear most imaging trains, all while retaining the portability that strainwave mounts and their tripods are known for, we strongly recommend pairing this pier extension set with the Apertura Heavy Duty Carbon Tripod for Strainwave Mounts!
| Brand | Equipment |
|---|---|
| ZWO | Mounts: AM3, AM3N, AM5, AM5N, AM7 | Tripods: TC40 Carbon Fiber Pipe Tripod |
| Apertura | Tripods: Tripod for Strainwave Mounts, Heavy Duty Carbon Tripod for Strainwave Mounts, Anchor Pier for Strainwave Mounts |
| Sky-Watcher | Mounts: Wave 150i, Wave 100i |
| iOptron | Mounts: HEM15, HAE16C, HAZ31, HAZ46, HAZ71 | Tripods: 40 mm Carbon Fiber Tripod for HAZ Mounts |
| Pegasus Astro | Mounts: NYX88, NYX101 |
Learn More About the Apertura 150 mm & 250 mm Pier Extension Set
If your strainwave system needs a boost, then this kit is the right choice for you! With two extensions and all the hardware you need, combined with premium construction and an easy to install and use design, this kit provides an incredible value compared to other options available today.

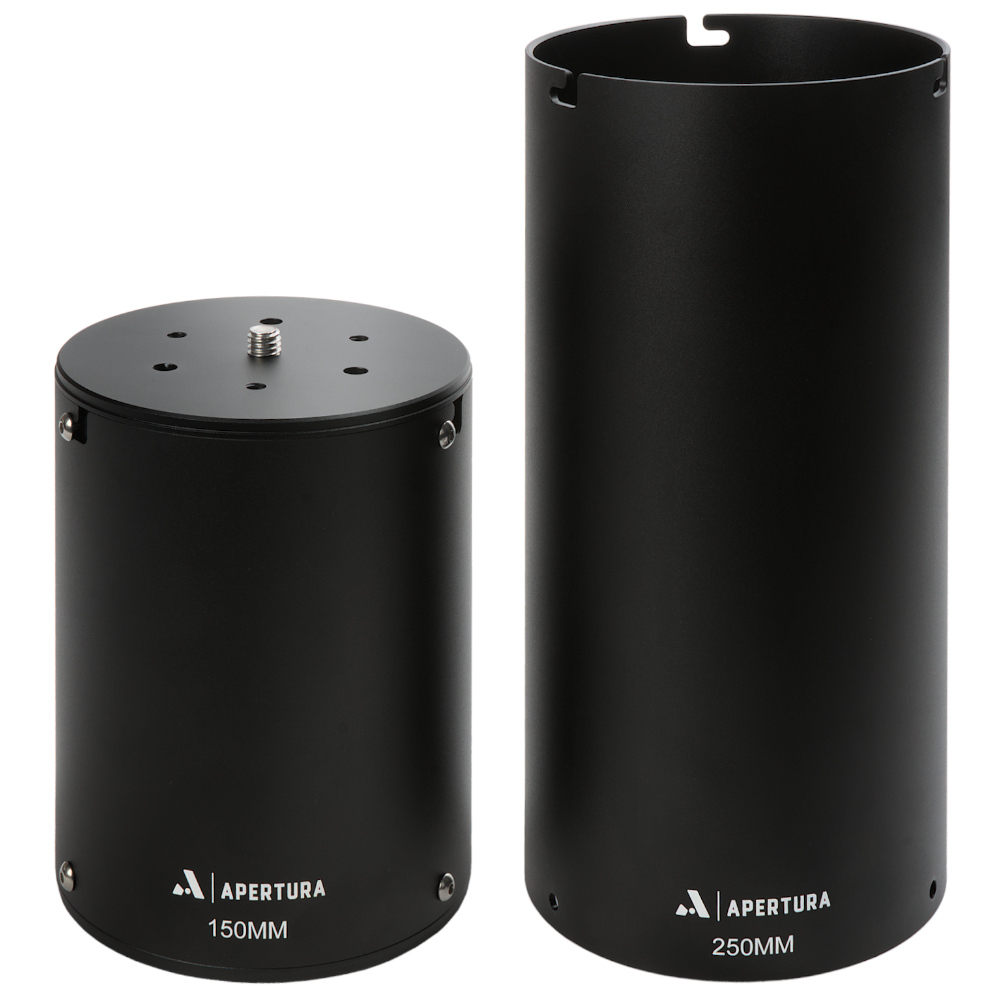

Two Levels of Extension
This kit includes two
different extension bodies, allowing you to tailor your rig to your needs!
These extensions will help your system see above obstacles like fences and
hedges, add more clearance for long setups tracking high objects, or bring a
visual setup up higher for a more comfortable observing experience. Use the

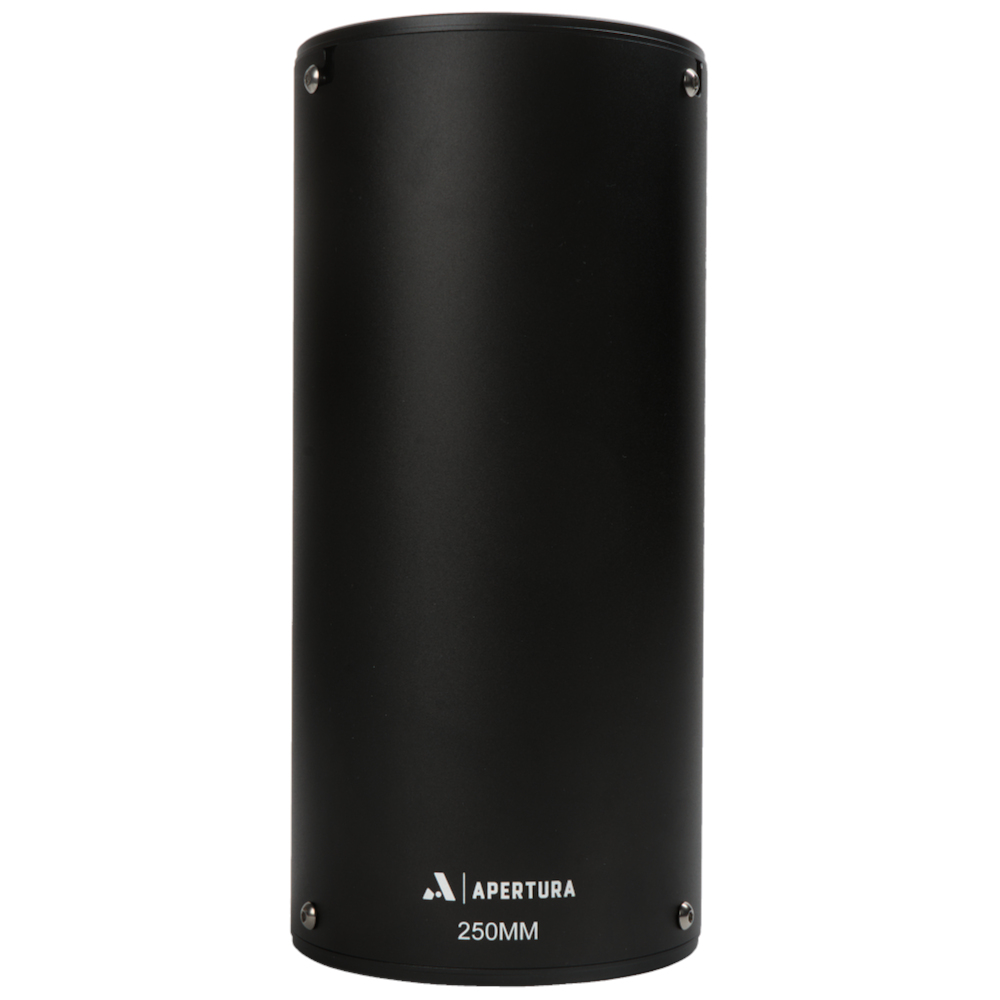

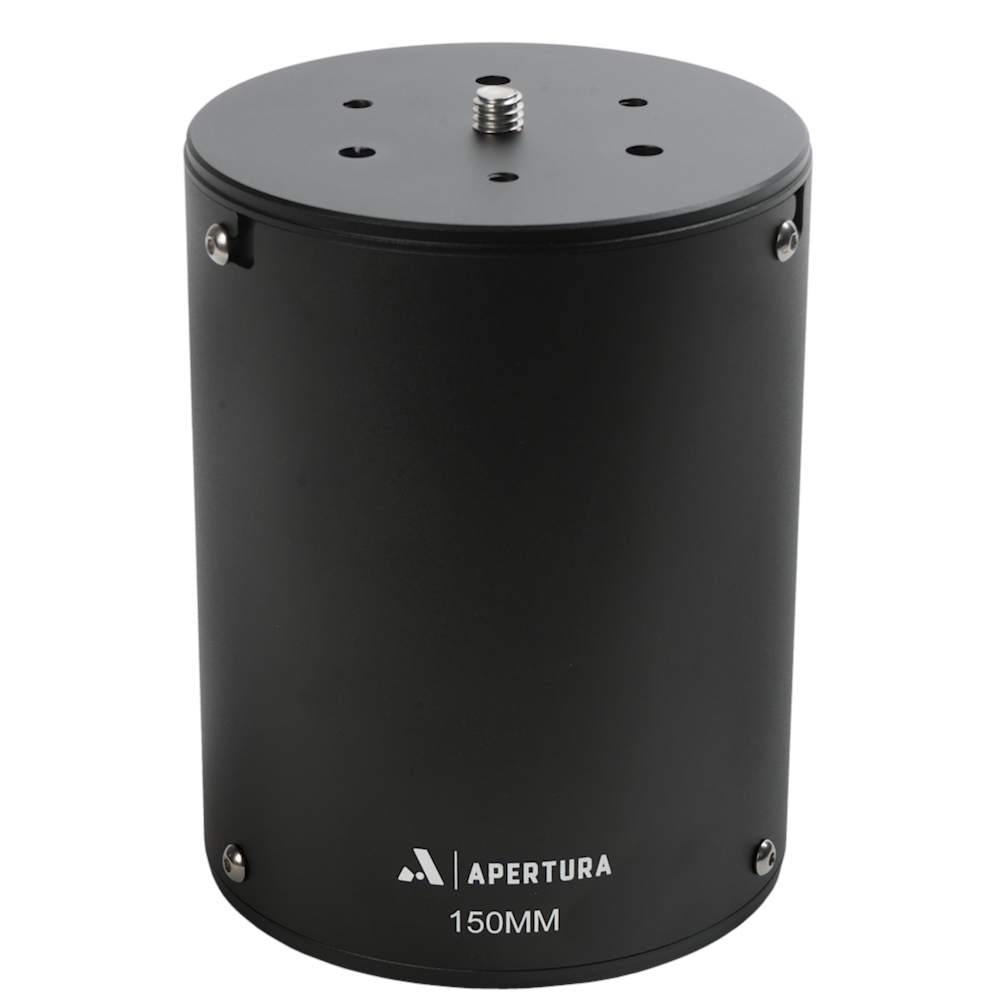

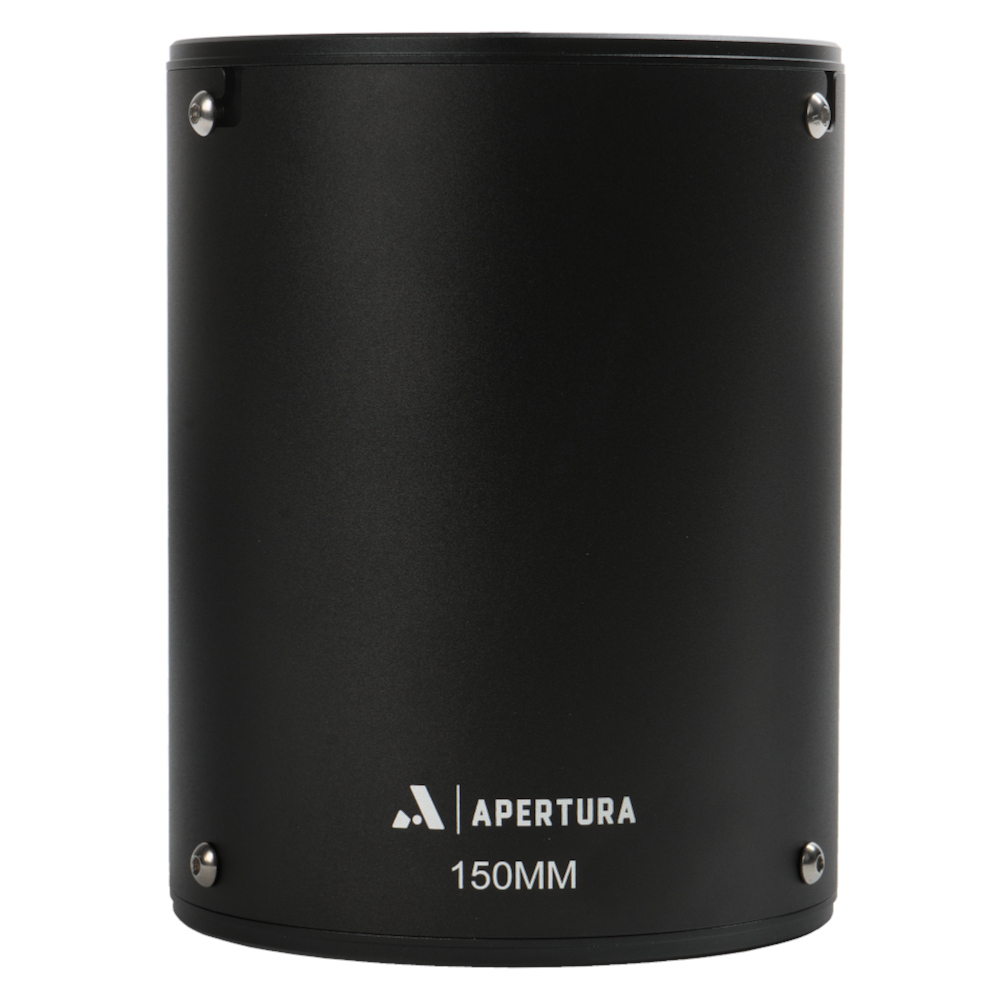

150 mm extension when you need only a small boost, or swap in the 250 mm for
a big increase in equipment and obstacle clearance.
Please Note: Adding any type of pier extension to your system will
inherently increase the side-to-side load placed on the tripod or pier
from wind or bumps, which accordingly may affect rigidity,
capacity, and resistance to tipping with some gear. Be sure to assess the
stability of your system with the pier extension installed prior to use.
Extensions can not be stacked.
Premium Construction
The Apertura 150 mm & 250 mm Pier
Extension Set features aluminum body segments and mounting plates for light,
yet rigid, pier extension solution. These have been black anodized for a
sleek and durable finish that synergizes with just about any mount and
tripod! The top plate is designed to quickly install or uninstall by simply
loosening three set screws and rocking the plate over and up, meaning that
you can easily set up and break down your system.

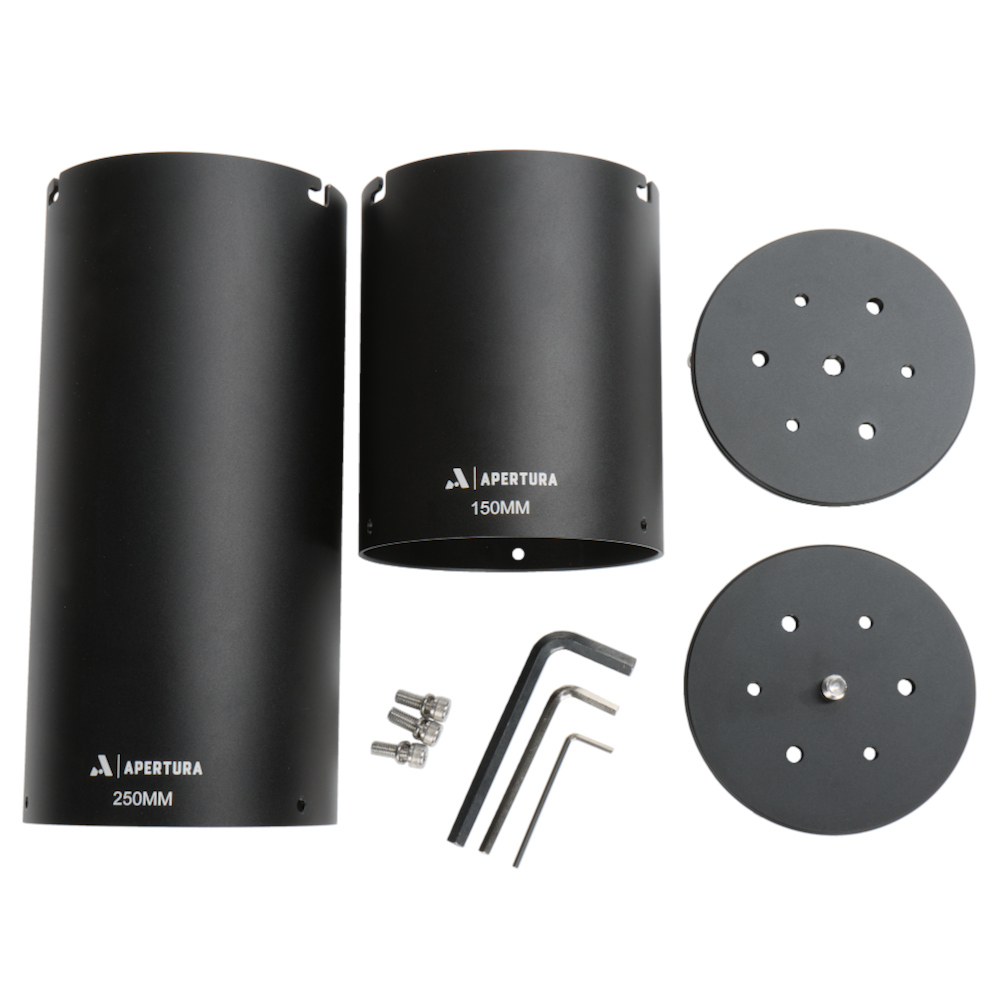

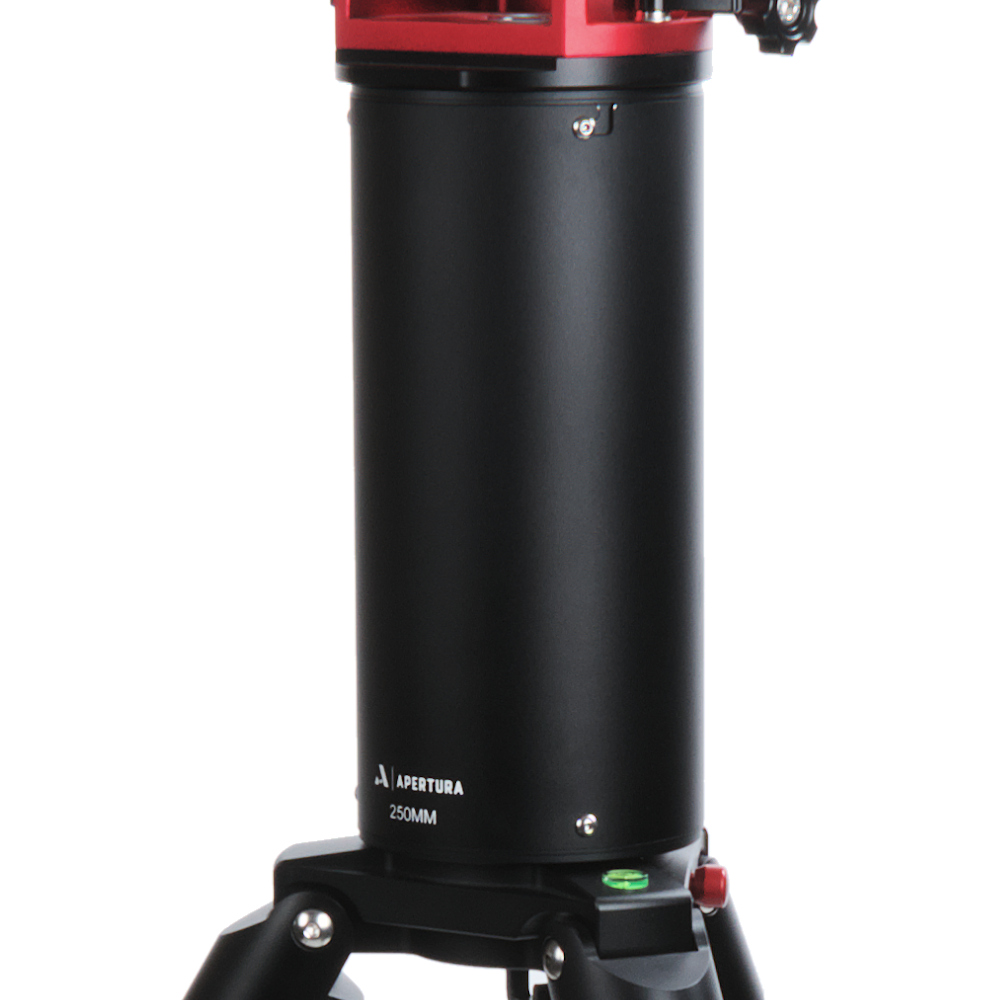

Easy Installation
Upgrading your strainwave compatible
tripod or pier & strainwave mount with this kit is simple, with all the
tools and hardware you need for common installation included. Simply undo
the three set screws holding the bottom plate to the body, and either thread
this onto the 3/8"x16 stud on your tripod or connect it with the tripod's M6
bolts. Then install the extension tube of your choice, locking it in place
by reinstalling the three screws. Thread the 3/8"x16 bolt preinstalled in
the top plate into your mount, securing it with the included M6 bolts if
desired. Start the screws in the top plate, drop the screws down through the
three slots cut in the top of the body tube, then rotate and secure in place
by tightening the screws the rest of the way.
Comes with the Apertura Absolute Warranty!
The
Apertura Absolute Warranty provides two years of coverage against product
defects. After the initial two-year warranty expires, this product qualifies
for Apertura's Three-Year Accident Replacement Program. In addition, the
Apertura Absolute Warranty is transferrable! Download a copy of the
Apertura Absolute Warranty
for more information on this program, how to make a claim, and why it is
important to keep your original receipt and the product's original boxes &
packaging!
Frequently Asked Questions
How does a pier extension help with equipment clearance?
When your mount is tracking objects near Zenith, your telescope and
imaging/observing train will be pointed almost perpendicular to the ground.
This can put sufficiently long system on a collision course with the tripod
legs as they spread away from the center. A pier extension simply moves the
tripod legs further away, increasing the safe range of motion your telescope
has.
What is the benefit of a pier extension over a traditional pier or
tri-pier?
Traditional piers require permanent/ semi-permanent installation, which
may not be suitable or viable for all locales/ living situations. Tri-piers
strike a great balance between the clearance of a pier and portability of a
tripod, but can still be sizeable and may feature more clearance than you
need. A pier extension on the other hand can give you a good amount clearance
when needed, and broken down/ removed for transport or when you want to use a
less demanding system. They also allow you to accommodate a longer system
later in your journey without requiring an entirely new platform purchase, and
can compliment the max height of a pier, tri-pier, or tripod when you need a
bit more lift to clear obstacles or put your gear at a more comfortable
height.
