Apertura Wide Angle Eyepiece Kit with 2" SCT Quartz Diagonal - SWADIAKIT

shipping truck Free shipping
SKU: APT-SWADIAKIT

Apertura Wide Angle Eyepiece Kit with 2" SCT Quartz Diagonal

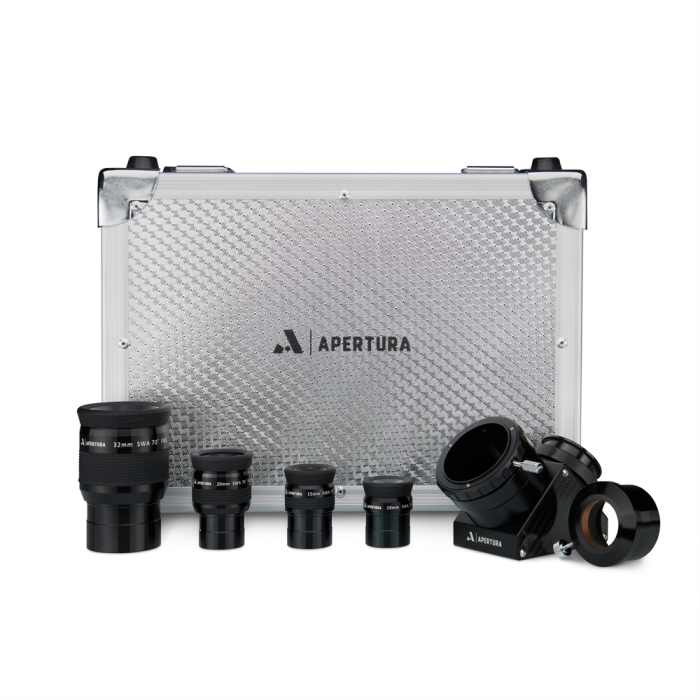

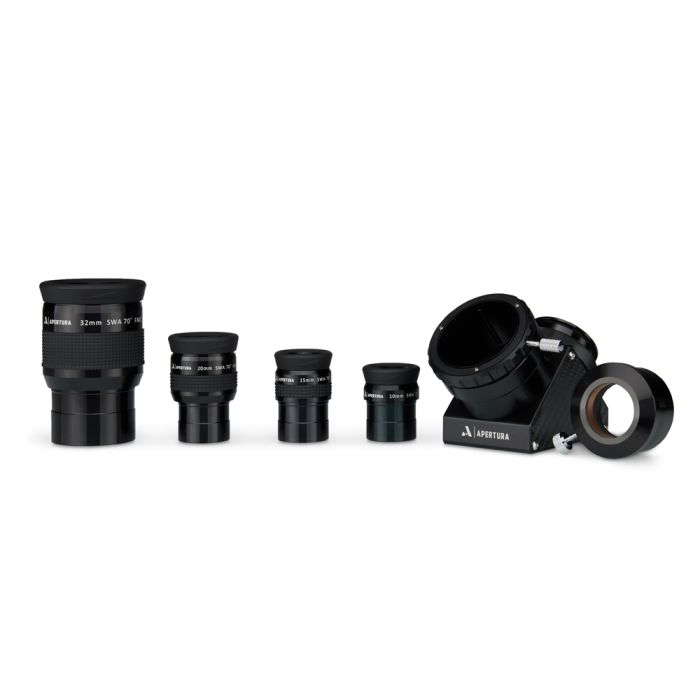

Apertura's Super Wide Angle eyepieces are now available in a kit! Buying this kit from High Point Scientific provides observers with four eyepieces and one SCT diagonal. This Apertura kit includes:

  • 2" SCT Twist Lock Carbon Dielectric Mirror Diagonal with a 2" to 1.25" Adapter
  • 10 mm Super Wide Angle 1.25" Eyepiece
  • 15 mm Super Wide Angle 1.25" Eyepiece
  • 20 mm Super Wide Angle 1.25" Eyepiece
  • 32 mm Super Wide Angle 2" Eyepiece

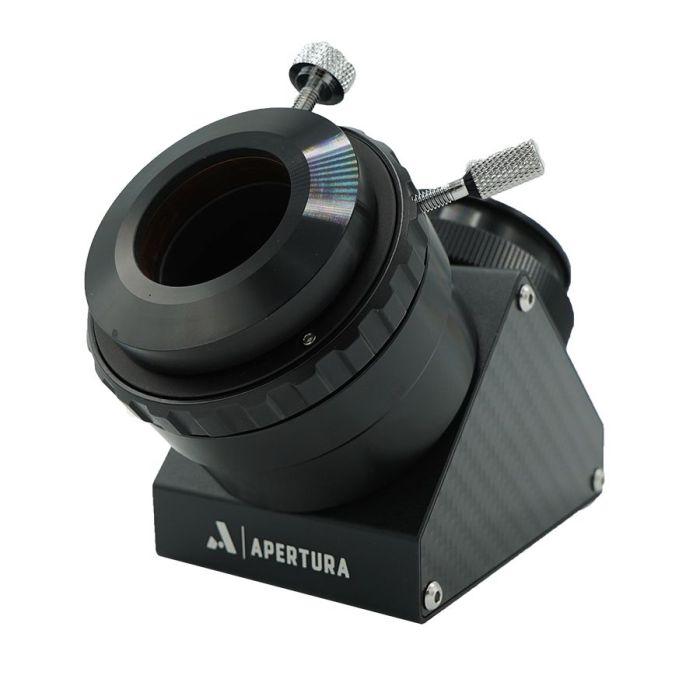

About the Apertura 2" SCT Twist Lock Carbon Dielectric Mirror Diagonal

This 2" Twist Lock SCT Dielectric Mirror Diagonal from Apertura is a diagonal that will make you glad you added to your SCT setup!

The body of the 2" diagonal, which is carbon fiber plated, comes complete with a 2" to 1.25" adapter which has a non-marring brass compression ring to hold your 1.25" eyepieces firmly in place. The adapter is threaded for 2" filters. The nose piece of the diagonal has an SCT thread so you can easily attach the diagonal to your SCT scope.

Apertura has designed this diagonal with a twist lock mechanism and set screws, that can be utilized when the adapter is not in place, to firmly hold your 2" eyepiece.

The dielectric coatings on the 1/12th wave BK7 mirror have 99% reflectivity across the visible spectrum.

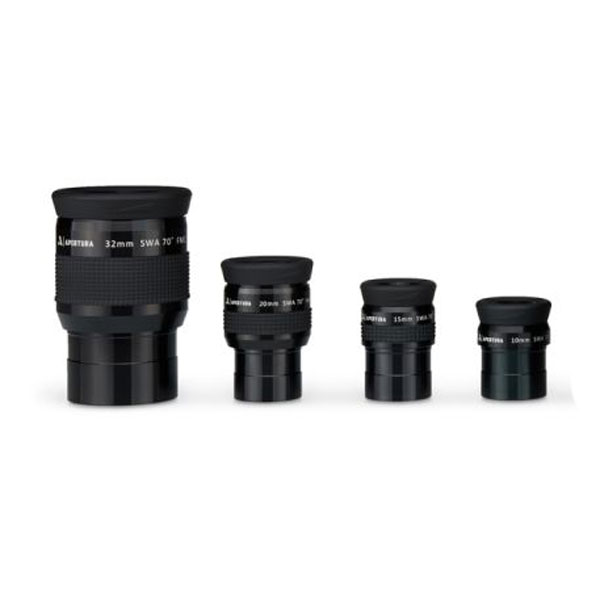

About the Apertura Super Wide Angle Eyepieces

Amatuer astronomers know how important eyepieces are for their telescope set up. The telescope is the lock and the eyepiece is the key which unlocks the wonders of the night sky. The Super Wide Angle eyepieces from Apertura are high performing and aesthetically pleasing eyepieces that you will be happy to take on your night sky adventures.

The eyepieces are fitted with foldable fitted eyecups, blackened edges, and anti-reflection threads that will boost contrast. The metal eyepiece barrels are threaded to accept filters (not included).

Apertura 10 mm Eyepiece Specifications

  • Focal Length: 10 mm
  • Barrel Size: 1.25"
  • Eye Relief: 10 mm
  • Apparent Field of View: 70°
  • Lens Elements: 5
  • Lens Coatings: Fully Multi-Coated with Blackened Edges
  • Height: 2.02"
  • Width: 1.38"
  • Weight: 2.9 oz

Apertura 15 mm Eyepiece Specifications

  • Focal Length: 15 mm
  • Barrel Size: 1.25"
  • Eye Relief: 13 mm
  • Apparent Field of View: 70°
  • Lens Elements: 5
  • Lens Coatings: Fully Multi-Coated with Blackened Edges
  • Height: 2.36"
  • Width: 1.39"
  • Weight: 3.6 oz

Apertura 20 mm Eyepiece Specifications

  • Focal Length: 20 mm
  • Barrel Size: 1.25"
  • Eye Relief: 16 mm
  • Apparent Field of View: 70°
  • Lens Elements: 5
  • Lens Coatings: Fully Multi-Coated with Blackened Edges
  • Height: 2.73"
  • Width: 1.39"
  • Weight: 4.2 oz

Apertura 32 mm Eyepiece Specifications

  • Focal Length: 32mm
  • Barrel Size: 2"
  • Eye Relief: 24 mm
  • Apparent Field of View: 70°
  • Lens Elements: 5
  • Lens Coatings: Fully Multi-Coated with Blackened Edges
  • Weight: 14.4 oz

This Product Comes with the Apertura Absolute Warranty!

  • Two-Year Warranty against product defects.
  • Three-Year Accident Replacement Program that begins after your initial 2 year warranty expires.
  • Your Apertura Absolute Warranty is transferable.

Download a copy of the Apertura Absolute Warranty for more information on this program, how to make a claim, and why it is important to keep your original receipt and the product's original boxes & packaging!
