Pegasus Astro FlatMaster Neo 120 Flat Field Illumination Panel
Capture Perfect Flats with this Pegasus Astro FlatMaster Neo 120!
Providing uniform illumination for telescopes up to 120 mm in diameter, the Pegasus Astro FlatMaster 120 Neo helps you capture high-quality flat frames for peak image calibration! This premium LED flat-field generator offers adjustable brightness from 0% to 100%, ensuring a custom fit for just about any setup. This is particularly useful when imaging with filters, as specific brightness levels can be saved per filter for streamlined calibration frame capture. Crafted with care and durable in design, the Pegasus Astro FlatMaster is a must-have for superb astroimages!

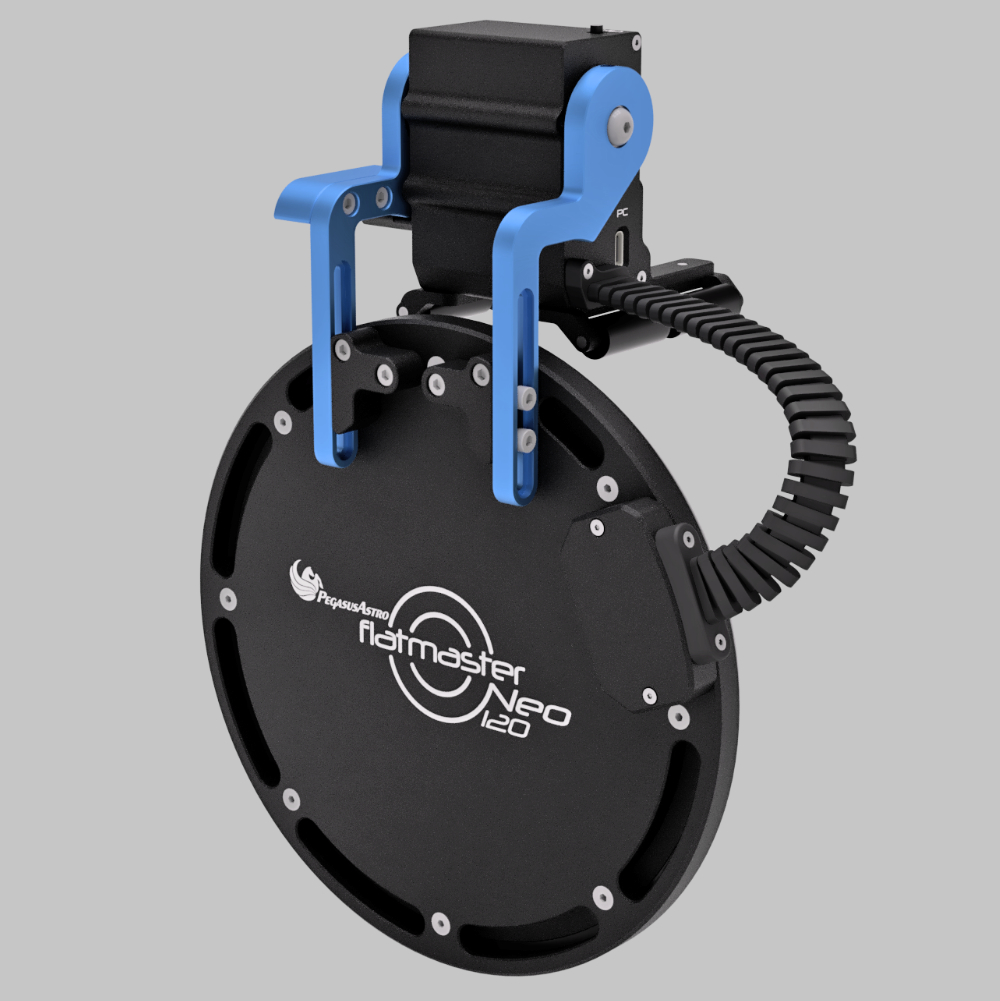

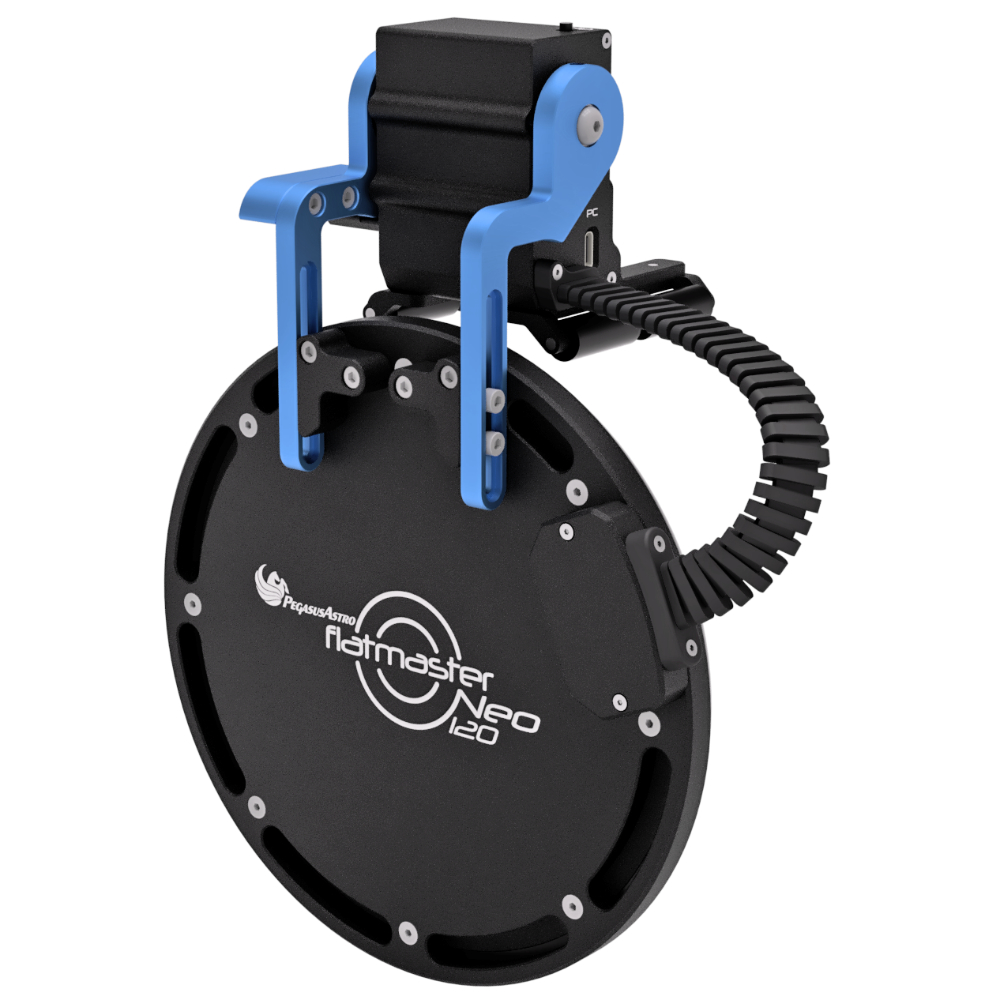

The entire body of this Pegasus Astro FlatMaster Neo is made with lightweight, aircraft-grade aluminum for exceptional durability, and features an adjustable lid that can be positioned between 0° and 270°. In addition, benefit from convenient inclusions such as a built-in dew heater, integrated temperature and humidity sensors, and its own WiFi hotspot. When not in use, this FlatMaster Neo can double as a handy cover against dust and moisture for your telescope. This is thanks to the specialized silicon flange, offering a tight seal around your optical elements. Only one USB Type-C cable is needed to power and control this accessory, and its ASCOM compliance offers compatibility with a host of third-party platforms!
Quality Crafted and Built to Perform
The Pegasus Astro FlatMaster Neo 120 ensures your flat frames are of the utmost quality. Crafted with robust aluminum, adjustable in nature, and housing several unique feature such as a built-in light sensor, this flat-field generator is a welcome addition to your astroimaging kit! Read more below!
Solid Construction

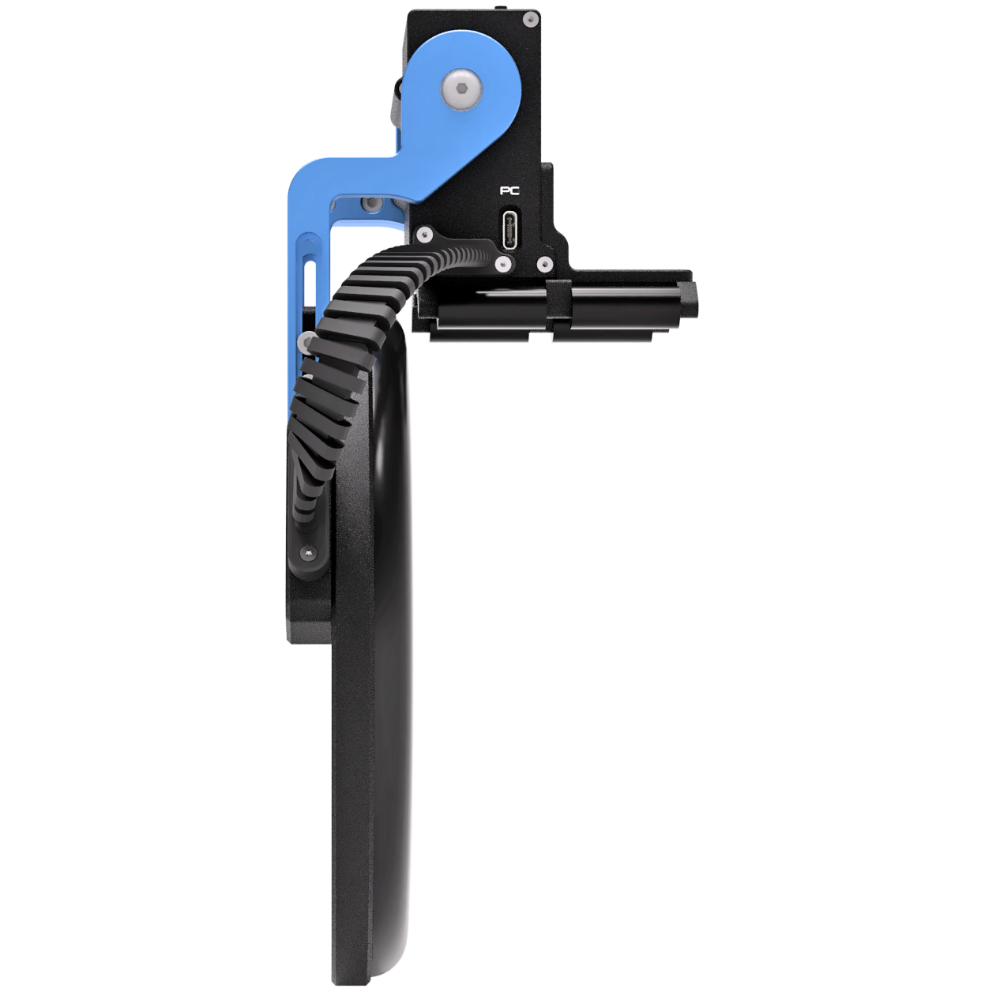

Fitted with an adjustable lid, orient this Pegasus Astro FlatMaster Neo from 0° to 270° for perfect positioning! Also, there’s no need to worry about collisions, as a custom maximum opening angle can be set within software. Operation can be done remotely or with the onboard manual button for streamlined control. This lid accommodates telescopes with a maximum diameter of 120 mm (4.7”) for use with a host of imaging rigs.
Adjustable Brightness

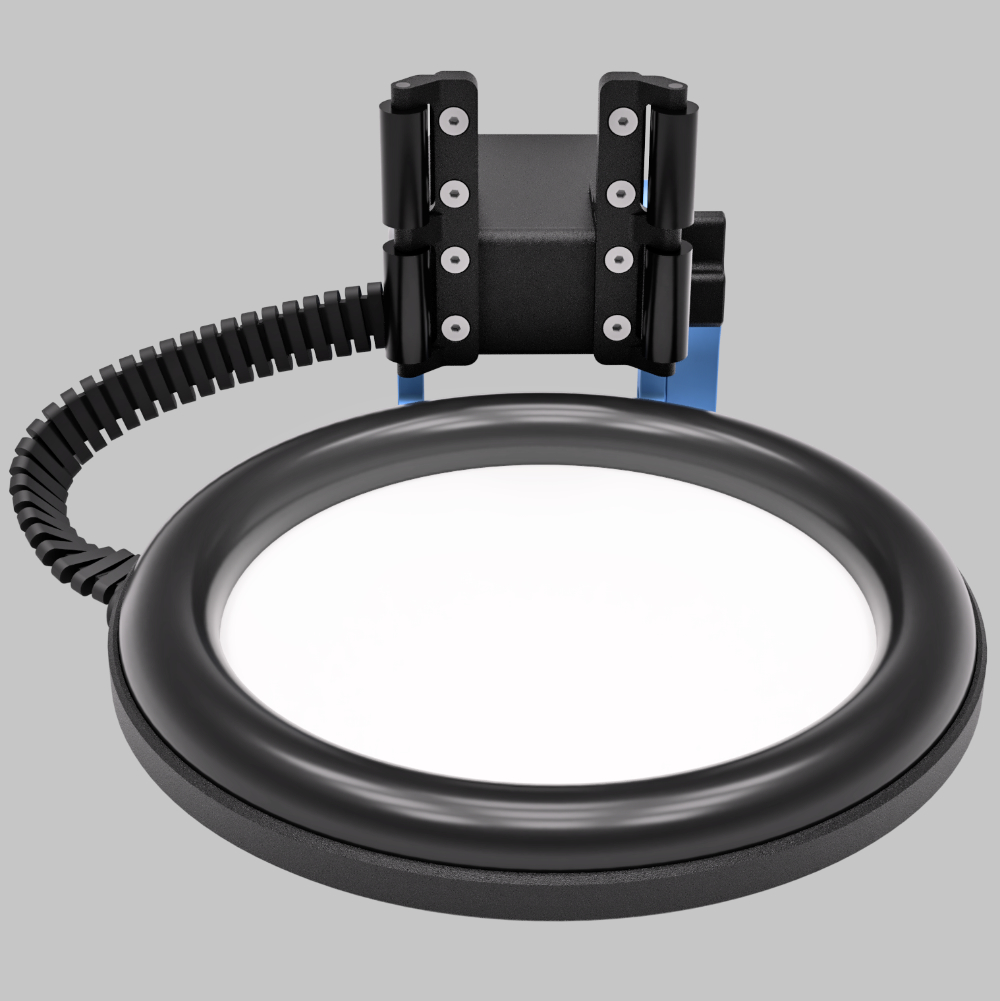

With the Pegasus Astro FlatMaster Neo there is no need to fumble with adding sheets of paper or white linens between your scope and your light source when capturing flat frames, this all-in-one flat-field generator offers adjustable brightness to help you find optimal illumination! Light is provided by internal LEDs, offering brightness levels from 0-100%. Even when used with narrowband filters with slim bandwidths, the Pegasus Astro FlatMaster Neo easily supports short exposures (2-3 seconds at f/7) thanks to its wide range of brightness levels.
Oustanding Build Quality

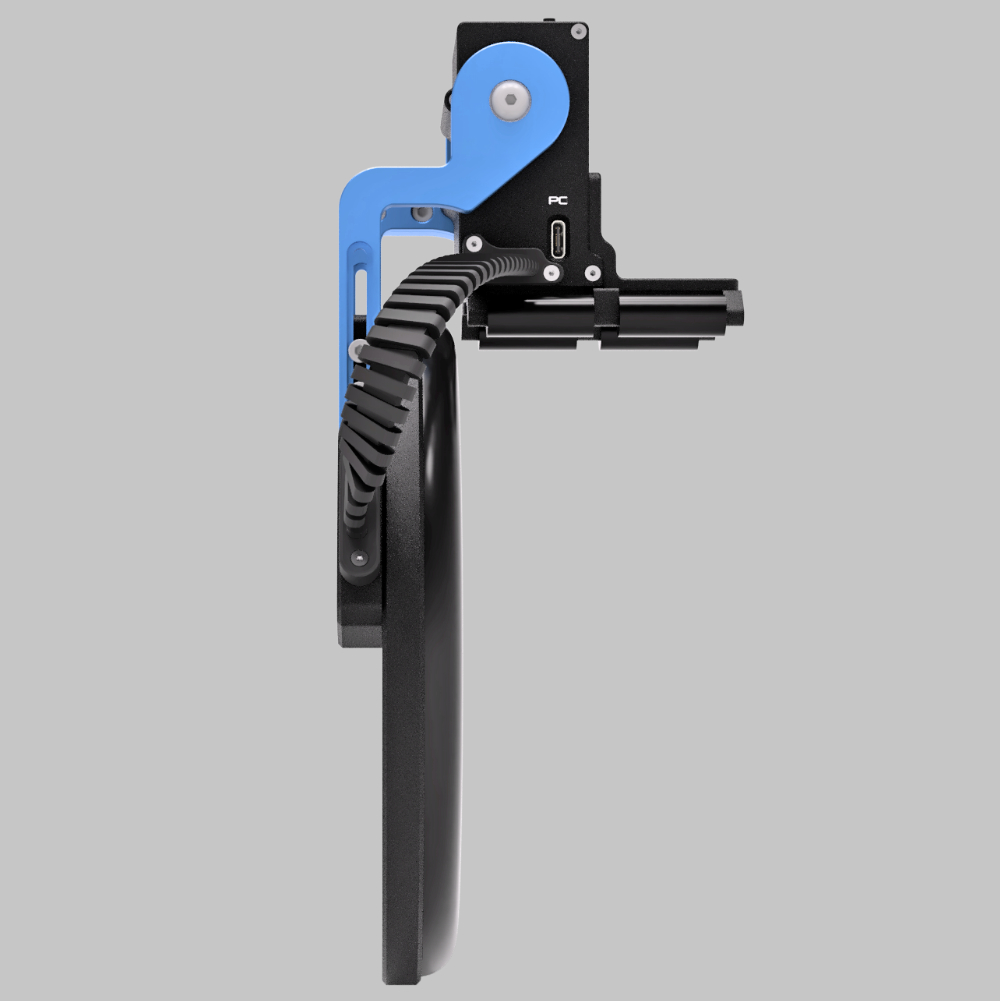

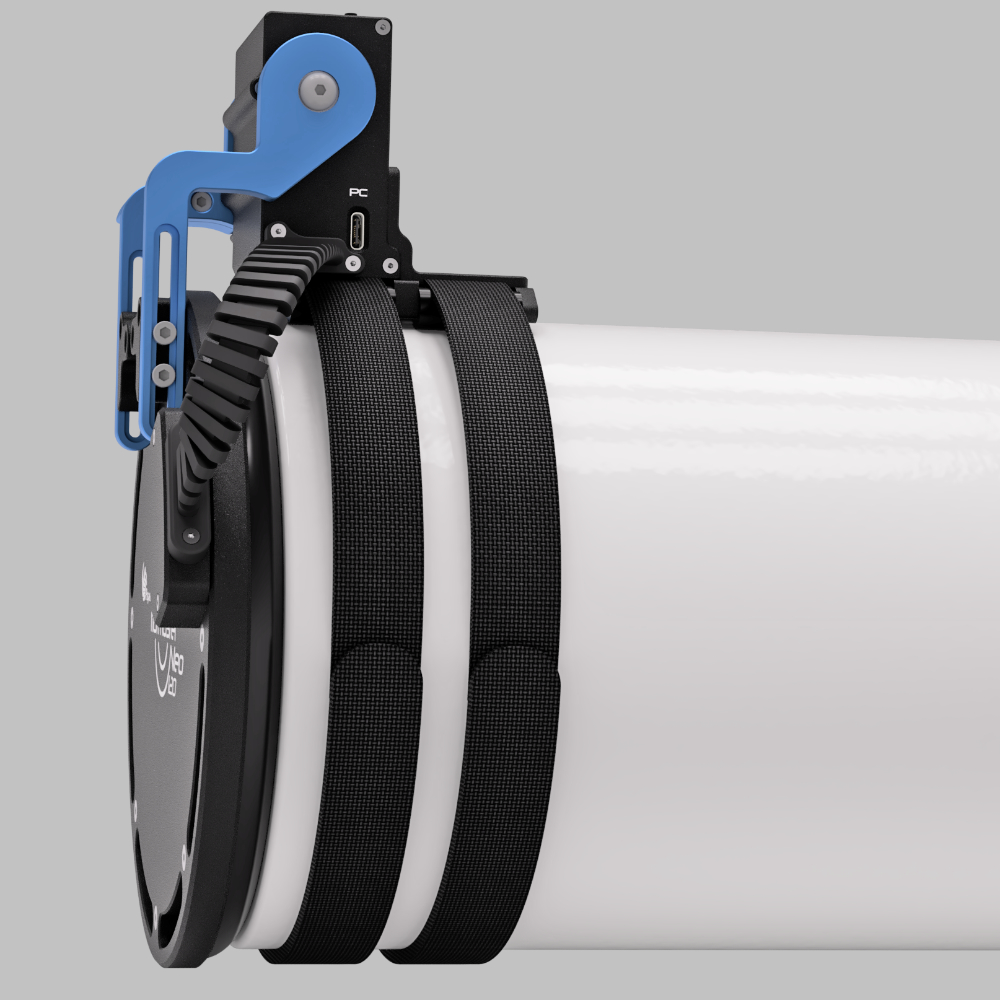

Say goodbye to flimsy, unstable flat field generators, the body of this Pegasus Astro FlatMaster Neo is crafted with aircraft-grade aluminum! This premium material will ensure quality for years to come. A specialized silicon flange on the inside of the lid provides a tight seal for your 120 mm diameter telescope. This flange prevents light, dust, and moisture from entering your optics, acting as a robust cover for your scope during storage. If using within a shared observatory, the silicon flange helps prevent light from disrupting neighboring astrophotographers’ imaging sessions.
Key Inclusions for Next-Level Automation
On the device panel, an integrated dew heater warms your optics just enough to prevent dew from forming, ensuring no moisture gets trapped between the lid and your telescope before the lid is closed. This smart addition works in tandem with the onboard temperature and humidity sensors, adjusting the heat based on the calculated dew points. This feature can be disabled for manual control of the dew heater if desired. Also built-in is a light sensor, closing the lid automatically during sunrise.
Multiple Means of Control

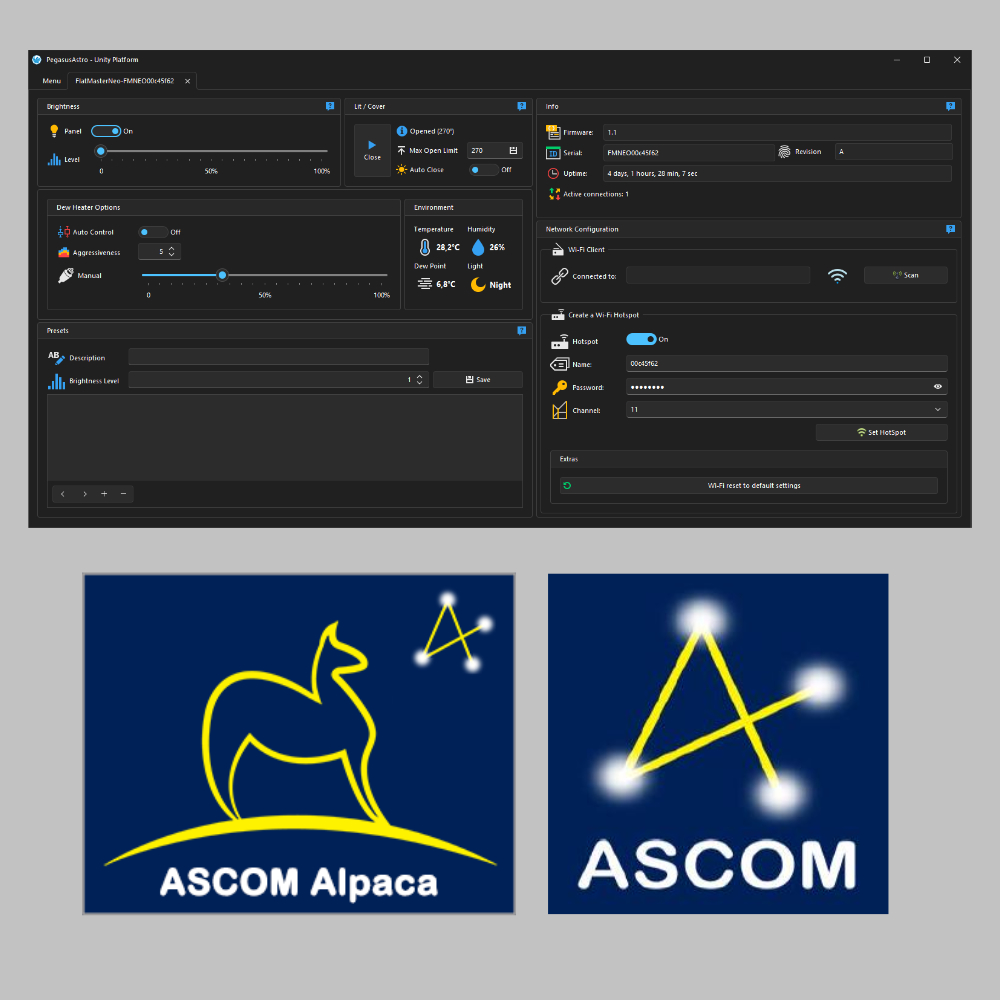

Fitted with built-in WiFi, control to your Pegasus Astro FlatMaster Neo with connection to its hotspot or as a client on an existing network. The Pegasus Astro Unity Platform is a great choice for operation, while the ASCOM 7 and ASCOM Alpaca support enables use with a wide range of third-party software. Just one USB Type-C cable is needed for both power and PC connection, helping you keep your cable management nice and tidy!
