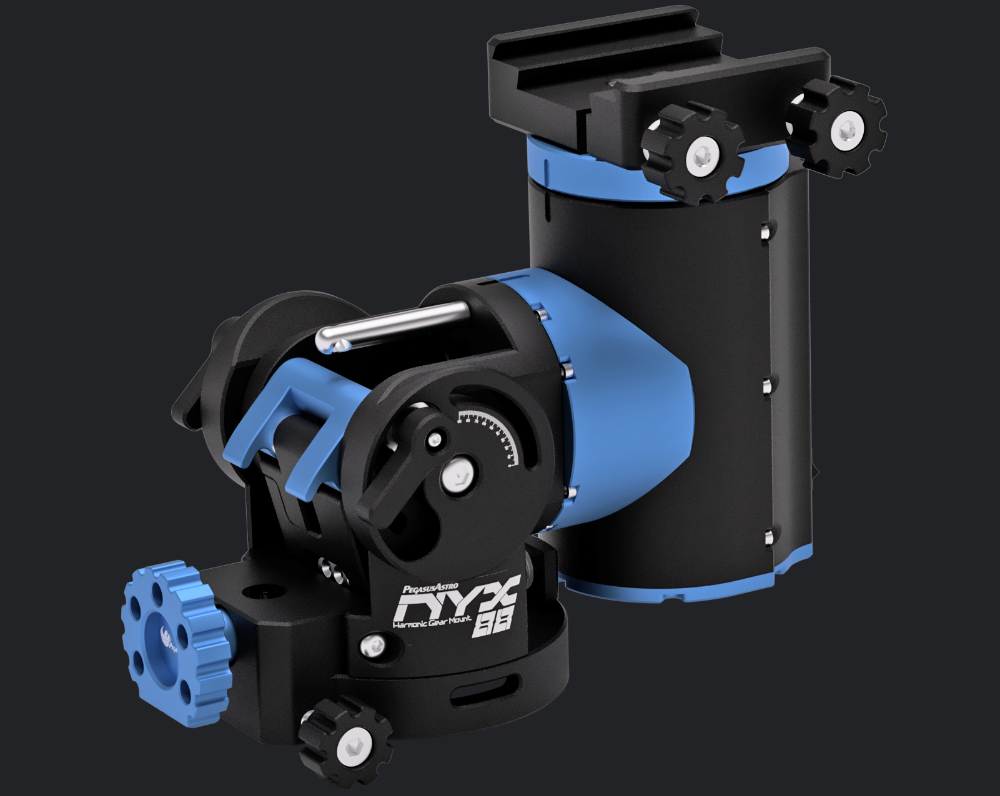

Pegasus Astro NYX 88 Harmonic Gear Mount
A Top-Quality, Reliable Mount from Pegasus Astro
Introducing the latest addition to the NYX series of harmonic equatorial mounts, Pegasus Astro delivers the NYX-88! Compact in stature, yet powerful in performance, this small, capable mount offers an impressive payload capacity within a portable package. No matter if you enjoy traveling to dark skies, or are seeking a high precision mount for backyard use, this Pegasus Astro NYX-88 is the perfect choice for any astronomy enthusiast.
Featuring an impressive 2.8 weight-to-payload ratio, this strain wave NYX-88 mount weighs just 11 lbs. and supports an incredible 30.9 lbs.! Harmonic drives in both axes mean backlash is non-existent, and the internal gearing system delivers exceptional torque even at max payloads. Whether you plan to utilize this mount for astrophotography, visual astronomy, or both, the dual EQ/Alt-AZ design allows an effortless swap between equatorial or altazimuth tracking modes, and comes with a low-profile dual Vixen-Losmandy dovetail saddle for use with a plethora of telescopes. This feature-packed mount is equipped with internal encoders in both axes for automatic homing, built-in safety mechanisms, an additional 12V output port, and plenty more! The aircraft grade, CNC machined aluminum alloy 6061 body is anodized in an attractive black and blue, delivering impressive durability within a sleek, polished frame. Engineered for excellence, the Pegasus Astro NYX-88 ensures reliable, flawless performance for years to come!
Safety is Key!
Understanding the importance of keeping your equipment safe, Pegasus Astro has assembled this NYX-88 with numerous safety mechanisms to help bring you peace of mind during your nights of observing. On the RA axis, safety limit encoders help prevent accidental collisions with the tripod as well as the possibility of internal cable snags. How does it work? Once a certain limit is reached, tracking and slewing are halted—in-turn protecting your equipment. Also, the RA axis features a power-off brake to keep your gear from toppling over during instances of sudden power loss. In the case of accidental reversed voltage or battery polarity, Pegasus Astro has you covered! The reverse voltage polarity safety feature aids in preserving the integrity of the mount’s internal electronics, helping to bolster the longevity of this NYX-88.
Dependable, & Well-Equipped for Performance
With its high precision strain wave gears, large weight-to-payload capacity, and numerous useful additions such as built-in Wi-Fi, Pegasus Astro has you set up for success. These features, and plenty more, make this NYX-88 the perfect companion for those seeking top-tier quality within a compact, manageable mount. Read more about how this Pegasus Astro NYX-88 is sure to take your astronomy experience to new heights!
31 lb. (14 kg) Payload, Strain Wave Gear Technology

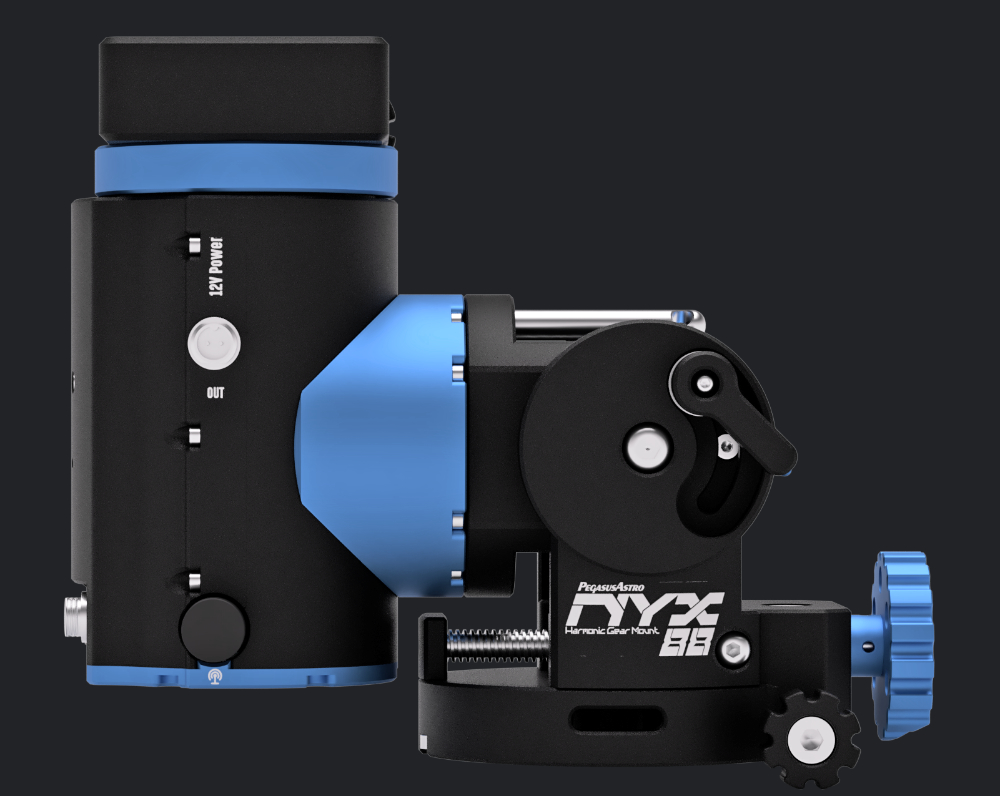

While only weighing 11 lbs. (5 kg) itself, this small, yet mighty, NYX-88 can carry equipment up to 30.9 lbs. (14 kg). Wanting to bump up the max payload capacity? Not a problem! The addition of a user supplied M12 threaded counterweight shaft and counterweights increases the payload capacity from ~31 lbs. to 44 lbs. The high torque internal motors and backlash-free strainwave gearing technology in both axes are to thank for this outstanding weight-to-payload ratio. To enhance performance even further, the NYX-88 mount features a combined stepper motor and belt drive. This results in an incredible 0.15 arcseconds of resolution for remarkably smooth tracking and minimal periodic error. The subarcsecond precision is ideal for astrophotography applications, delivering sharp stars and crisp detail within the captured frames. Not only is this Pegasus Astro NYX-88 perfect for astroimaging, but take advantage of its high performance for visual astronomy as well. As a dual EQ/Alt-AZ mount, easily toggle from equatorial tracking to altazimuth tracking for stunning views of your favorite celestial objects.
Extensive Software Compatibility

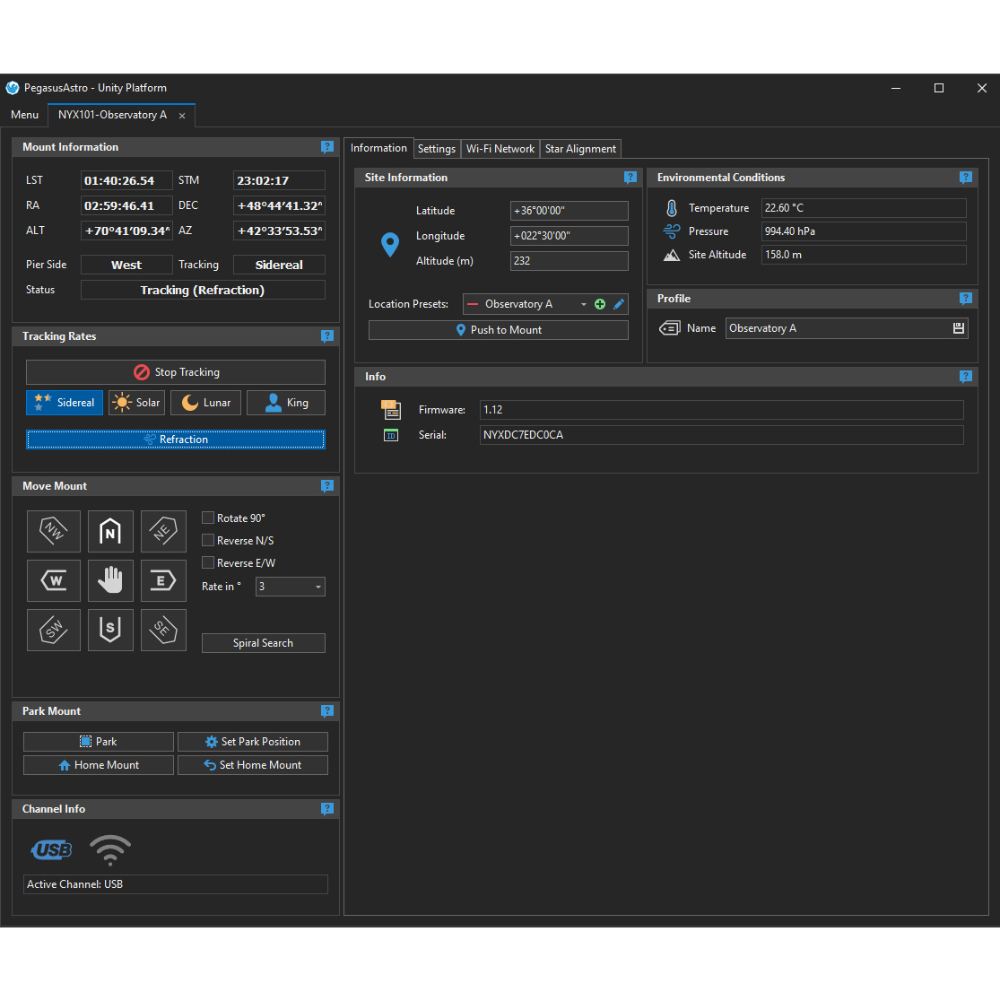

The Pegasus Astro NYX-88 comes fitted with built-in Wi-Fi as well as a USB 2.0 port. Utilize the emitted Wi-Fi signal for hand-held control via Sky-Safari, or connect your PC through Wi-Fi or USB for operation with numerous software frameworks. This mount is compatible with ASCOM 7, ASCOM Alpaca, and INDI software applications. This means you can utilize your favorite third party image capture software, such as N.I.N.A., Astro Photography Tool, SharpCap, and more! Or, you may choose to utilize the Pegasus Astro Unity Platform. Toggle tracking rates, park the mount, set site information, and perform many other functions through this software. Also, this Pegasus Astro NYX-88 offers LX200 compatibility, allowing use with LX200 devices right out of the box.
Power & Ports

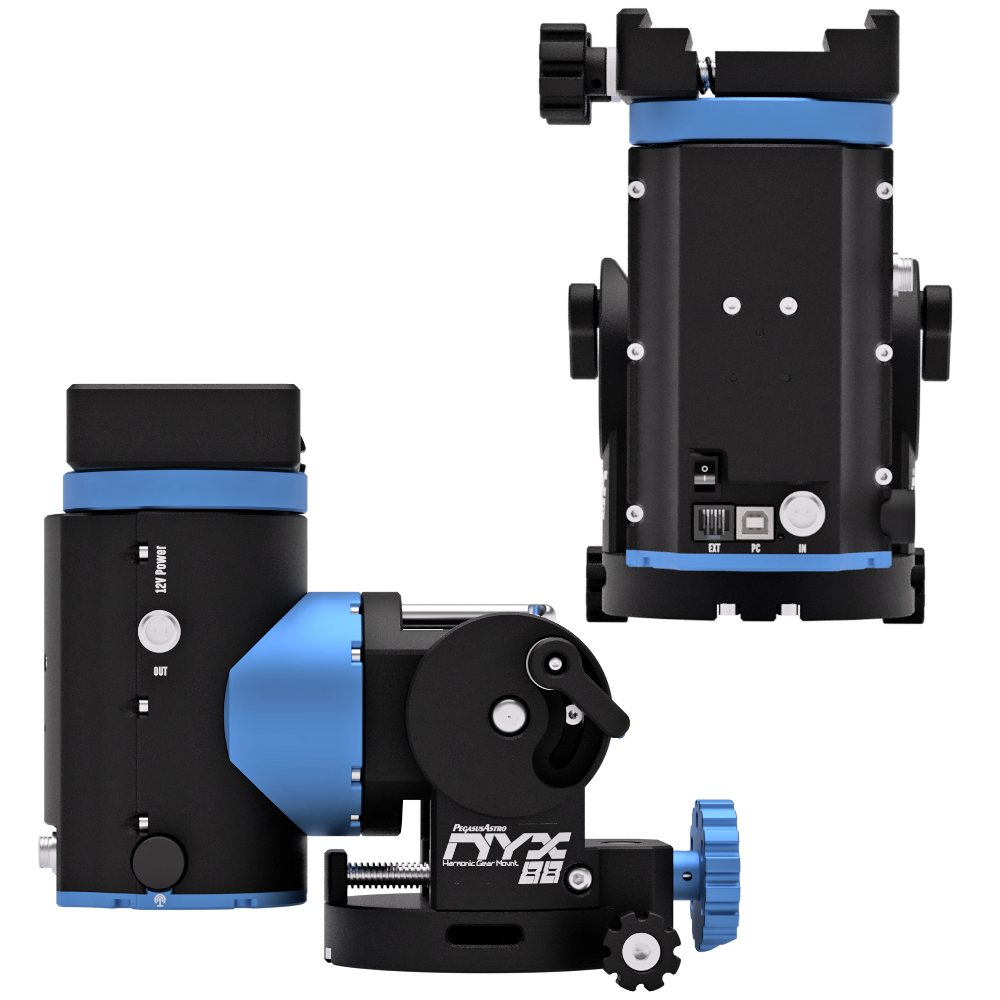

On the rear of the RA axis, you will find a 12V DC GX-12 power port, a USB-B 2.0 port for PC control, and a ST-4 guide port for connecting to an autoguiding setup or a user-supplied Pegasus Astro NYX hand controller. To power this mount, Pegasus Astro has included a 12V / 5A power supply with a GX12 jack to get you out under the stars in no time. Only 0.6 amps are needed for tracking, while a rated 2 amps are drawn during slewing. To provide heightened convenience, the side of the mount houses an additional GX-12 DC output port. This port supplies up to 8A of power to your equipment riding atop this NYX-88.
Software-Assisted Polar Alignment
Unlike most German equatorial mounts, harmonic gear mounts do not include an internal polar scope. As such, accurate polar alignment must be achieved with the help of software. Utilize the built in Wi-Fi or the onboard USB 2.0 port for software assistance from Sky Safari, SharpCap, the ASIAIR, and plenty more! You may also utilize the QHY PoleMaster Electronic Polar Scope (not included), which this Pegasus Astro NYX-88 features optional adaptation for.
Ideal For Backyard Observing and Portability
As a tiny, 11 lb. equatorial mount, this compact Pegasus Astro NYX-88 is perfect for on-the-go imagers, as well as for those looking to simplify their backyard rigs! Effortlessly pack up this little mount in its included carry case for trips to dark skies. Not only this, but the built-in Wi-Fi and absence of counterweights heightens this mount’s portability even more. For backyard observing, take advantage of the 31 lb. payload for telescopes that are more difficult to travel with. You also have the option to increase this payload to an incredible 44 lbs. with the addition of a counterweight shaft and counterweights (not included). Easily connect this mount to your laptop through the included Wi-Fi or onboard USB port for operation with your favorite image capture software. With features like these, this Pegasus Astro NYX-88 earns out High Point Scientific Mount Classification Badge New Wave Harmonic!
Please Note: Pegasus Astro states that their Unity software suite currently does not work with Windows machines equipped with the Snapdragon line of CPUs.
