Pegasus Astro Scops OAG Motorized Off-Axis Guider

Free shipping
SKU: PGA-PEG-SCOPSOAG
$646.72

Ask an Expert
expert photo

Pegasus Astro Scops OAG Motorized Off-Axis Guider

  • Specialized for remote operation
  • No external controller needed
  • One cable operation
  • Compatible with ASCOM focus drivers or standalone software

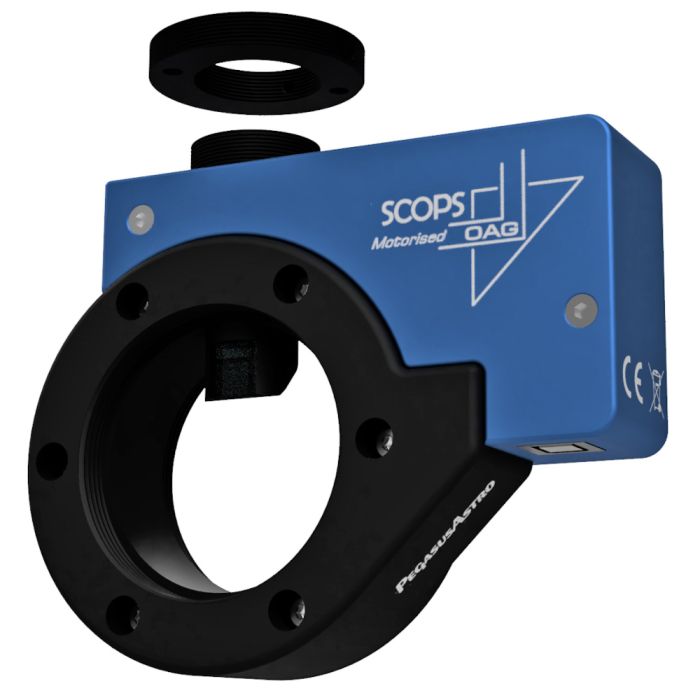

The Pegasus Astro Scops motorized off-axis guider (OAG) is designed for remote use, allowing for precision guide camera focus adjustment. Compatible with standalone software or ASCOM focus drivers, this off-axis guider makes guiding your EQ mount a breeze! With no external controller required, the Scops motorized off-axis guider contains all electronics in its body. A single USB port provides both power and control of the guider. A stepper motor provides precision control of the focus position.

The large mirror measures 10 mm by 10 mm and is fully multi-coated and anti-reflection to provide full illumination for the guiding camera. Prism height adjustment allows better illumination for the guiding camera's field of view. In addition, the 31.4 mm thickness of this motorized off-axis guider supports heavier imaging equipment.

Accepts M42 and C-thread adapters (included), as well as M54 adapters on both sides. In addition, the Scops motorized off-axis guider is compatible with the Pegasus Astro Falcon Rotator (not included). See the "Product Attachments" tab to view the technical drawing for this motorized off-axis guider.

Pegasus Scops Off-Axis Guider Specifications

  • Mirror size: 10 mm x 10 mm
  • Aperture: 50 mm
  • Focus Travel: 8.5 mm
  • Thickness: 31.4 mm
  • Weight: ~1 lb.
  • Cable Type: USB2 Type B
  • Compatibility: Pegasus Astro Falcon Rotator

Accepts M54 threaded adapters on both sides. Includes M42 and C-threaded adapters.

Please Note: Pegasus Astro states that their Unity software suite currently does not work with Windows machines equipped with the Snapdragon line of CPUs.
