ZWO ASI533MC Pro USB3 Cooled Color Camera

Free shipping
SKU: ZWO-ASI533MC-P
$799.00

Add Apertura Optics & Sensor Cleaning Kit - 20 Piece to your order

$49.95

Add Apertura Universal 5 AMP AC Adapter to your order

$49.95

×

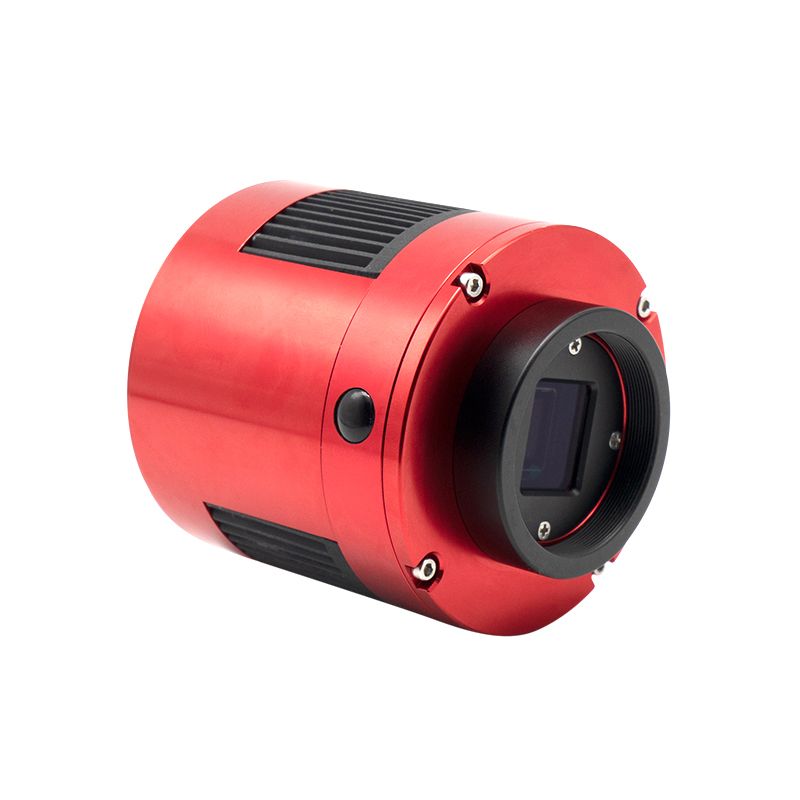

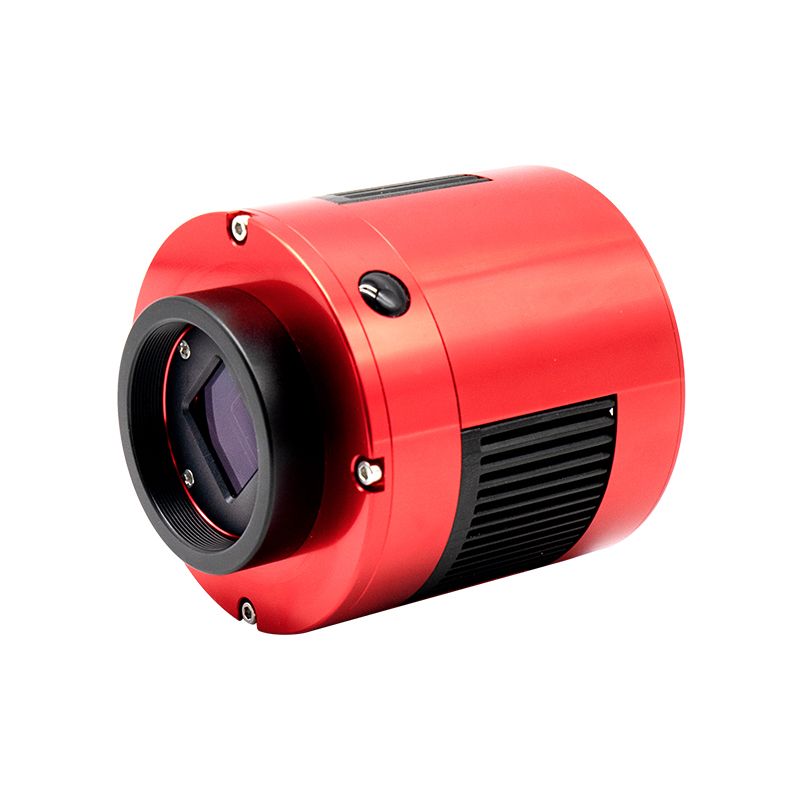

The ZWO ASI533MC Pro Color CMOS Astrophotography Camera

The ASI533MC Pro camera from ZWO was crafted with astrophotographers in mind! The thoughtful design of the camera body makes for a camera with useful additions and careful circuitry, allowing for an increase in signal collection while simultaneously decreasing noise. This, when paired with its high quality Sony sensor, offers a One-Shot Color (OSC) camera with incredibly high sensitivity and exceptionally low noise, resulting in stunning images packed with detail.

​ ​

This remarkable color camera has endless features that are sure to take your astrophotography to the next level. The impressive 9-megapixel square IMX533 sensor allows for incredible resolution within the images captured, and the peak quantum efficiency of 80% and low readout noise of 1.0e result in a superb signal to noise ratio. The back illumination of this sensor greatly increases the sensitivity to photons collected, resulting in photos with incredible detail and low noise. Cool your camera to as low as -35 degrees Celsius below ambient temperature and reduce noise even more! Also featured is zero amp glow, no matter how high of gain you use or how long the exposure is. These incredible aspects within the ZWO ASI533MC Pro were designed to deliver the ultimate astrophotography performance.

​ ​ ​
What Does Our Team Think?
expert photo
  • "When I was shopping around to upgrade my camera, I kept running into an overwhelming amount of reviews in high favor of the ASI533MC Pro. After purchasing and years of use, I can see why. If you have dealt with amp glow, you can relate to how frustrating it is. Yes calibration frames can cancel those out, but wouldn't it be nice to not have it in the first place? The ASI533MC pro implements a backlit sensor and amp glow control, completely eliminating this glow entirely. Now when I view a single sub frame I can see its beauty minus pesky lights emitted from the side of the sensor. Not to mention, making post-processing so much easier. The square sensor also allows me to use 1.25" filters so I could save money for future upgrades! Plus, the sensor size fits perfectly within the vast majority of telescope imaging circles. When I have customers reaching out looking for an entry or intermediate level dedicated cooled camera, this is what I recommend through and through."
- Nicole S, High Point Scientific Gear Expert

A High Performance, Professional Camera for Astrophotography

Let's Dig into the Data!

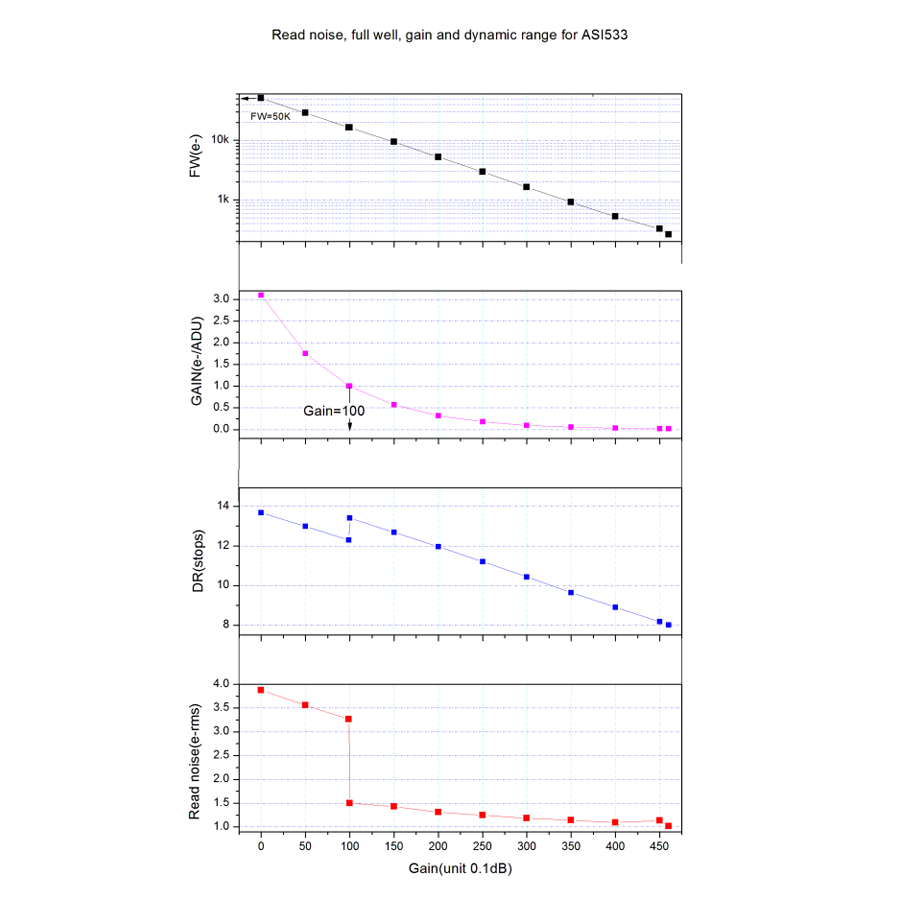

What sets one astrophotography camera apart from another? How is performance measured? Camera and sensor manufacturers provide certain interconnected specifications that give insight into the performance of a camera. These measurements include quantum efficiency, read noise, full well depth, gain, and dynamic range. While the graphs provided by the manufacturer may be confusing or intimidating, don't fret! Our team has put together a breakdown of these complicated topics to help you make sense of them. Take a look at the article here: Understanding ZWO Camera Charts and Graphs, and feel more confident making the right choice for your astrophotography needs!

​ ​

Sony IMX533 Square Sensor

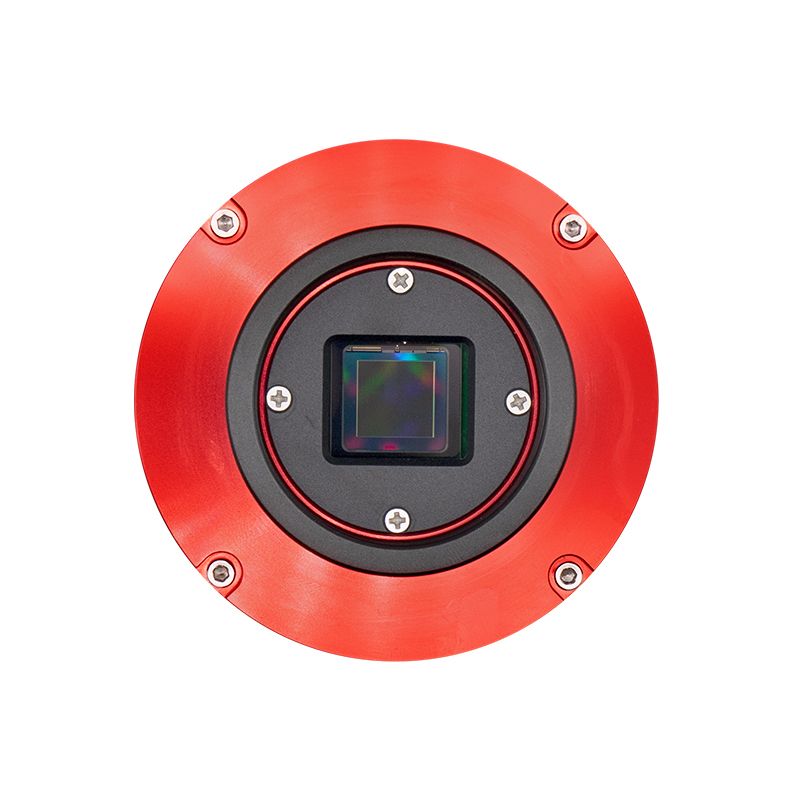

The incredible sensor the ZWO ASI533MC Pro utilizes is the 9.05-megapixel Sony IMX533. This unique 1” square sensor has a resolution of 3008 x 3008 and a pixel size of 3.76um, delivering incredible performance in its resolution of detail. Maximizing the details captured, the back illumination of this Sony CMOS sensor makes the ASI533MC Pro incredibly sensitive to the photons collected, greatly increasing the signal to noise ratio. This large sensor offers an incredible full well of 50,000e- and a 14bit dynamic range, allowing for remarkably crisp and clear images.

Electronics Highlights

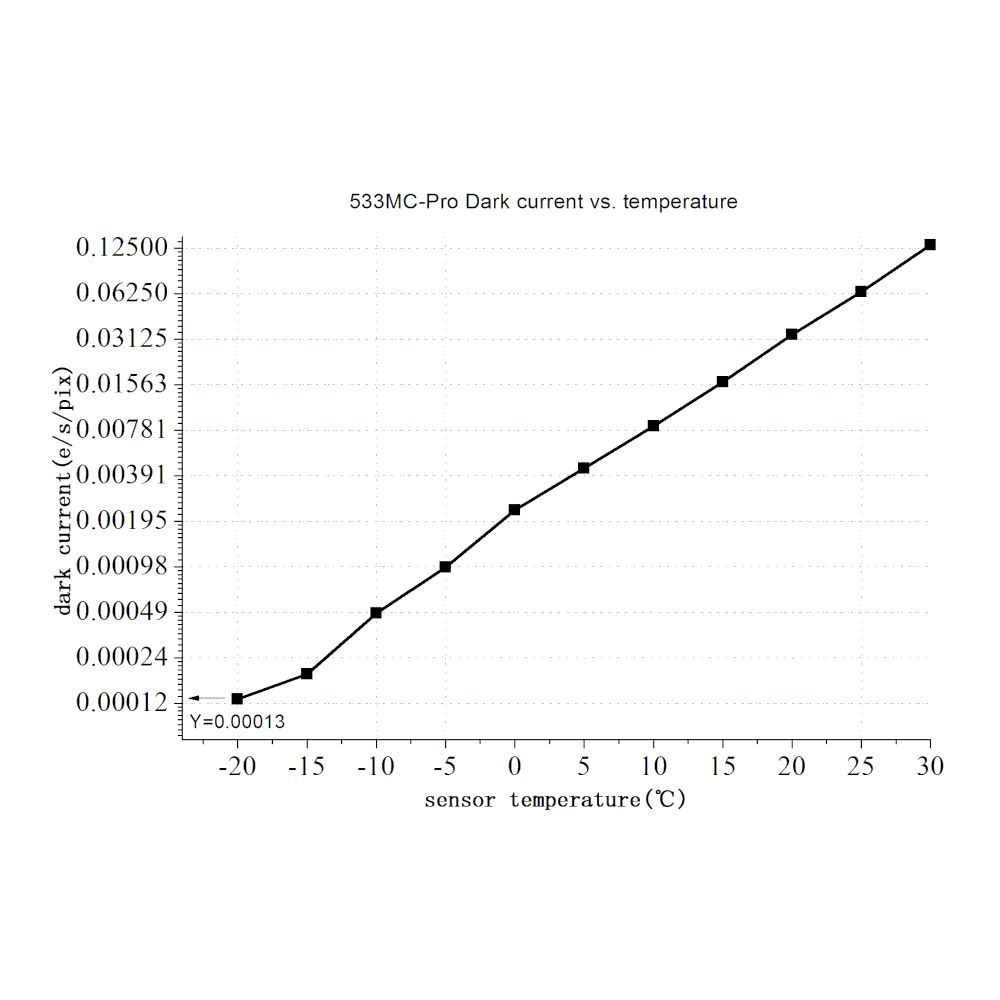

By integrating two-stage TEC cooling on the ASI533MC Pro, the sensor is able to reach as low as -35 degrees Celsius below ambient temperature, resulting in a huge reduction in sensor noise along with reduced dark current. Long exposures are able to be produced with incredibly low noise, allowing for sharper, cleaner images. Another key feature of the ASI533MC Pro is its zero amp glow circuitry, allowing for the use of high gain imaging and long exposures in the absence of amp glow! Guaranteeing reliability of data transmission, the onboard 256MB DDR3 memory buffer ensures the data you capture is preserved and safely relayed.

​ ​

Power and Ports

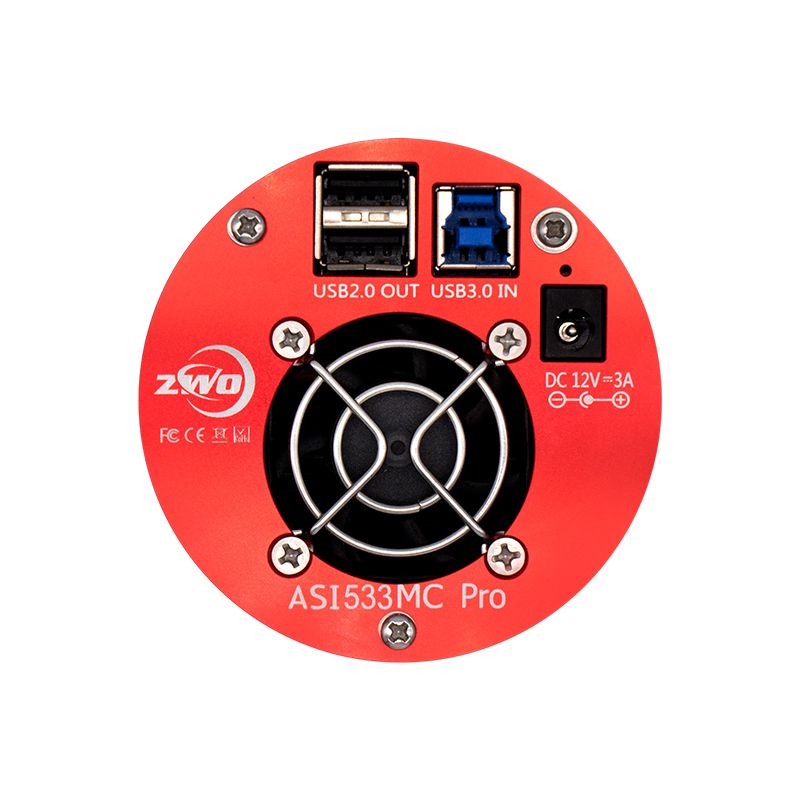

All ZWO cooled cameras require an external 11-14v power supply to work. When it comes to powering your ZWO ASI533MC Pro camera, we suggest the Apertura Universal 5 Amp AC Adapter. Multiple ports are included on the body of the ASI533MC Pro camera. A USB3.0 port allows for incredibly fast data transmission to your computer, as its 5Gb bandwidth gives the ASI533MC the ability to run at 20FPS in, transferring each 14-bit, 9-megapixel resolution frame effectively and proficiently. Aiding in cable management, two additional USB2.0 ports offer the ability to connect extra devices, such as a filter wheel or electronic focuser! Included with the ASI533MC Pro is one 6.5ft USB3.0 cable and two 1.6ft USB2.0 cables, readying you for a night of imaging!

Everything Needed for Proper Backfocus Spacing

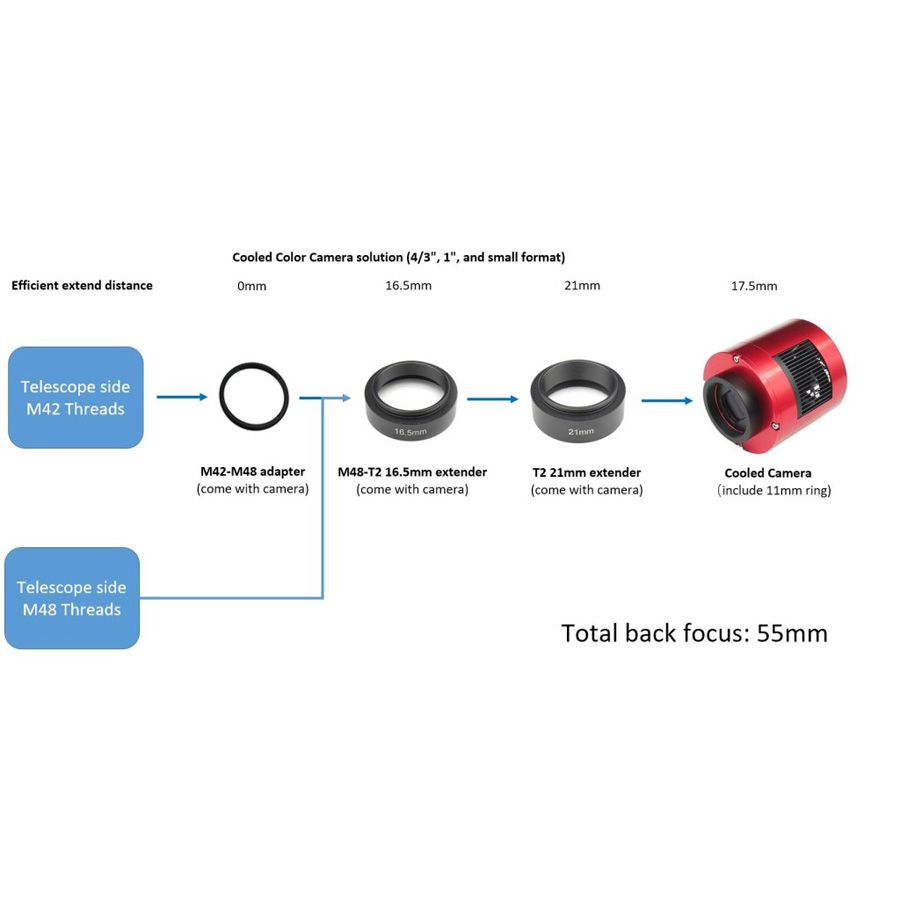

Understanding the daunting task of finding the correct backfocus for your camera, ZWO has included everything you need to find the proper backfocus to get you out and imaging in no time! The included spacers allow you to reach the standard 55mm of backfocus right from the get go, ensuring your camera is the proper distance away from your imaging system. The spacers and adapters provided make it easy to quickly adjust and swap out when using other ZWO accessories such as an OAG or filter drawer. Take a look at the images provided for more insight into how to connect your camera to your telescope!

Astronomy Hub: Your one-stop-shop for Astrophotography Knowledge!

Our Gear Experts have compiled a wealth of information to help expand your astrophotography knowledge! Below you’ll find links to articles, videos and "how-to" guides. Just one more reason that our Astronomy Hub is a one-stop-shop for all your astronomy and astrophotography needs!

Choosing the Best Deep Sky Camera
Undersampling and Oversampling in Astrophotography
Why Exposure Time Matters
ZWO ASIAir Ultimate Guide
