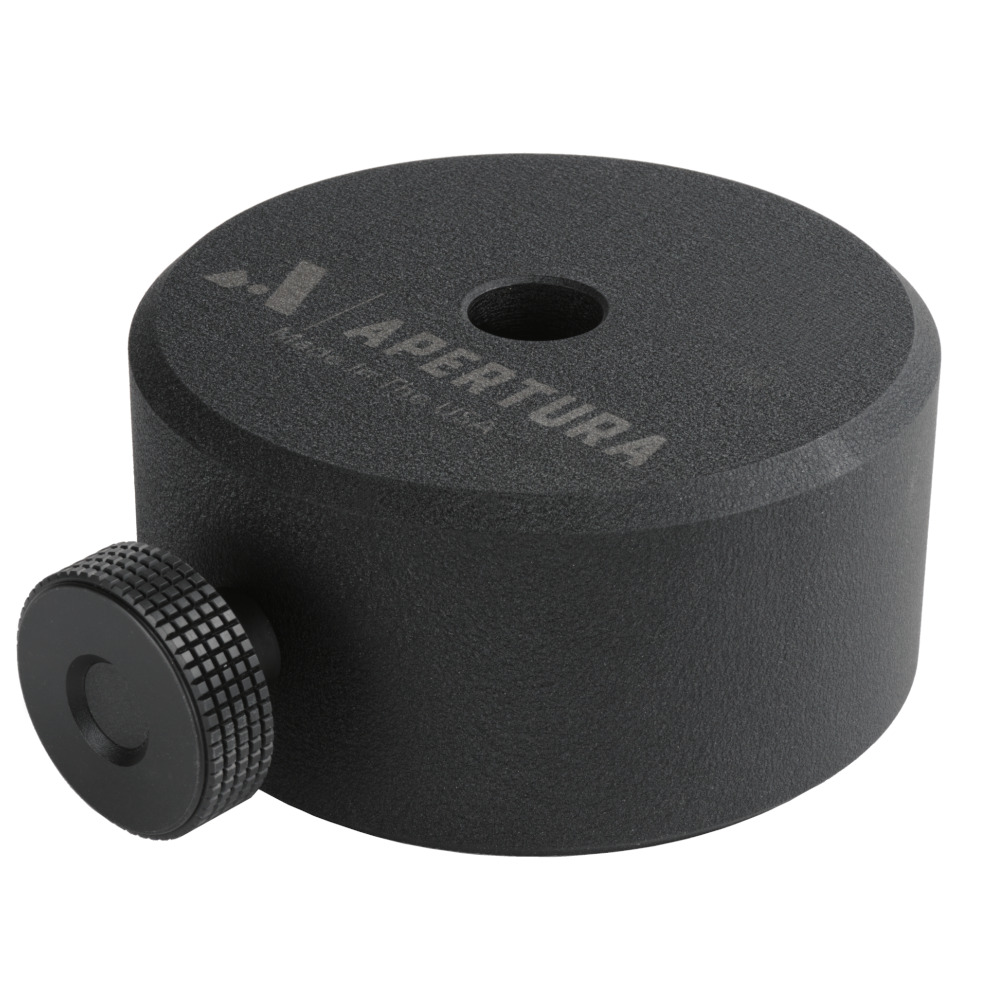

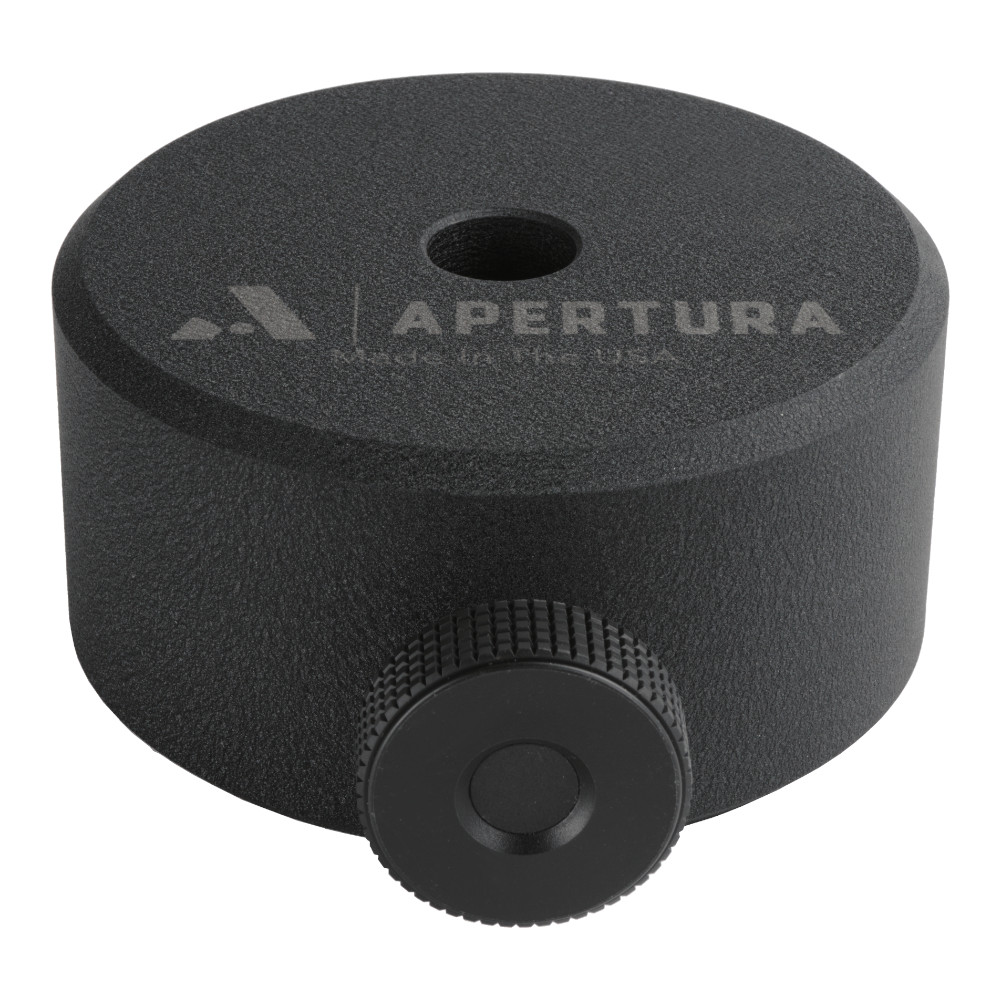

Apertura 22 lb. Counterweight For AM7
Unlock the Full Potential of your ZWO AM7 With this Apertura Counterweight!
Ready to make the most out of your ZWO AM7 Harmonic Equatorial Mount? Easily do so with this Apertura 22 lb. counterweight, a must have accessory specifically designed for the ZWO AM7. Its 25 mm bore diameter is the perfect fit for the counterweight shaft included within the ZWO AM7 package, helping you raise this harmonic mount’s payload capacity to a whopping 66 lbs.!

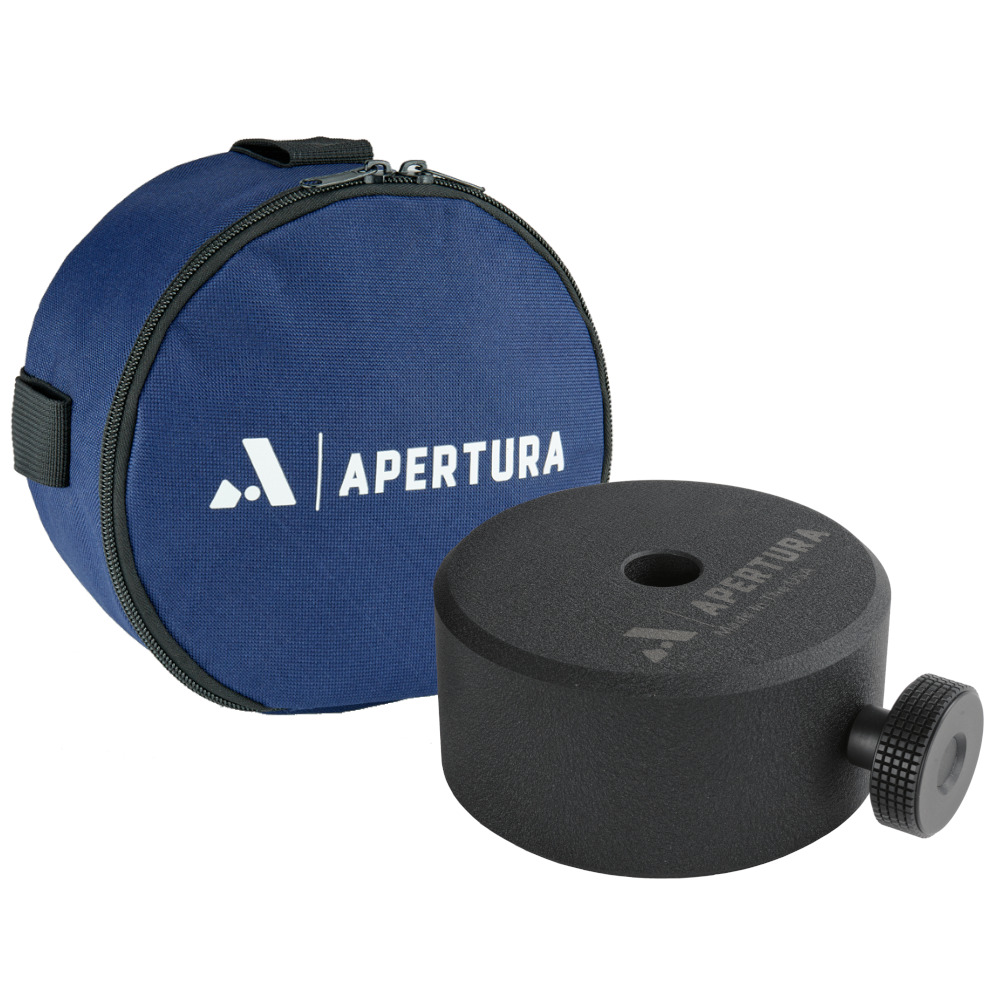

This counterweight comes in at 22 lbs., adhering to the recommended weight from ZWO. Simply place this counterweight at the end of the counterweight shaft (included within the AM7 package) and you’re ready to pack on your heavy imaging equipment! This Apertura counterweight is fitted with a non-marring brass pin, an ergonomic lock knob, and adorned with a stylish black crinkle coat finish that pairs beautifully with the red anodizing of the ZWO AM7. Given the ZWO AM7 comes standard with its own case, Apertura includes a convenient padded carrying case for your counterweight within this box, helping you with effortless transport and storage!
Apertura 22 lb. Counterweight at a Glance
|
|
|
|
|
|
A Game Changer for Your ZWO AM7 Setup
Tailor made for this high-end strainwave powerhouse and crafted with the utmost precision, be amazed by what this essential accessory helps you achieve within your astrophotography journey. Read on as we take a deeper look at this Apertura 22 lb. Counterweight for the ZWO AM7 below.
Designed Specifically for the ZWO AM7
As ZWO recommends using a 22 lb. (10 kg) counterweight for the AM7 Harmonic
Equatorial Mount, this Apertura counterweight is the perfect solution. Now, you
can realize the maximum lifting power of your harmonic equatorial mount,
boosting the standard 44 lb. payload capacity of the ZWO AM7 to 66 lbs.
Enjoy piling on beefier telescopes, heavier cameras, larger filter wheels,
and plenty more with this unlocked payload capacity!

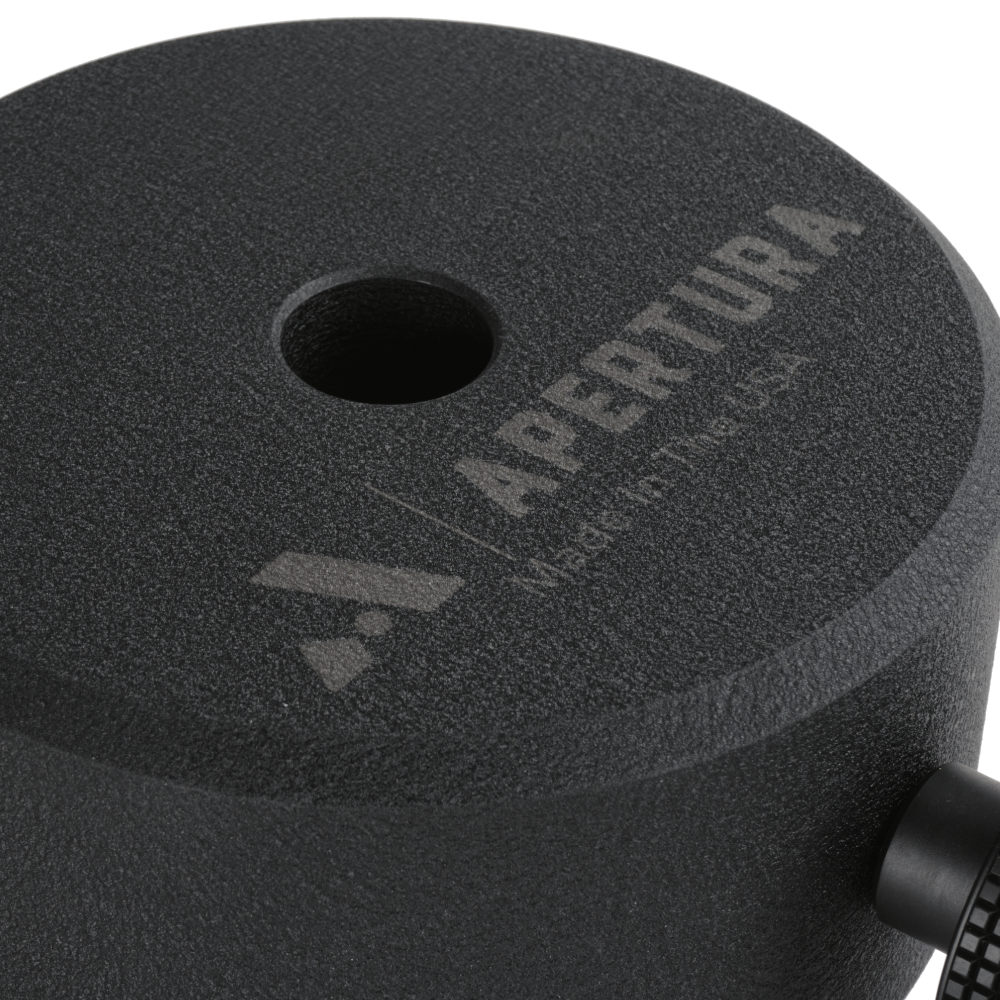

Quality Construction Through & Through
With such a high quality mount, you’re going to want a counterweight of
matching excellence to perfect your setup. The dedication to build quality
from Apertura can be seen with the beveled edges and sophisticated crinkle
coat finish of this weight, offering a stylish matte black surface that
compliments the aesthetic of the ZWO AM7 perfectly. This texture goes beyond
visuals however, as it also offers enhanced grip during setup. Helping
secure this weight to your counterweight bar is the non-marring, brass
securing shaft with 2” of surface area to protect the integrity of your
counterweight bar. At the end of this ⅜” threaded brass shaft is the
ergonomically-designed locking knob made of high-end polypropylene. Perfect
for large hands, this locking knob offers increased grip with its
user-centric, yet stylish texture. This Apertura 22 lb. Counterweight for
ZWO AM7 Mount is fully manufactured within the United States.

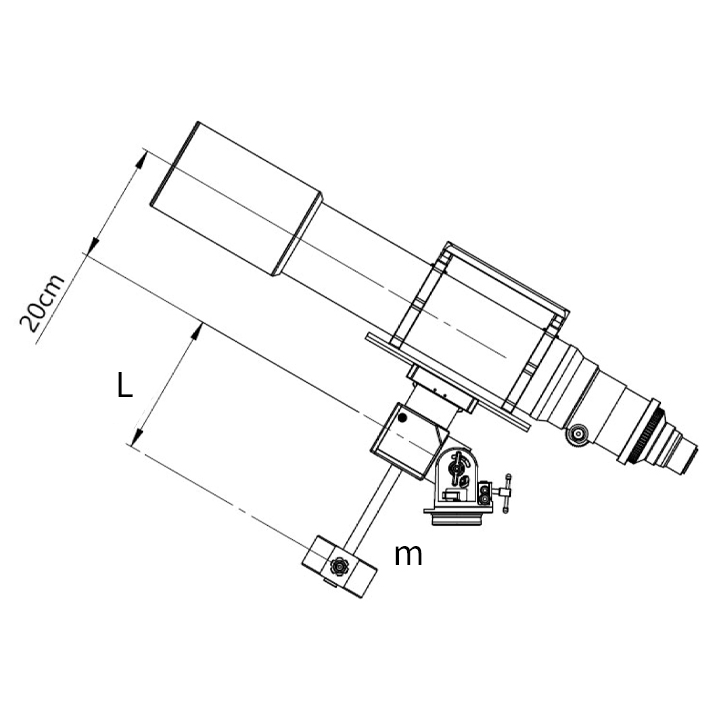

Counterweight Placement
The core aspect of harmonic gearing systems is their exceptionally high
torque capabilities, meaning the addition of a counterweight on these mounts
varies slightly from that of a German equatorial mount. As far as
counterweight placement goes, harmonic gearing systems do not need to be
perfectly balanced to achieve optimal performance. ZWO recommends a 20-30 cm
moment arm for the best results, and when using the counterweight shaft
included within the box, this means placing this Apertura 22 lb.
counterweight near the tail end of the shaft.

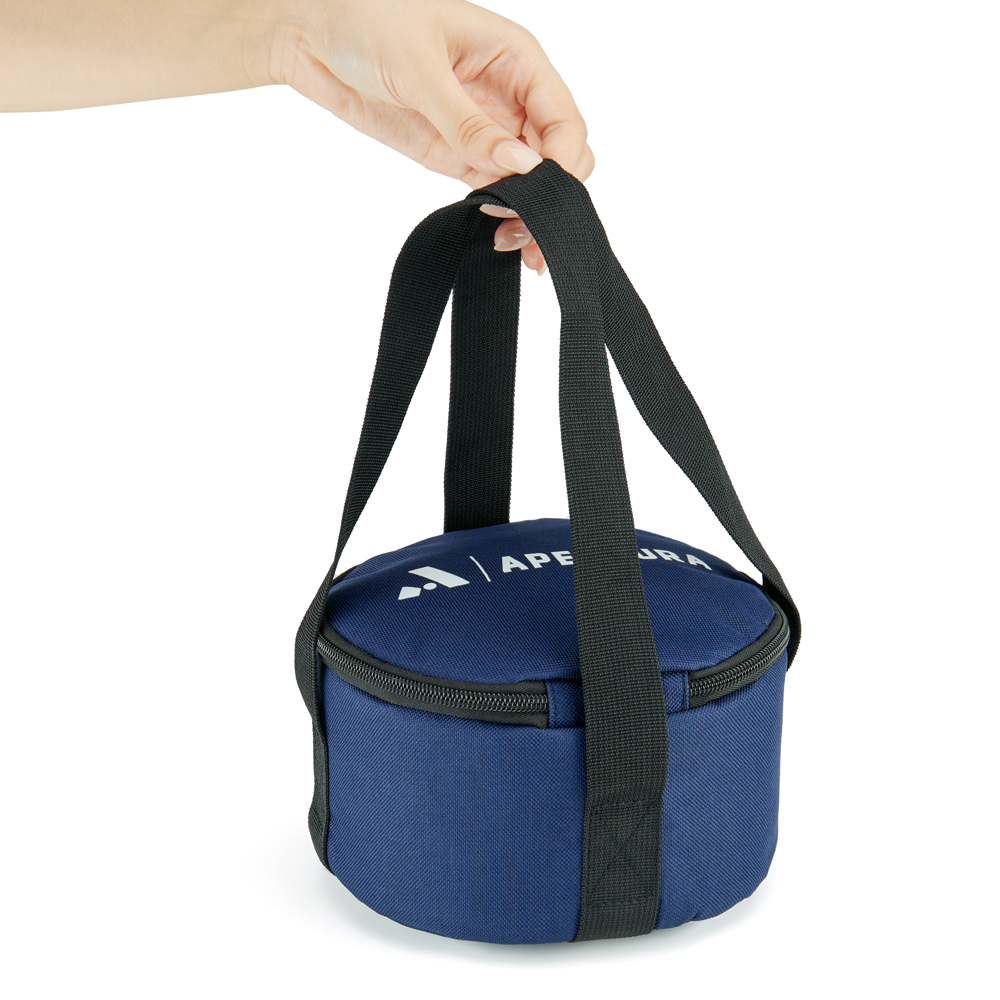

Included Apertura Counterweight Case
Equipped with super-beefy industrial zippers, high quality polyester, and
convenient carrying straps, this case is a perfect tool to store and
transport your Apertura 22 lb. Counterweight for the ZWO AM7! These
industrial zippers ensure your counterweight stays snug within this case,
and the tightly woven 600D polyester fiber protects from the outside
elements. While the case is not waterproof, it is fine-dust-resistant.
Comes with the Apertura Absolute Warranty!
The Apertura Absolute Warranty provides two years of coverage against
product defects. After the initial two-year warranty expires, this product
qualifies for Apertura's Three-Year Accident Replacement Program. In
addition, the Apertura Absolute Warranty is transferrable! Download a copy
of the
Apertura Absolute Warranty
for more information on this program, how to make a claim, and why it is
important to keep your original receipt and the product's original
boxes & packaging!
