Apertura Secondary Mirror Collimation Knobs
Skip to the beginning of the images gallery

Apertura Secondary Mirror Collimation Knobs

(10+ Available)
SKU: APT-CK
$18.95

Ask an Expert
expert photo
×

Apertura Secondary Mirror Collimation Knobs

Apertura Secondary Mirror Collimation Knobs make collimating your Dobsonian telescope fast, safe, and simple! Included are three Apertura Secondary Mirror Collimation Knobs to replace each of the secondary collimation screws originally included with your Dobsonian.

Newtonian telescopes require careful alignment of their two mirrors for optimal performance. Collimation is finely adjusting the secondary mirror to line up with the focuser and the primary mirror at the bottom of the tube. The three standard screws on the secondary hub support that needed mirror manipulation. These collimation knobs change the angle that the secondary mirror points in the same way the provided screws do. No wrench is required for collimation, so you can easily collimate your Dobsonian without worrying about damaging the telescope.

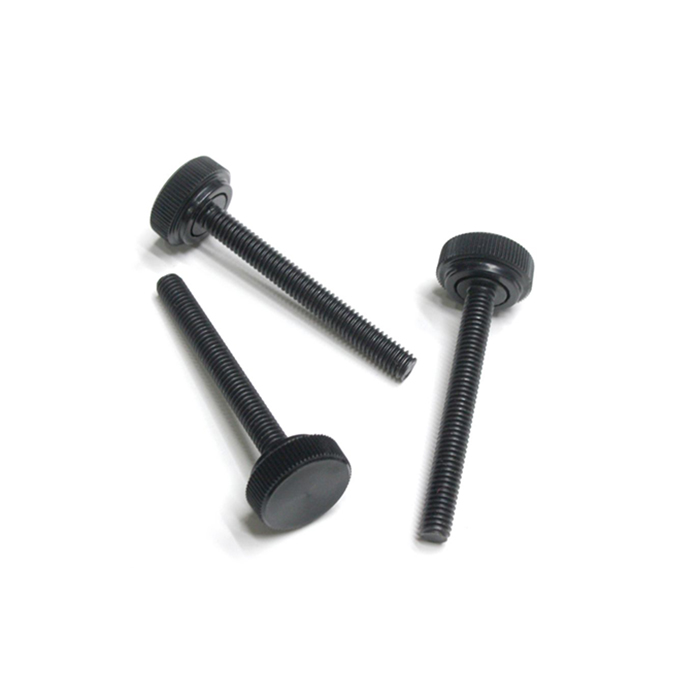

Three secondary knobs Click to Enlarge Image

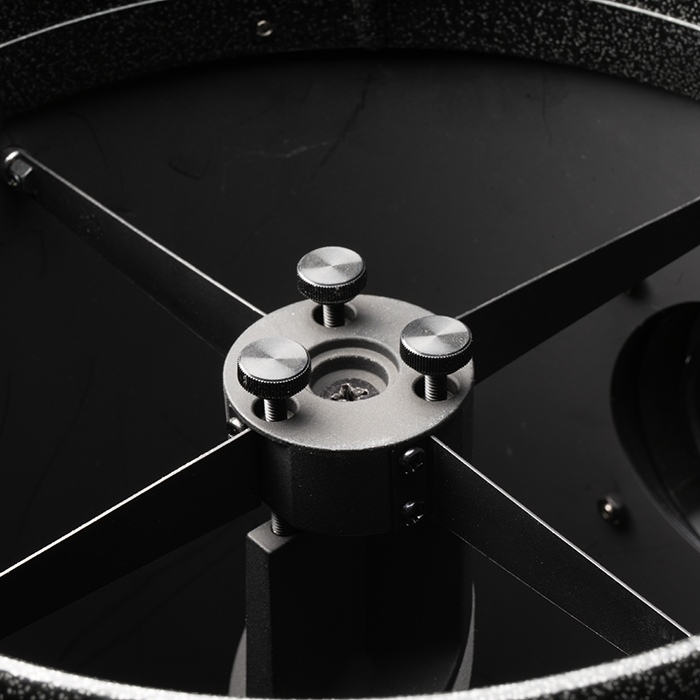

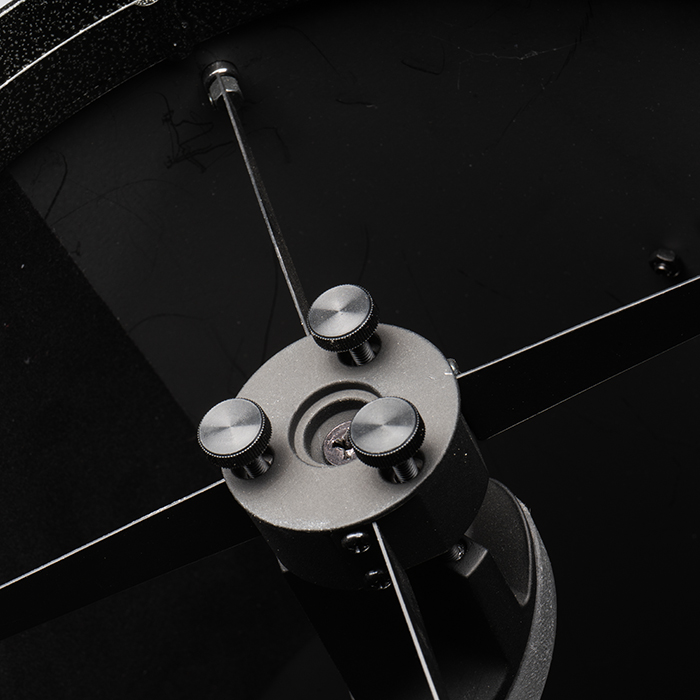

secondary knobs installed Click to Enlarge Image

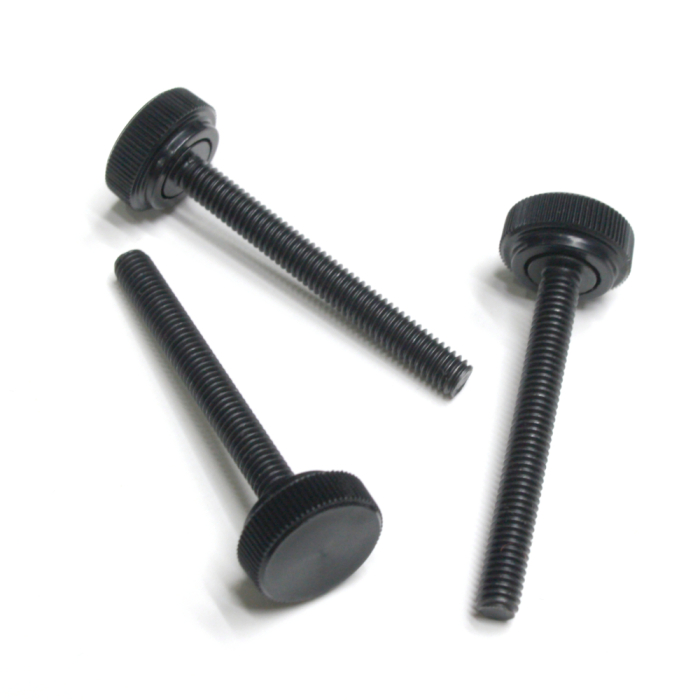

Three secondary knobs Click to Enlarge Image

Custom Built for Convenience

These collimation knobs from Apertura are compatible with Celestron StarSense Explorer 8" and 10" Dobsonians. Read more below!

eyepiece rack attached to dobsonian base Click to Enlarge Image

Installation Overview
Start by removing the central screws located on the secondary hub. This can be done using a standard Phillips screwdriver (not included). Be sure not to remove all three screws at once. After you remove one screw, immediately replace it with an Apertura Collimation knob. Continue to replace the screws one at a time until all three have been changed to the Upgraded Knobs. For step-by-step instructions, please visit the owner's manual Apertura Dobsonian Collimation Knobs User Manual

{{The Apertura AD8 comes with the Apertura Absolute Warranty! }} Click to Enlarge Image

Comes with the Apertura Absolute Warranty!
The Apertura Absolute Warranty provides two years of coverage against product defects. After the initial two-year warranty expires, this product qualifies for Apertura's Three-Year Accident Replacement Program. In addition, the Apertura Absolute Warranty is transferrable! Download a copy of the Apertura Absolute Warranty for more information on this program, how to make a claim, and why it is important to keep your original receipt and the product's original boxes & packaging!
