Askar AF Kit for FRA400C Refractor

×

The Perfect Automatic Focusing Solution for Your Askar FRA400C!

An electronic focuser is an invaluable tool for finding precise, automated focus—and now, thanks to Askar, you can effortlessly adapt your FRA400C refractor for use with today’s most popular EAFs! What was typically reserved for telescopes with Rack & Pinion and Crayford-style focusers, this kit includes all of the necessary components for you to enjoy hands-free, electronic-assisted focusing with this versatile scope. Take your Askar FRA400C refractor telescope to new heights with this specially designed AF Kit!

Automation within the astrophotography scene is becoming more and more popular, with autofocusers helping users streamline their focusing routines. This simple adapter kit utilizes an intuitive pulley system to rotate the helical focuser on your FRA400C refractor. Tailor-made and tested with four of the most popular electronic focusers available, you can rest assured knowing this kit will work with your specific set up without any headaches! Every piece of hardware comes included within this package for adaptation right out of the box, and installation is quick and easy. Thanks to Askar, you can turn your FRA400C into a cost-effective, astrophotography powerhouse.

Click to Enlarge Image

Simple Installation

Upgrading your Askar FRA400C scope with this AF Kit is quick and easy! Take a look below at the four simple steps for installation, using the ZWO EAF as an example:

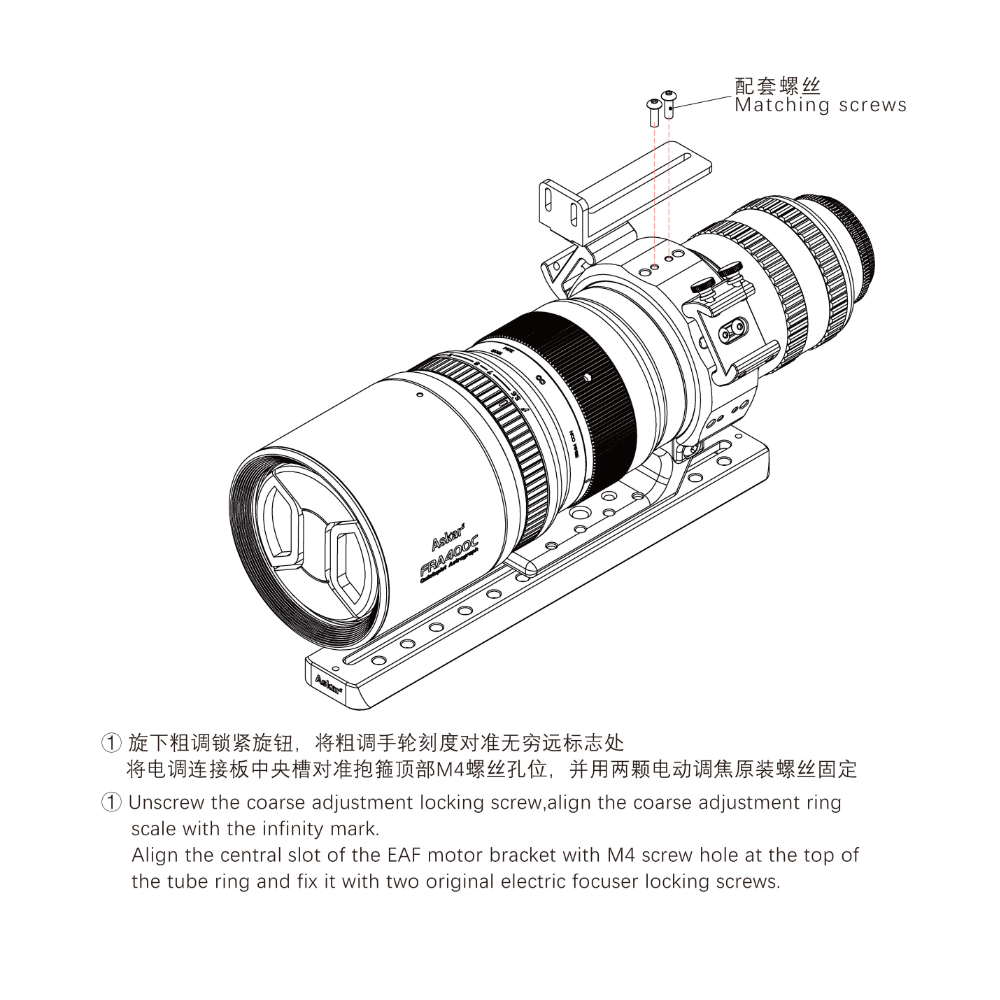

• Step 1 - Unscrew the coarse adjustment locking screw, and align the coarse adjustment ring with the infinity mark. Install the EAF bracket to the top of the FRA400C tube ring.

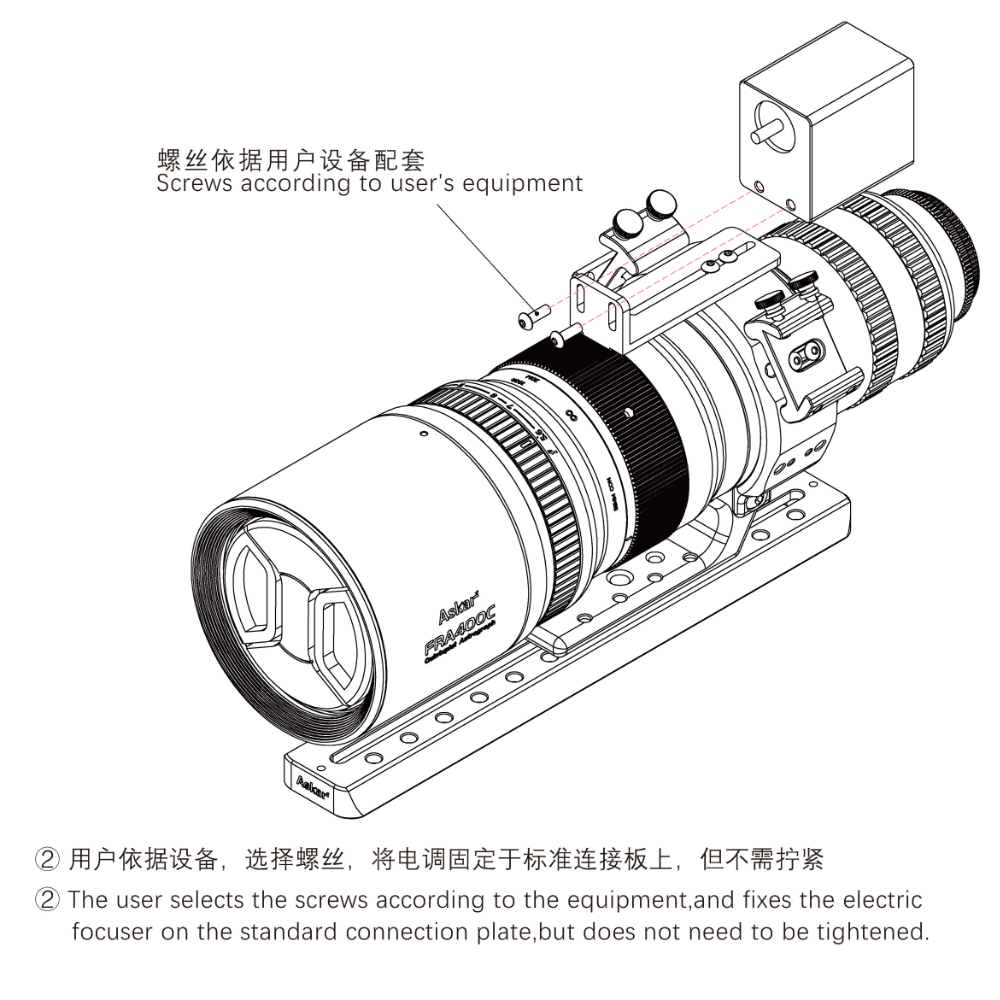

• Step 2 - Adjoin your electronic focuser body to the bracket by loosely screwing it into place.

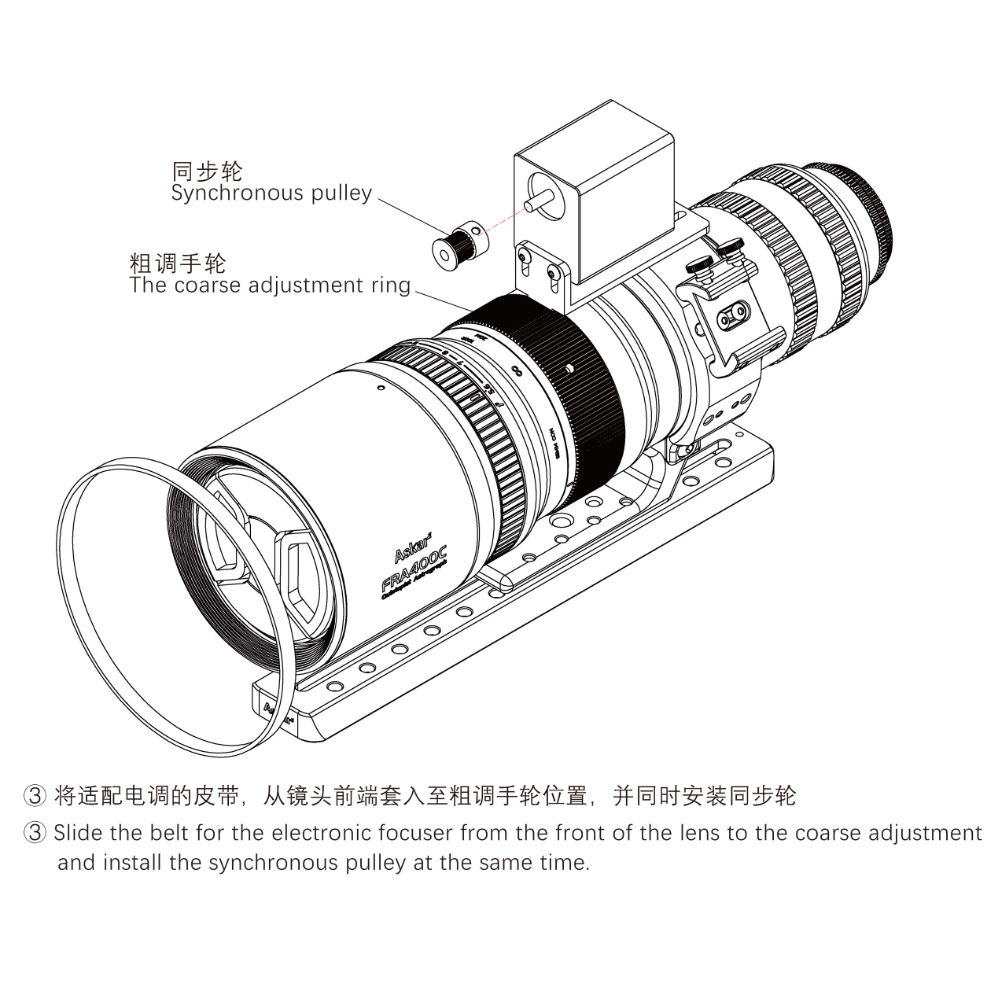

• Step 3 - Place the included coupler (20 tooth MXL synchronous pulley) on the electronic focuser shaft, without screwing it into place for now. At the same time, loop the smallest belt that will comfortably fit over both the pulley and coarse focus ring.

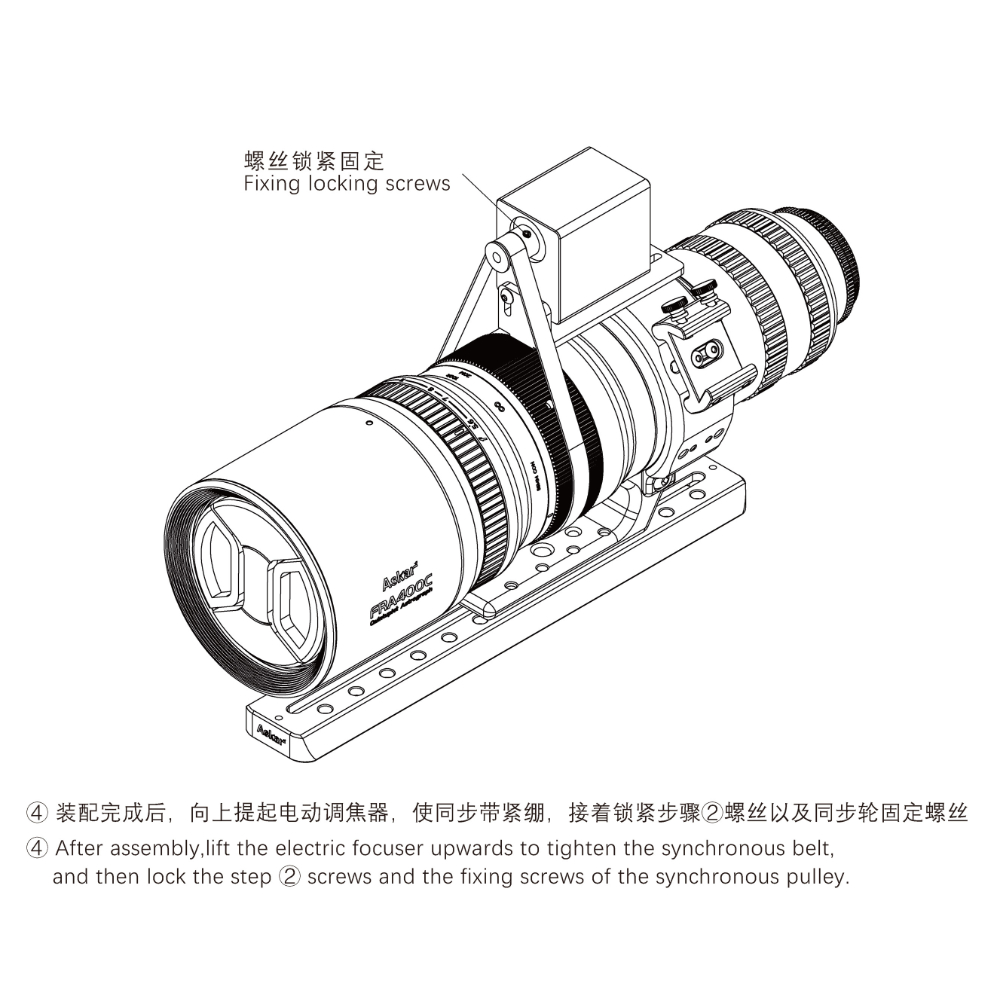

• Step 4 - Finally, lift the electronic focuser body upwards to tighten the synchronous belt, screw the coupler onto the shaft, and tighten the screws holding the EAF body on the bracket. You’re now set for automatic focusing!

Step 1

Step 2

Step 3

Step 4

A High Quality, All-in-One Focusing Adapter

This Askar AF Kit comes with everything you need to adapt your FRA400C for automatic focusing with ease. By upgrading your refractor, you're well on your way to sharper images brimming with clarity, and highly streamlined nights under the stars. Read on as we take a deeper dive into the qualities of this autofocuing adapter kit!

Click to Enlarge Image

The Focusing Upgrade You've Been Waiting For
Tailor-made for the FRA400C refractor, Askar helps you take this telescope’s astrophotography performance up a notch through automated focusing! With the help of software, your electronic autofocuser can focus your telescope with a high degree of precision for the sharpest resolution of details on the lunar surface, structures within nebulae, and intricacies within galaxies. Furthermore, the addition of an EAF eliminates the need to manually refocus your optics periodically throughout the night, as you can set a fixed refocusing schedule within applicable software. With verified adaptability with some of the best-selling electronic focusers on the market today, this AF Kit is a must have for your FRA400C!

Click to Enlarge Image

All-In-One Kit

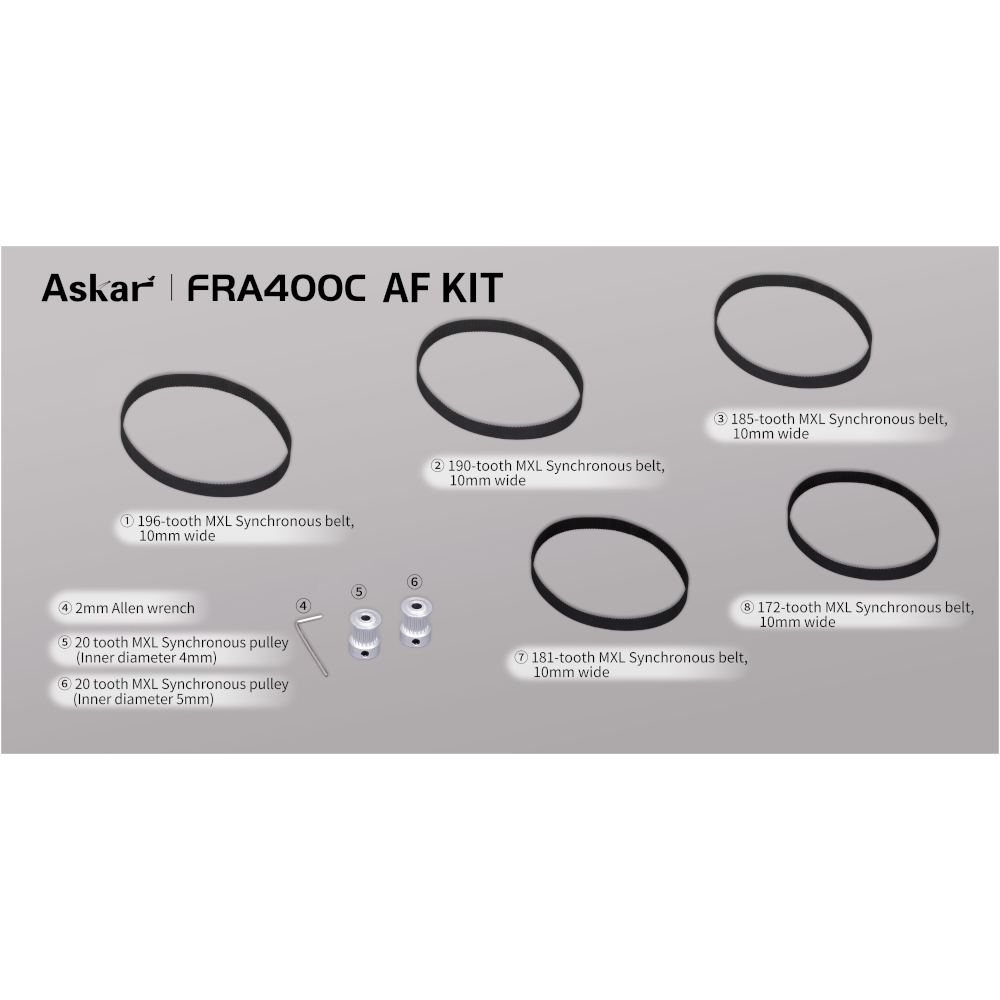

Setting you up for success, this Askar FRA400C AF Kit includes everything you need to get your refractor ready for automatic focusing. Five different 10 mm wide synchronous belts are included with various tooth counts: 196, 190, 185, 181, and 172. This means popular models like the ZWO EAFN and EAF Pro, iOptron iEAF, QHYCCD Q-Focuser, and the Pegasus Astro FocusCube 3 are confirmed to be compatible with your Askar FRA400C. Within this package you’ll also find two 20 tooth MXL synchronous pulleys (also known as a coupler) to fit over your electronic focuser’s shaft, and a 2 mm Allen wrench to secure it in place.
