Baader Morpheus 12.5 mm 76° 1.25"/2" Eyepiece

Click to Enlarge Image

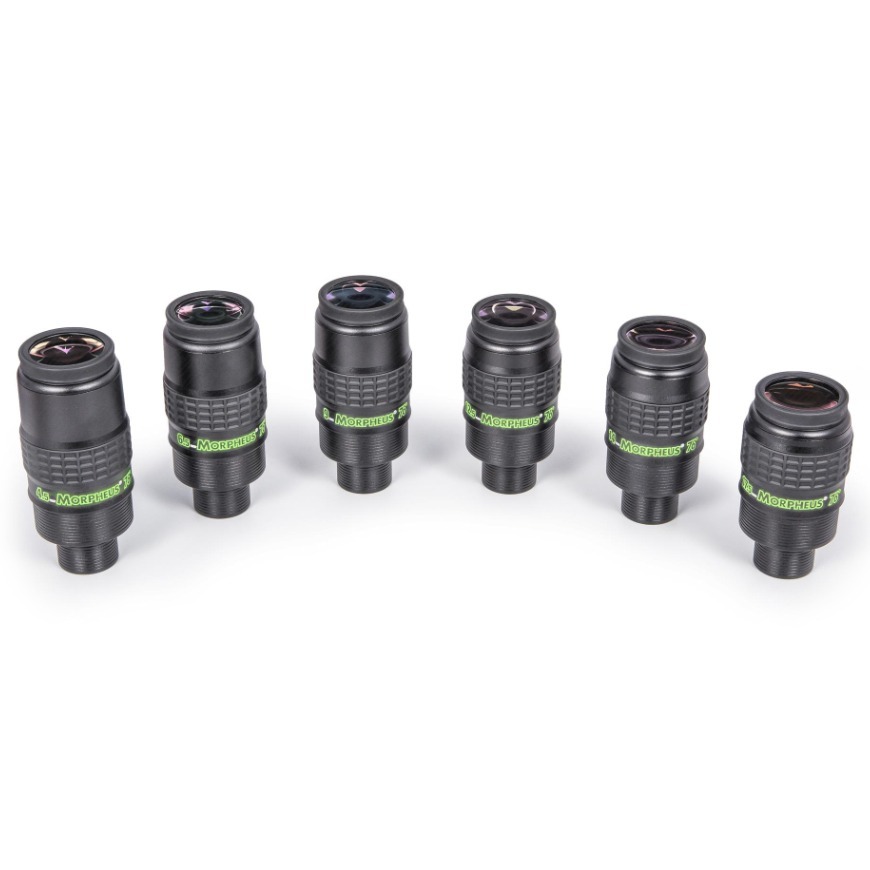

The Morpheus Design: Innovation at its Core
Designed for observers, by observers, Baader has a clear understanding of avid stargazers’ demands, delivering the Morpheus line jam-packed with features astronomers are sure to love. Carefully crafted optics (8 lenses with one ED and two Lanthanum elements) enable full use of the expanded 76° AFOV, opening the doors to cinematic views of the universe where the eyepiece practically disappears. This on-axis sharpness delivers in-focus, pinpoint stars, with no drop off in quality near the edges of the frame! The wide field is also highly beneficial for those with non-motorized mounts, such as Dobsonians, as you’ll experience a slower drift for extended viewing periods without constantly needing to recenter your object. This 12.5 mm eyepiece offers 20 mm of eye relief, blending best-in-class optical performance with a comfortable viewing experience. Not only is this wonderful for eyeglass wearers, but those who utilize binoviewers can expect unmatched levels of comfort and quality when viewing with both eyes. First debuted on the Baader Hyperion eyepiece line and optimized for the Morpheus series, the Phantom Group Multi-Coatings provide exceptional anti-reflective performance for crystal-clear, high contrast views. These coatings are tailored specifically for each glass element, demonstrating the meticulous attention to detail and high degree of precision provided by Baader Planetarium!

Click to Enlarge Image

Masterfully Crafted
In addition to an outstanding optical design, Morpheus eyepieces are quality built, delivering remarkable performance night after night. The hard aluminum alloy and industrial-quality UV-stabilized anodizing upholds the optical integrity of your eyepiece for years to come, making it a reliable choice for all of your future stargazing adventures. Baader devoted themselves to reducing both the size and weight of these eyepieces without compromising on optical performance. The result? A highly capable eyepiece line well suited for travel, binoviewing, and improved telescope balance! This 12.5 mm model weighs in at only 0.76 lbs. (12.2 oz) and provides maximum nose clearance for binoviewing thanks to its small, compact size. Additionally, this eyepiece houses a dual nosepiece for seamless integration within both 1.25” and 2” focusers. Opposed to utilizing undercuts, a design notorious for making eyepiece removal/insertion a hassle, the Morpheus eyepieces include the Baader Slip-Protect Safety-Kerfs cut into the barrels for a secure, trouble-free fit. While under dark skies, it can be annoying to try and find the right eyepiece without ruining your night vision. This is why Baader furnished the Morpheus line with easy to see, luminescent labeling so you can select your eyepieces with ease.

Click to Enlarge Image

12.5 mm of Focal Length
In order to take full advantage of your telescope’s light gathering power, finding the right combination of telescope focal length and eyepiece focal length (i.e. your system’s magnification) helps you achieve the best views possible. Not only does this ratio help you determine what celestial objects can be viewed, it also gives insight into how clear the image will be based on your local seeing conditions. Under good seeing conditions, it’s best to capitalize on this still air by utilizing higher magnifications, while lower magnifications help you make the most out of poor seeing. The formula for magnification is as follows: Telescope Focal Length ÷ Eyepiece Focal Length. Pairing this 12.5 mm Baader Morpheus Eyepiece with a standard 1200mm focal length Dobsonian yields a magnification of 96x—a medium-to-high power rate for viewing a wide variety of deep space and solar system wonders, with stability across average seeing conditions! For a more in-depth look at this topic, be sure to check out our Telescope Eyepiece Guide found within our Astronomy Hub.

Click to Enlarge Image

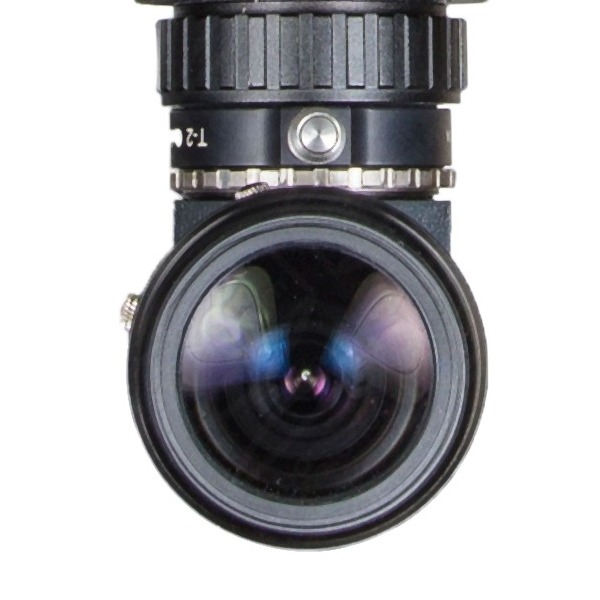

Understanding Exit Pupil
As the beam of light exiting your eyepiece, the exit pupil determines how bright the image through your eyepiece will be. We measure the exit pupil by its diameter in millimeters, with the bigger the diameter, the brighter the image. In general, deep sky objects become visible with an exit pupil of 2 mm or greater, with fainter and fainter targets becoming more and more visible as the exit pupil increases. Small exit pupils (<2 mm), on the other hand, prove to be useful for viewing compact, bright objects, such as the planets or our Moon. Calculating the exit pupil of your eyepiece/telescope combination is super easy: Exit Pupil = Telescope Aperture (mm) ÷ Magnification, or Exit Pupil = Eyepiece Focal Length ÷ Telescope Focal Ratio. This Baader Morpheus Eyepiece has a focal length of 12.5 mm. When paired with a standard f/6 telescope, the resulting exit pupil will be 2 mm, making this eyepiece a great choice for observing the wonders of our solar system and some bright nebulae and star clusters!

Click to Enlarge Image

Numerous Added Accessories
Including a host of extras, Baader goes above and beyond, offering a complete and thoughtful viewing experience! Within this package you’ll find an eyepiece holster for both protection and effortless transport. This holster can also be attached to your belt or tripod for easy access, while the included focal length indicator clips make it easy to determine which eyepiece is which while in the dark. Simply bend one or more of the stainless steel indicator fingers upwards to differentiate each eyepiece, enabling you to identify each eyepiece without use of a flashlight. Not one, but two foldable eye cups are included within the box, providing both comfort and versatility. The preinstalled eyecup features a metal base with M43 threads for secure, threaded attachment to the eyepiece. This simple design is wonderful for everyday viewing, while the second, winged eyecup is highly beneficial for blocking out stray light while binoviewing with eyeglasses. Additionally included is an M43 threaded extension to adjust the eyecups to your personal viewing position. This extension is also great for adapting cameras with M43-threads (Sony & Panasonic) for eyepiece projection photography, and provides a broader surface for clamping smartphone adapters.
