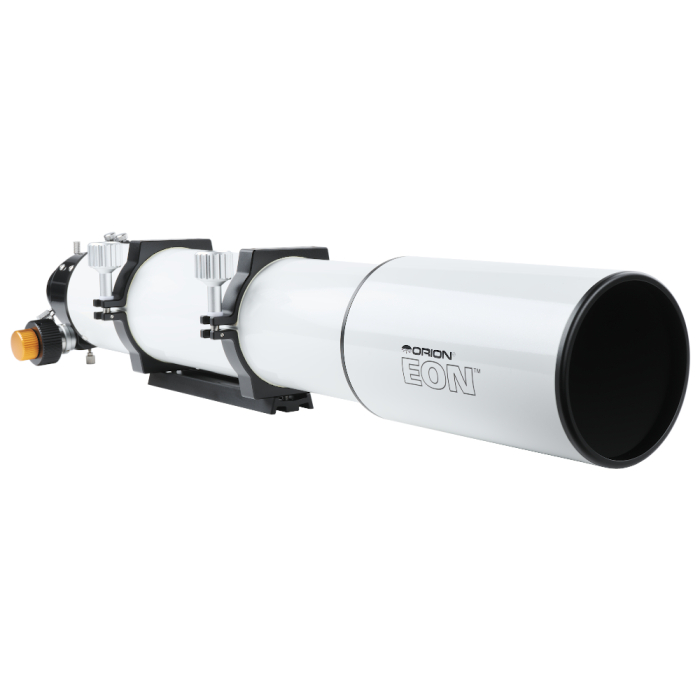

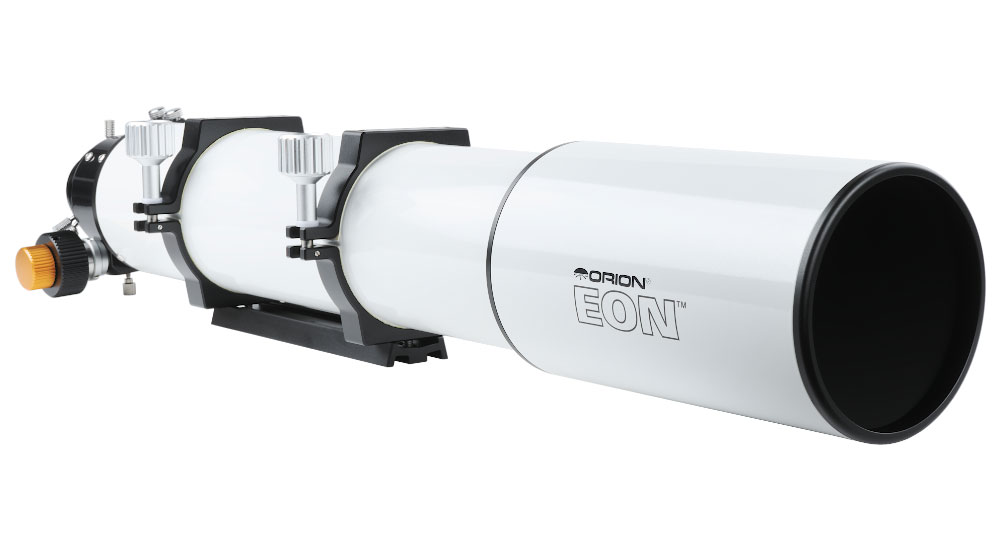

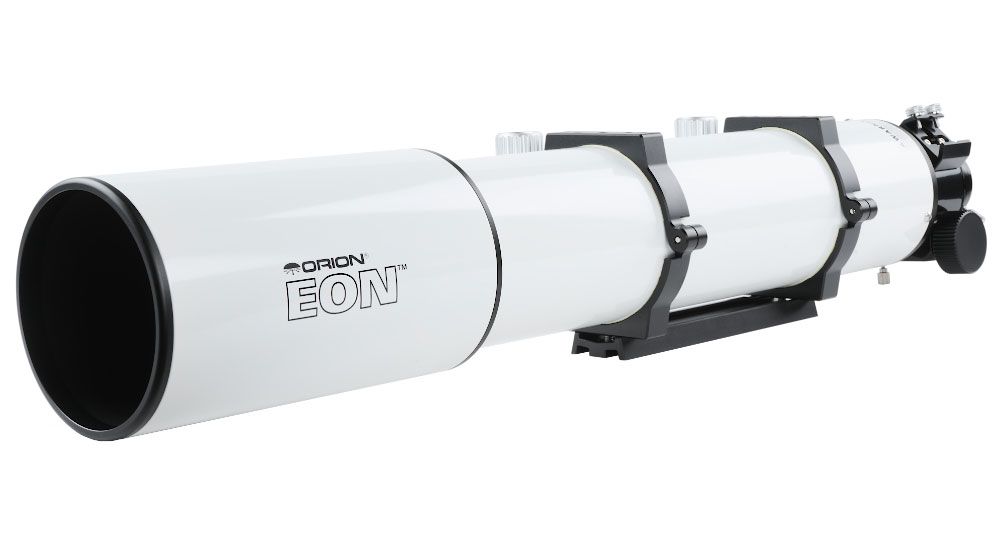

Orion EON 102mm ED Doublet Refractor
EON 102 mm Doublet Refractor from Orion!
Take this Orion EON 102 mm refractor on the road and share spectacular views of the Moon with your friends and family! Great for new observers and astrophotographers (when paired with the optional 0.8x reducer), the Orion EON 102 mm refractor is a great choice for those looking for a high-quality, budget-friendly, and moderately portable doublet!
Weighing only 9 lbs., this Orion refractor measures 24.5" long, 29.5” with the dew shield fully extended. This size makes it ideal to take on the go, whether you’re going to star parties, camping, or traveling. The Orion EON 102 mm Doublet refractor is perfect for those who want to view deep sky objects, star clusters in light polluted areas, double stars, and the Moon! The increased aperture compared to it's smaller sibling, the EON 80 mm refractor, makes this telescope a great option for those looking for a refractor that's still portable, but delivers increased performance when viewing deep sky objects.
Orion EON 102 mm Refractor At a Glance
|
|
|
|
|
Learn More About the Orion EON 102 mm Refractor!
Not only is the Orion EON 102 mm Refractor portable and budget-friendly, but it comes with features that ensure you’ll get the most out of your observation experience! Read more below.
Affordable Doublet Design!

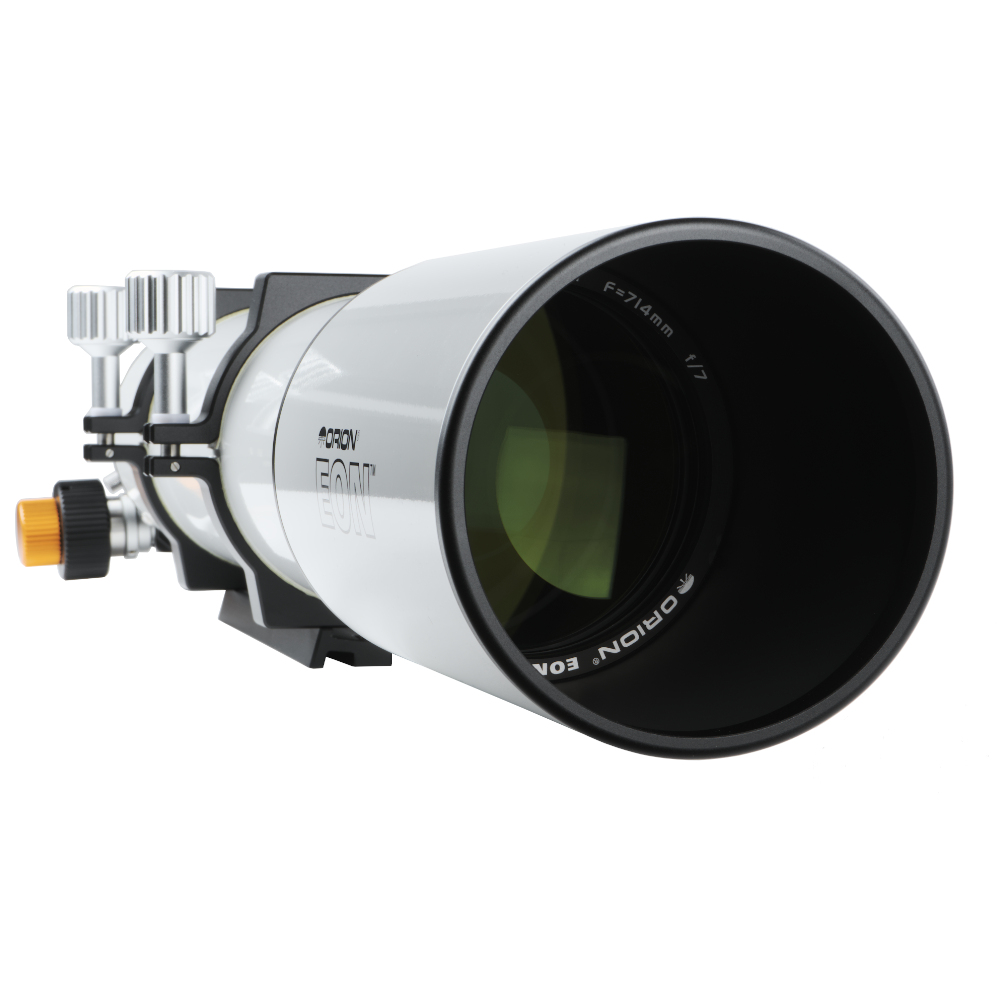

With a focal ratio of f/7, you can expect sharp stars and beautiful contrast on our Moon, star clusters, nebulae, and more. This sharper f/7 focal ratio may offer less chromatic aberration and higher image quality than a comparable f/6 telescope. Utilizing its 102 mm aperture, 560 mm focal length, and air-spaced doublet ED lens design, this small refractor packs a punch when it comes to celestial exploration! With ability to see a plethora of exciting night sky objects, such as detailed views of the Moon, deep sky objects like the Bode's Galaxy, star clusters like the Pleiades, and globular clusters, you’ll enjoy taking this refractor with you on your astronomy adventures. Please note: These celestial objects are just examples of what can be possible. Views are dependent on your eyepiece and/or camera as well.

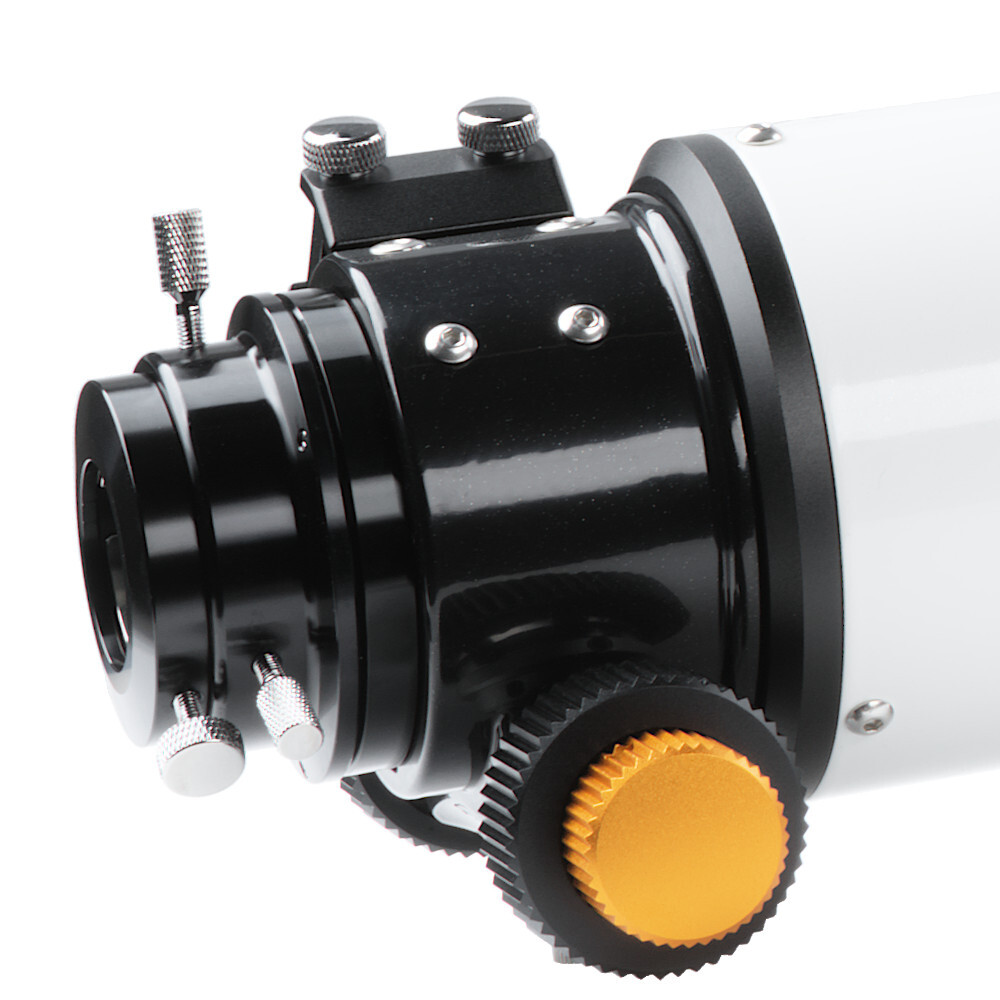

2” Dual-Speed Rack & Pinion Focuser
The Orion EON 102 mm refractor comes equipped with a large Rack & Pinion focuser that delivers smooth, precise focusing with excellent mechanical stability. The dual-speed focus controls allow for quick coarse adjustments and fine tuning. The rigid design works well for supporting heavy eyepieces or imaging equipment without unwanted movement. The drawtube utilizes a large diameter drawtube to provide ample illumination across the field, including with full frame camera sensors, and on the drawtube, you’ll find a precisely marked measurement scale along its upper surface to support consistent and repeatable focusing.

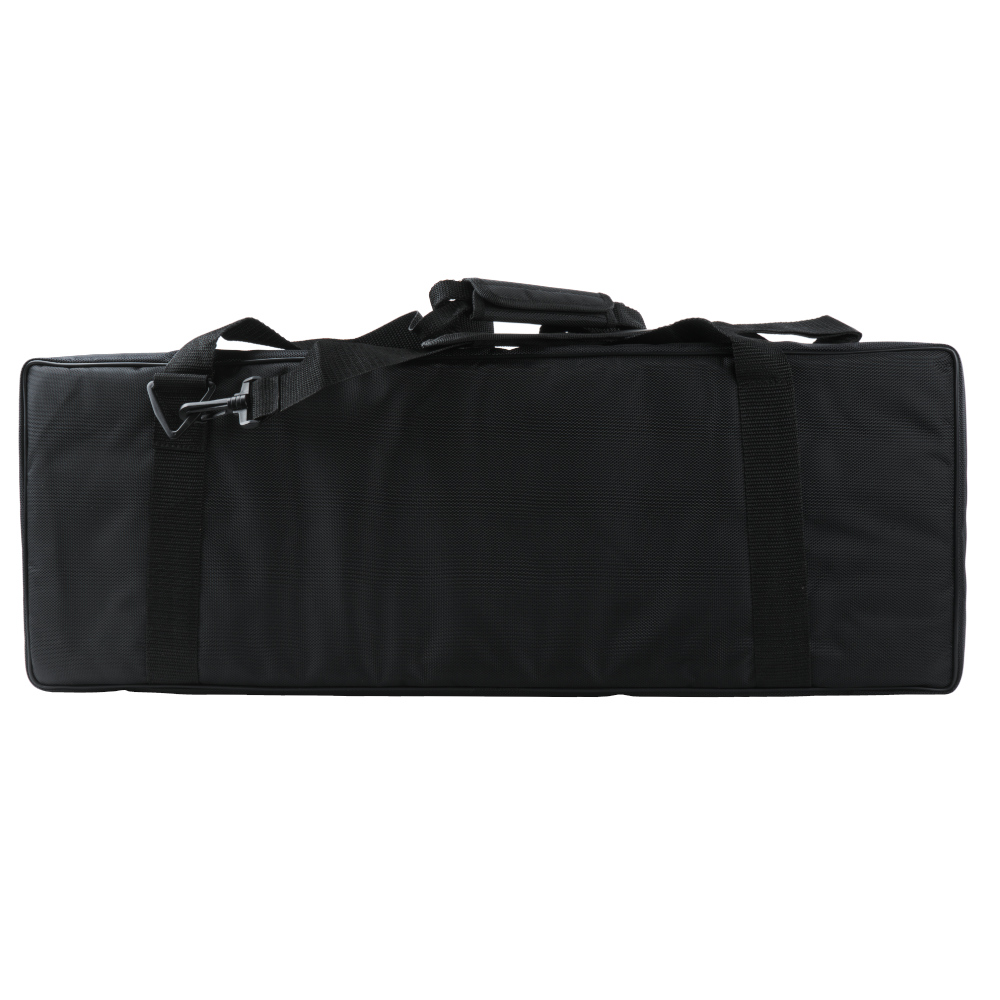

About the Included Soft Case
This Orion 102 mm EON refractor comes with a soft case to aid with transport and storage. Already portable because of its size, now you can rest assured that when you're taking your refractor on the go, it will be protected! The case dimensions are as follows: 27” x 10” x 8”.
Optional Orion 0.8x Reducer (Sold Separately)
Want to use your refractor for astrophotography? The Orion EON 102 mm ED Doublet Refractor utilizes the optional Orion 0.8x reducer for EON 102 refractor. The focal reducer is designed to utilize a standard 55 mm back focus. That’s generally a DSLR camera and M42 T-ring or a cooled astronomy camera using the factory included spacers. When adding this reducer to the Orion EON 102 mm ED refractor, the focal ratio will be f/5.6 and the focal length will be 571.2 mm. To attach the focal reducer to the telescope, thread the reducer into your camera’s nosepiece or T-ring, then insert the focal reducer into the telescope’s 2” accessory holder and clamp it in place.
Frequently Asked Questions
What is a refractor?
A refractor is a type of telescope that uses a lens to bend (or refract) light to a point. The point where the light path intersects is called the “focal point”, and is where your eyepiece, camera, or diagonal would go. The length from the lens to the focal point is known as the “focal length” of the telescope.
How do refractor telescopes work?
Refractors work uses lenses (most commonly, two lenses) to bend light into a sign focal point. Light enters the telescope, passes through the objective lens, and then refracts to the single point. This point of light will extend until it hits an eyepiece.
What is the difference between a reflector and a refractor telescope?
While refractors use lenses to bend light into a point, a reflector telescope uses mirrors to reflect the light back into a secondary mirror, which then bounces back into the eyepiece.
Do refractor telescopes need collimation?
Collimation is required for all telescopes, so they can deliver high-quality views. However, with refractors, collimation is generally done in the factory when the lenses are installed. Because the lenses are fixed inside the tube, the need for collimation changes and routine cleaning is minimal. However, there are situations where the lenses can fall out of alignment, such as rough handling. In general, though, refractors rarely require user collimation.
Does a refractor telescope invert the image?
In general, looking straight through a refractor telescope will show an upside down and inverted view. However, you can use a mirror diagonal that will flip the image so it is correctly oriented, up and down, in the eyepiece. It will still appear backwards, however, that is normal. Since there is no "up and down" in space, it's all a matter of perspective, and even viewing the same object from different parts of the world will change the "perspective" of a celestial object.
How do you clean a refractor telescope lens?
A little dust is normal and usually won’t affect performance. When cleaning is needed, always start with the gentlest tool to protect the delicate coatings. Proper care ensures your optics stay pristine and scratch-free for years to come. We recommend using the Apertura Optics and Sensor Cleaning Kit. This 20-piece set has helpful tools, including a bulb blower, a lens pen, and lens cleaning solution, that are designed to be gentle on your optics.
Is it safe to look at the Sun with a telescope?
No, it is not safe to look at the Sun through your telescope UNLESS you are using a dedicated solar telescope with built-in filtering or you have a quality solar filter properly installed over the front aperture a regular telescope! Protect your eyes at ALL times.
What does seeing conditions mean?
When amateur astronomers are talking about seeing conditions in astronomy, they are discussing (or complaining about!) current atmospheric conditions. I say "current" because the sky's atmosphere is always changing and will be different not only from night to night, but sometimes from hour to hour! Things like dust, pollen, air currents, temperature, dew point and weather conditions all affect what you see through your telescope. Objects that were in sharp focus at a particular magnification on Saturday night may not come to focus with the same eyepiece on Sunday. This is one reason why amateur astronomers have several eyepieces (3-5 is most common). They not only allow you to increase magnification on nights of good seeing, but decrease magnification when the air is less steady.
What is the best telescope mount?
To determine the best telescope mount for you, it is important to think about what you plan to do with the telescope. In general, the "best" telescope mount is a solidly built equatorial mount and tripod that has a large enough weight capacity to easily carry the telescope and any other accessories you plan to use. However, if you want to use your telescope as a spotting scope during the daytime and look at the Moon and planets at night, we would recommend a solid alt-azimuth mount instead. Alt-azimuth mounts, with their simple up, down, right and left movements work best for daytime use or nighttime use when looking at objects that are easy to find in the sky. However, it would not be considered the "best" mount if you plan to do astrophotography. A solid equatorial mount is required for long exposures of galaxies, nebulae and other deep sky objects. While you can buy a manual equatorial mount and add dual-axis motors and a hand controller for astrophotography, these days most people prefer the computerized equatorial mount. Smart electronics help you with alignment and are very accurate when tracking, which makes it way easier to get good results, especially when doing longer exposures.
