Pegasus Astro Pocket Powerbox Advance Gen3
Pocket Powerbox Advance Gen3: Your All-In-One Power & Connectivity Solution!
The Powerbox Advance Gen3 is ready to support your imaging sessions and more! With up to 14 amps of total current distribution, this durable and lightweight power management device is the perfect portable control center for all your imaging equipment! It works with your PC or as a standalone device, allowing you the fine grained control needed to meet the power demands of a wide range of equipment. Read on to learn why the Pocket PowerBox will make a solid addition to your astro-imaging toolkit!
The third generation Pocket PowerBox Advance includes multiple improvements to help streamline your portable astrophotography set up! Featuring (4) 12V DC power outlets, (2) PWM dew heater channels, (1) RJ12 port, (2) USB 2.0 ports, and (4) Superspeed USB 3.0 ports, the Gen3 is a one-stop power and connectivity solution. Now offering Wi-Fi connectivity and control with a built-in web dashboard, and full ASCOM 7 and ASCOM Alpaca compatibility. The Gen3 has an increased 14A total current output, as well as stepper motor focus controller that provides up to 1.5A per coil. The included external environment sensor further enhances this already feature-packed device, giving you access to precise temperature, humidity, and dew point feedback from the surrounding environment. To access the full range of control, simply plug the Gen3 into a Windows PC and boot up the free Pegasus Astro Unity platform! This powerful software easily accommodates numerous Pegasus Astro products, as well as future products, and can even be integrated with other imaging and control software, like MaximDL or Sequence Generator Pro!
Pocket Powerbox Advance Gen3 At a Glance
|
|
|
|
|
A Future Proof Portable PowerBox!
The Pocket Powerbox Advance Gen3 is a secure and reliable power management solution that will provide fine-grained control over your astrophotography equipment for years to come. With numerous power outlets, environmental sensors, and a deeply customizable functionality, this compact power management device will bring your imaging capabilities to the next level! Check out the features below for an in-dept look into the Powerbox advance Gen3!

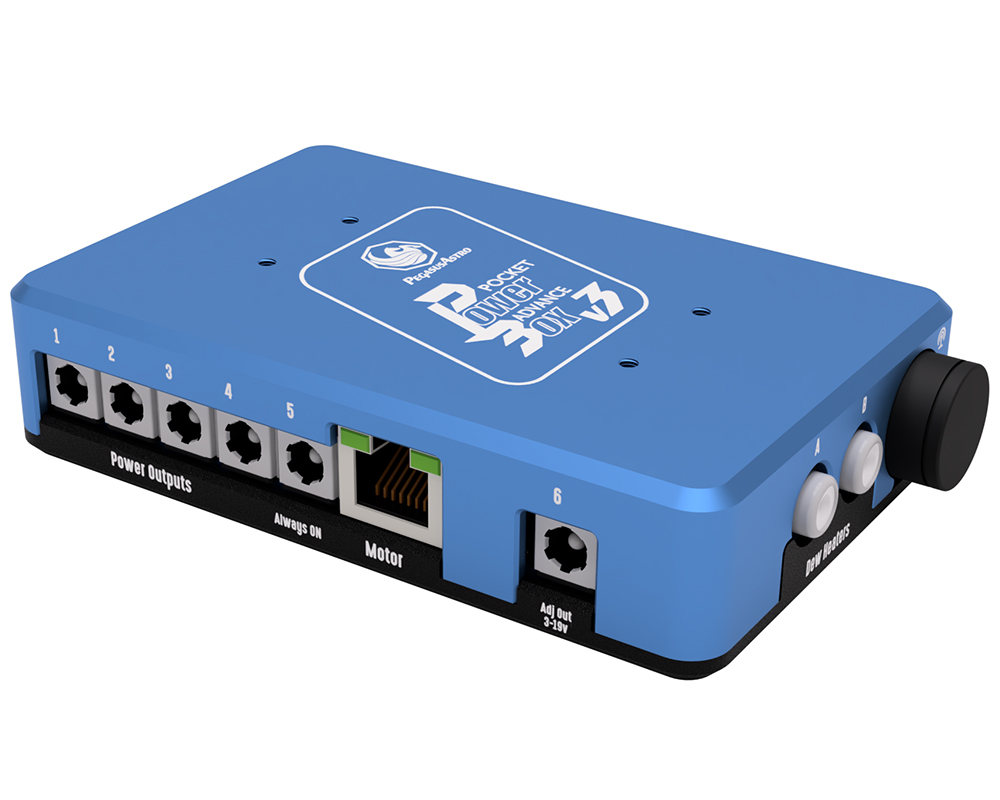

Four 12V DC Power & Two Dew Heater Outlets

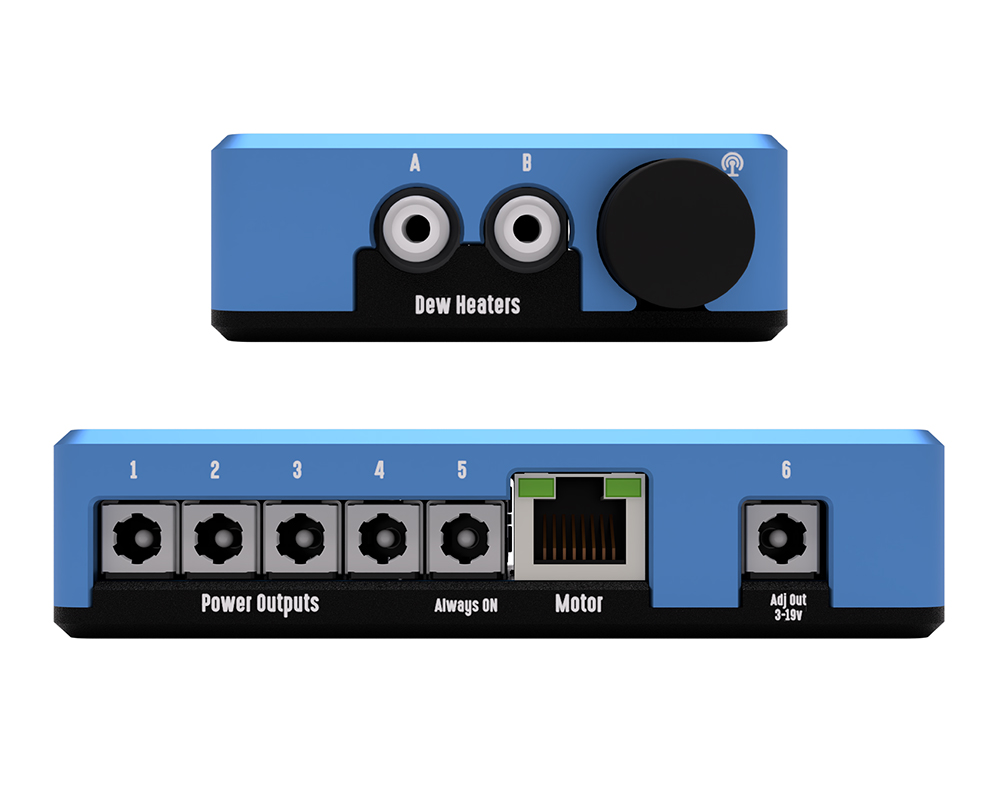

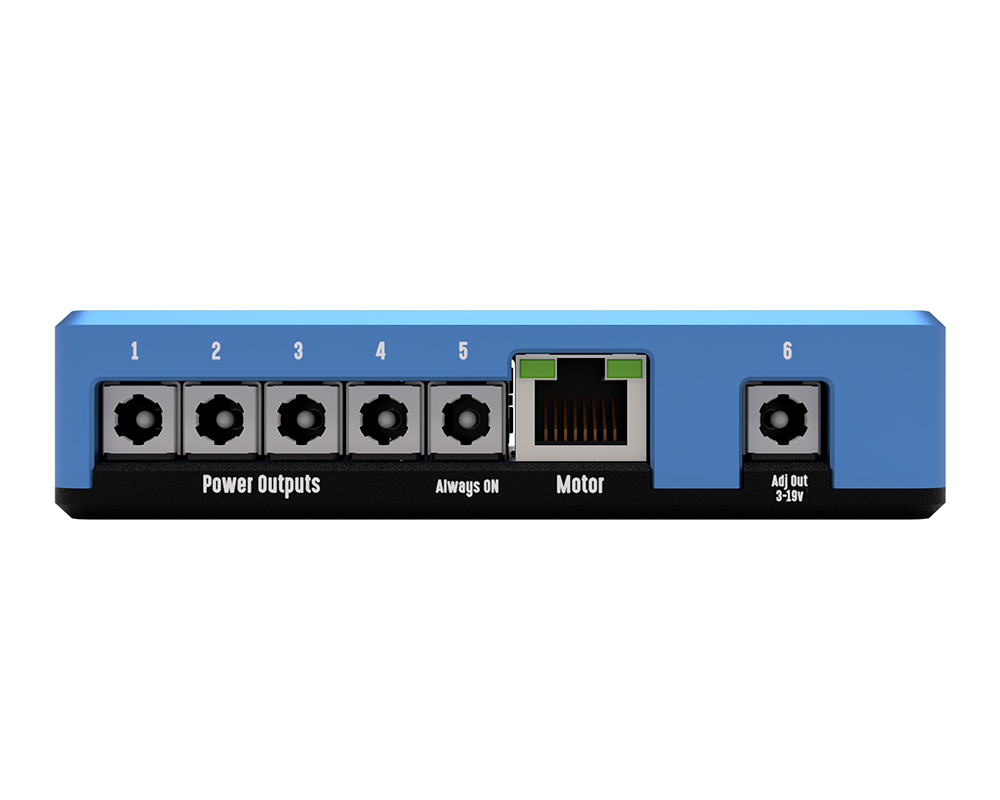

The Pocket Powerbox Advance Gen3 has a total of (4) 5.5x2.1 mm 12V DC power outlets, with offer up to 10A total output. Each of the 12V outlets can be independently controlled via the Pegasus Unity Platform. It also has (2) pulse width modulation (PWM) dew heater (RCA) outlets which can be used in tandem with the external environmental sensor to provide automatic output adjustments, meaning your dew heaters are always working at optimal efficiency. When used with a PC and the Unity software, the power output of the Pocket PowerBox Advance Gen3 is easily calibrated to meet the needs of a variety of equipment, and with an adjustable 3-19V (3V by default) power output, the Powerbox Advance Gen3 is perfect for powering Mini PCs and other external devices.
SuperSpeed Data Transfer Up to 5 Gbps

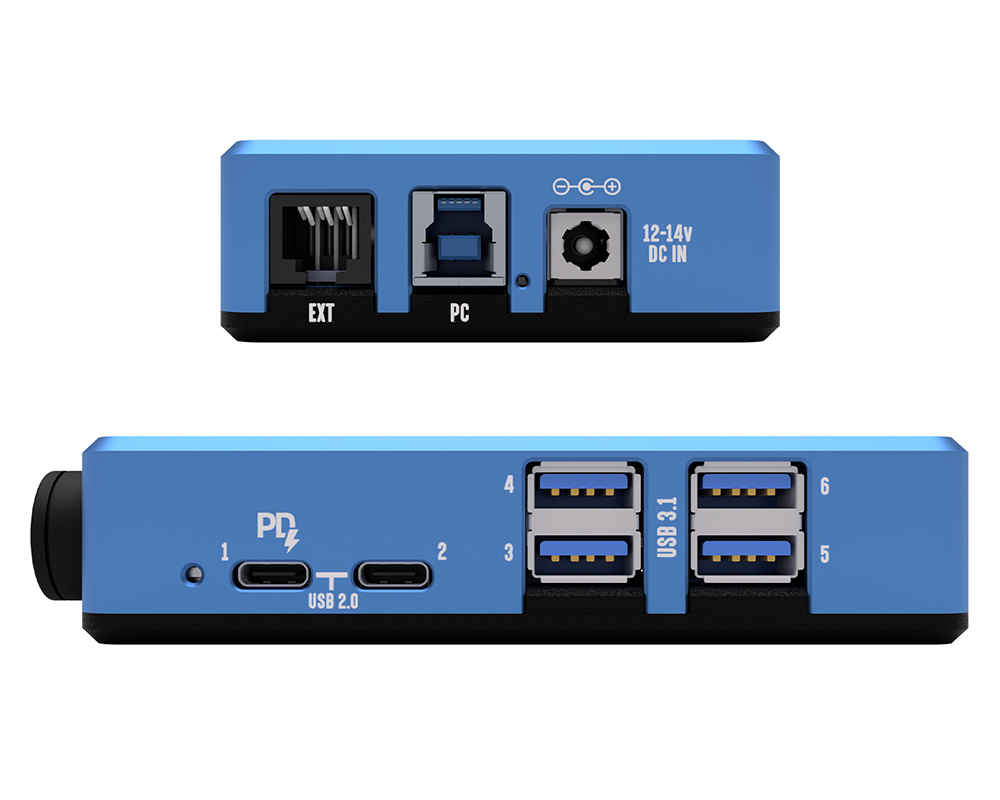

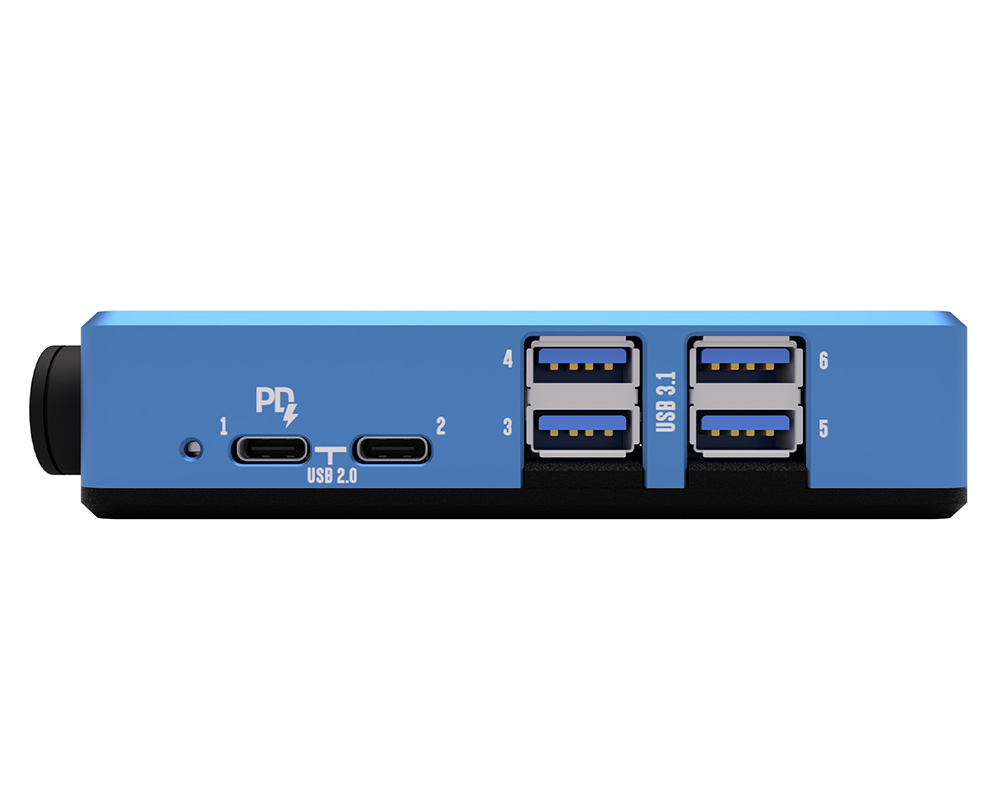

The Pocket Powerbox Advance Gen3 has a total of (6) USB ports, (4) USB 3.0 (Type-A) ports with 5 Gbps Superspeed data transfer and (2) USB 2.0 (Type-C), one of which provides up to 3A PD to compatible devices. This advanced USB hub is suitable for connecting and powering cameras, filter wheels, focusers, or even mini PCs like the Raspberry Pi. Each USB port can be independently enabled or disabled through a compatible control program, such as the Pegasus Astro Unity Platform, and all USB ports include surge and ESD protection. For devices that require more complex data transmission, such as an external environmental sensor, there is a (1) RJ12 port.
Built-in Voltmeter and Ammeters
To ensure your devices are both power and protected, the Pegasus Astro PowerBox advance Gen3 features a built-in voltmeter that is designed monitor power input and cut output should the total input reach more than 14V. When used with the Pegasus Astro Unity Software, you'll be able to keep track of the total input voltage in real time. Beyond the voltmeter there are four (4) ammeters built into Powerbox Advance. This allows you to supervise the total current consumed by each connected device, the total current consumed by any devices attached to the 12V outputs, and total current consumed by each of the two dew heater channels.
External Environmental Sensor

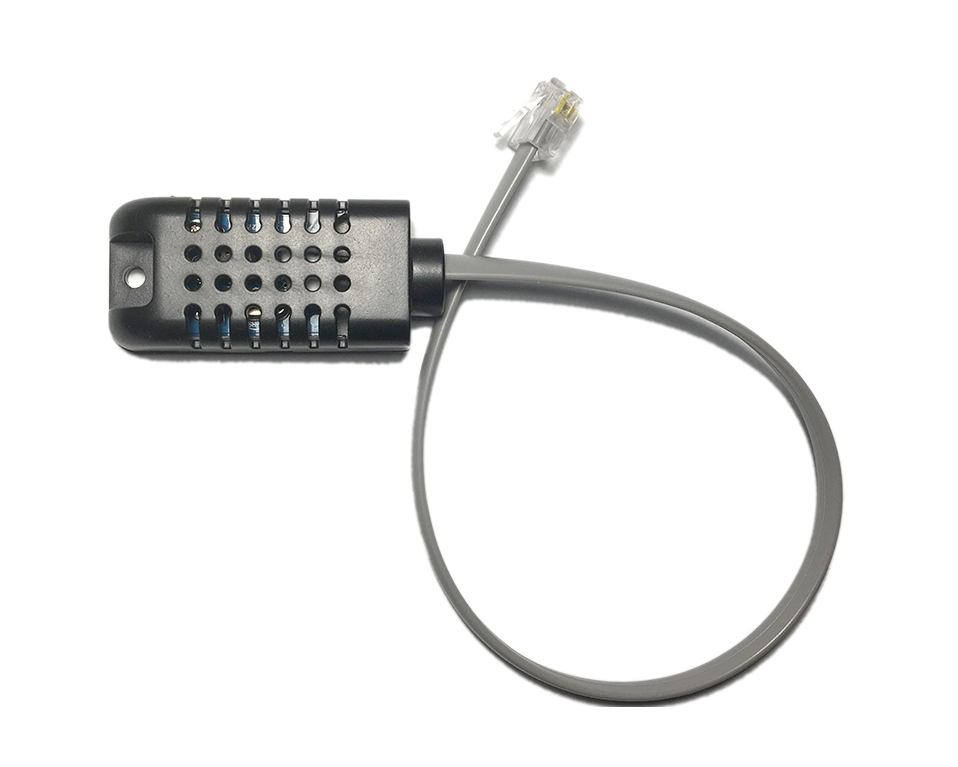

The Pocket PowerBox Advance Gen3 includes an external environmental sensor for real-time measurements from your local environment. This sensor is perfect for fine-tuned control over dew heaters and external focus controllers. It will even provide temperature, humidity, and dew point measurements, all of which can be monitored in real-time via the Pegasus Astro Unity Platform. From the Unity platform, many devices can be controlled and the dew heaters can be set to automatic, allowing the sensor to decide when they need to be adjusted to maintain optimal efficacy and efficiency.
Pegasus Astro Unity Software
The Pocket Powerbox Adance Gen3 will work with a variety of 3rd party software when used with the Pegasus Astro Unity Platform. This free software includes the latest ASCOM 7 supplied drivers, which can pass data received by the external environmental sensor to supported software like MaximDL or Sequence Generator Pro. It will also allow you to access fine-grained feedback from the various power outputs, and even switch any of the 12V outputs on or off. The Unity software also supports INDI, so you can easily buddle the Powerbox Advance Gen3 with Stellarmate or other devices that uses INDILib.
Please Note: Pegasus Astro states that their Unity software suite currently does not work with Windows machines equipped with the Snapdragon line of CPUs.
Frequently Asked Questions
What is the difference between the Gen2 and Gen3 Pocket Powerbox Advance?
The Gen3 Pocket Powerbox Advance now offers:
- Wi-Fi connectivity
- 14A total current output
- 5Gbps Superspeed data transfer
- (6x) switchable USB ports (4x USB3 Type-A & 2x USB2 Type-C) with extended surge and ESD protection
- (6x) Power Outputs (4x 12V, 1 Adjustable, and 1 Always ON)
- Built-in Motor Controller (1.5A per coil, bipolar motors)
Does the Pocket Powerbox Advance Gen3 come with a power supply cable?
No, the Pocket Powerbox Advance Gen3 does not come with a power supply. Our gear experts recommend picking up an Apertura 12V 10A DC Power Supply - 5.5x2.1mm, as it will provide the power input needed to to make the most of the Pocket Powerbox Advance Gen3!
Is the Pocket Powerbox Advance Gen3 have WiFi connectivity?
Yes, the the Pocket Powerbox Advance Gen3 is WiFi enabled, allowing you to stay connected with built-in Wi-Fi and a browser-based dashboard. The Gen3 is fully compatible with ASCOM 7 and ASCOM Alpaca, enabling seamless remote control of switches, focuser, and observing conditions.
How does the standalone operation feature work?
Pocket Powerbox Advance can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!
Does the USB 2.0 Type-C port effect the data transfer speeds?
The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic. Each USB ports provide up to 3Amp of current and include surge and ESD protection.
