Apertura 14" f/8 Ritchey-Chretien Optical Tube

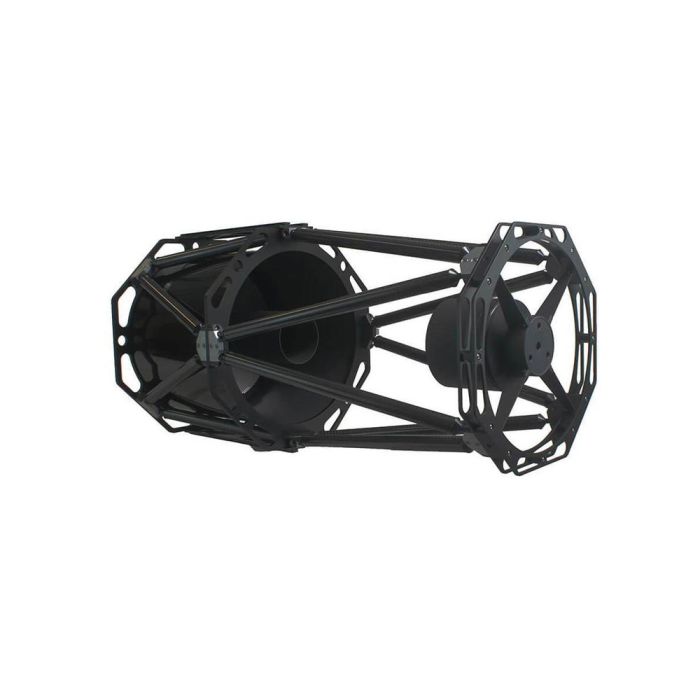

Apertura 14” f/8 Ritchey Chretien Truss Tube OTA

Ritchey Chretien telescopes do not use any lenses in their design. Instead, they consist of a concave hyperbolic primary and a convex hyperbolic secondary mirror. This design provides superb image correction across the entire field as well as very sharp images on-axis. The Apertura 14” f/8 RC OTA is a true Ritchey Chretien telescope, meaning you do not have to worry about chromatic aberrations, coma, false color, or the need to add a field flattener/corrector to the mix.

Optical testing is done several times throughout the manufacturing process, and then before the optical set is mounted in an OTA, it is tested again and hand-corrected if necessary to bring it up the advertised wavefront.

The Apertura 14” RC has a 1/12th wave or better primary mirror. The mirror is made of quartz and then topped with a highly reflective (96%) enhanced protected aluminum coating that also protects the optics against sleeks and scratches. Quartz has a coefficient of thermal expansion many times lower than most other optical substrates. This helps the precision-manufactured optics hold their shape far better than other substrates through the changing temperatures of an imaging session. The primary is mounted in a fixed mirror cell, eliminating the problem of image shift. The secondary mirror is also created out of the same materials as the primary (that is not always the case!) and is mounted in a fully adjustable cell for ease of collimation.

Using a true Ritchey-Chretien telescope for astro-imaging has been the dream of many an amateur astronomer, but making that dream come true used to be nearly impossible for all but the most financially blessed of us. This Apertura Ritchey-Chretien is a quality, large aperture RC telescope that won’t break the bank, they have opened up the possibility of that professional-style, dream telescope to a higher percentage of amateur astrophotographers.

About the Included Crayford Focuser

The 3” Crayford focuser rides on a stainless steel track, or monorail when you rack the focus in or out. This updated design feature keeps the focuser from twisting or bending when you have a camera or imaging set-up riding on it. A 10:1 dual-speed focusing system allows for both coarse and fine focus, and the focuser can be rotated 360º to help you achieve the proper image orientation.

About the Carbon Fiber Truss Design

Carbon fiber has an amazing strength to weight ratio, and it cools down like a champ. The 14” f/8 OTA includes Serrurier carbon truss tubes to keep flexure to a minimum and your optics collimated as the telescope moves across the sky. The inside of the optical tube includes a computer-optimized baffle system to eliminate stray light. Three small fans located at the back of the telescope help it reach ambient temperature in a flash.

Apertura 14” f/8 RC Telescope Specifications

• Telescope Design: Ritchey-Chretien

• Aperture: 14” or 356 mm

• Focal Length: 2848 mm

• Focal Ratio: f/8

• Mirror Material: Low Expansion Quartz

• Coatings: 96% Enhanced Protected Aluminum Coatings

• Tube Material: Carbon Fiber with metal mirror cells

• Focuser: 3” Dual Speed Crayford

• Focus Travel: +/- 80 mm

• Focuser Clear Aperture: 68 mm

• Dovetail: Losmandy D - Top & Bottom

The Ritchey-Chretien was designed for photographic use, and while you can put an eyepiece in the diagonal and use it visually, you will get less than "stellar" results. It is for this reason that we do not recommend an RC telescope for visual use. If you have any questions or need help choosing a telescope that performs well when used either visually or photographically, please don't hesitate to contact us. Thanks!
