Askar Auto Focus Kit for 50P Astrograph Refractor
Askar Auto Focus Kit for 50P Astrograph Refractor
Adapt your Askar 50P Astrograph for electronic precision with this kit! With a sidecar bracket and multiple pulleys and belts included, adding popular electronic focusers is simple. Don't fret about nailing focus with your lightning fast scope, upgrade your scope with the Askar Auto Focus Kit for 50P Astrograph Refractors!
The helical focuser of the Askar 50P Petzval Astrograph is perfect for systems where having the slimmest or simplest build is the goal, but when it comes to adding convenience and precision of today's autofocus solutions the 50P needs a hand. This is where the Askar Auto Focus Kit for 50P Astrograph Refractors comes in, giving you a solid attachment point for a variety of popular electronic focusers! Where DIY or 3rd party solutions may leave you wanting for more compatibility, stability, or polish, this kit has you covered. Multiple pulleys and belts allow you to secure a firm connection between focuser and motor, with a versatile mounting plate design to cover multiple electronic focuser faces. Additionally as a first-party accessory this kit not only precisely adds functionality, but it also makes for a perfect visual match with your scope for a system that looks as sleek as it functions!
Askar Auto Focus Kit At a Glance
|
|
|
Simple Installation
Upgrading your 50P scope with the Askar Auto Focus Kit for 50P Astrograph Refractors can be done in three main steps:

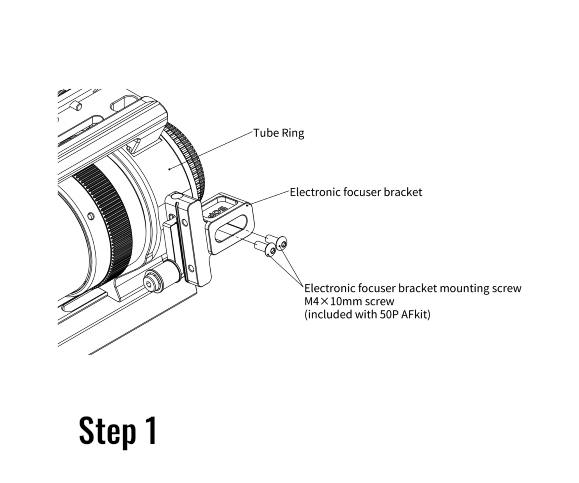

- Step 1 - Remove one of the side finder bases, and replace it with the included bracket and M4x10 screws. Place your electronic focuser over the bracket, with the output shaft pointing toward the front of the telescope, and assess which orientation the L-Plates will need to be attached to line up with the electronic focuser's mounting holes. Attach, but do not fully tighten the L-Plates with the included M4x12 screws.

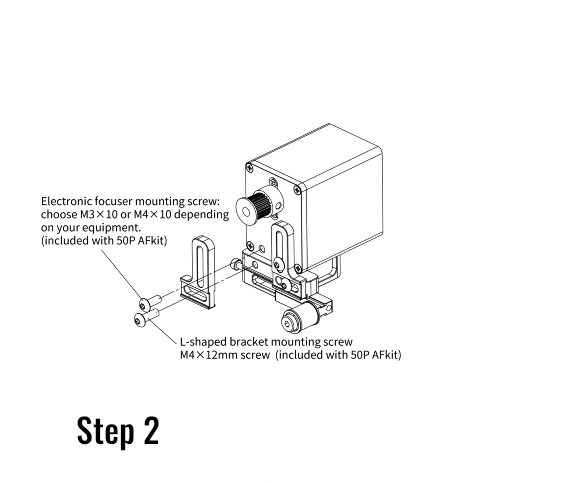

- Step 2 - Install the correct pulley for your electronic focus motor's shaft (4 mm and 5 mm ID pulleys included). Assess whether your electronic focuser mounts with either the included M3x10 or M4x10 screws. Place the electronic focuser back over the bracket, and thread the two M3x10 or M4x10 screws through the L-Plate and into the electronic focuser. Fully tighten the screws attaching the L-Plates to the bracket.

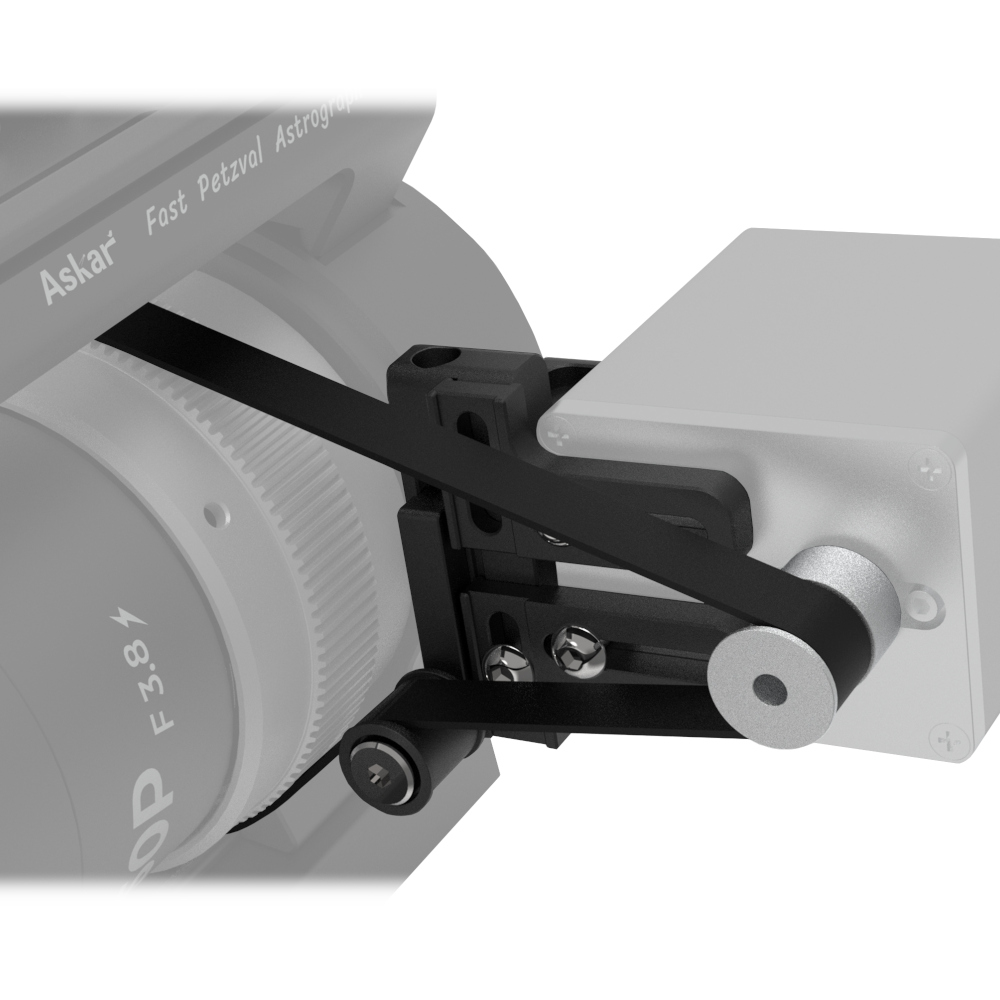

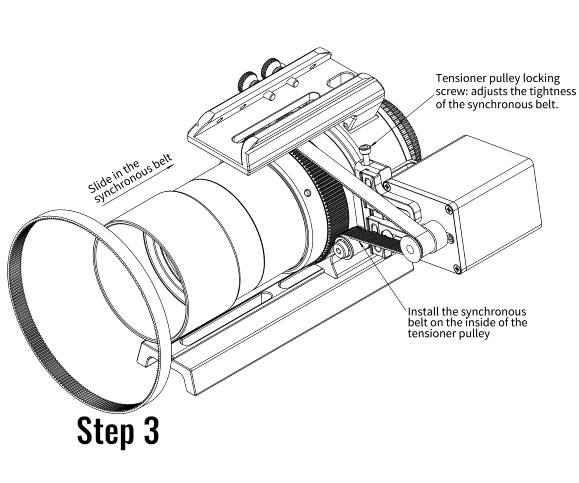

- Step 3 - Loop the smallest belt that will comfortably fit over the motor pulley and helical focus ring. Askar has provided a list of belts for popular electronic focuser models; please the features below for more info. Ensure that the belt is looped over the tensioning wheel on the bracket such that it is closer to the helical focuser, riding on the inside of the wheel. Once you have the belt in place, pull the electronic focuser away from the bracket so that it is putting firm pressure on the belt, and finish tightening down the electronic focuser mounting screws. To fine tune the belt tension, you can now access the bolt opposite the tension wheel to adjust it's position.
Learn More About the Askar Auto Focus Kit for 50P Astrograph Refractor

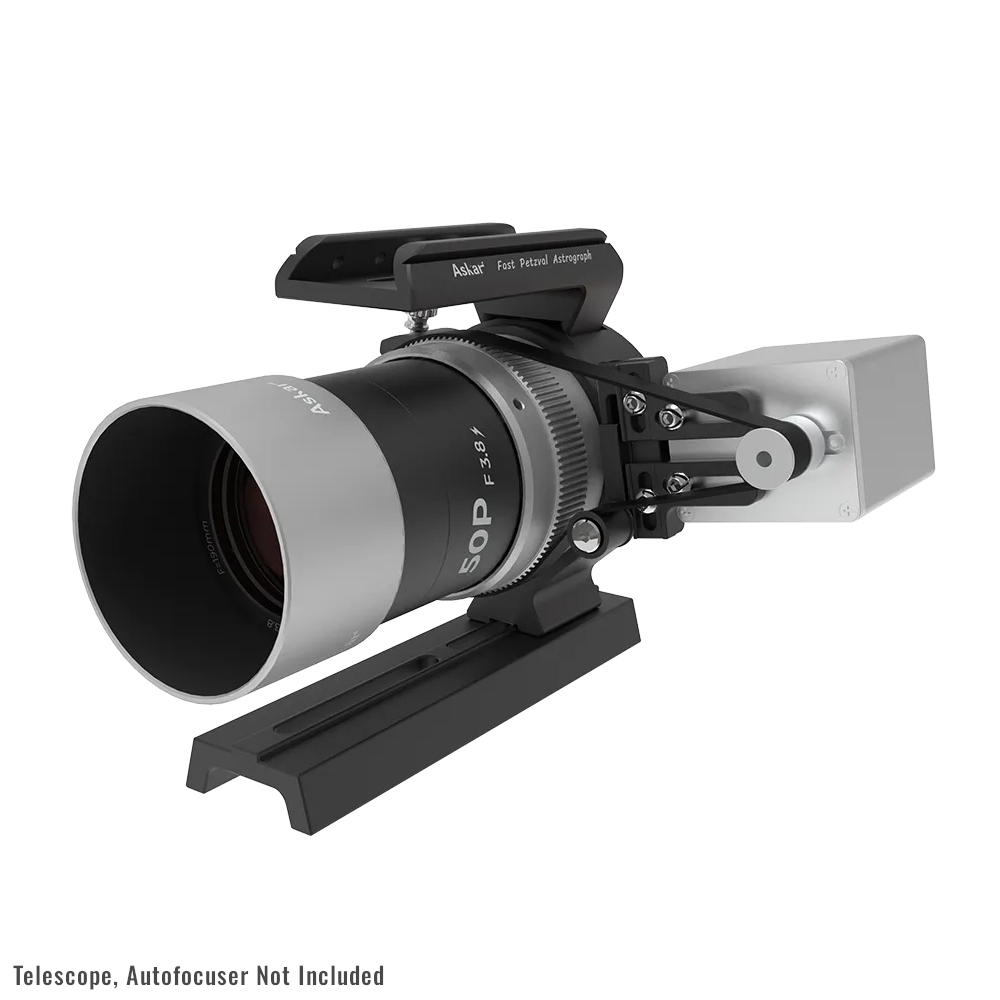

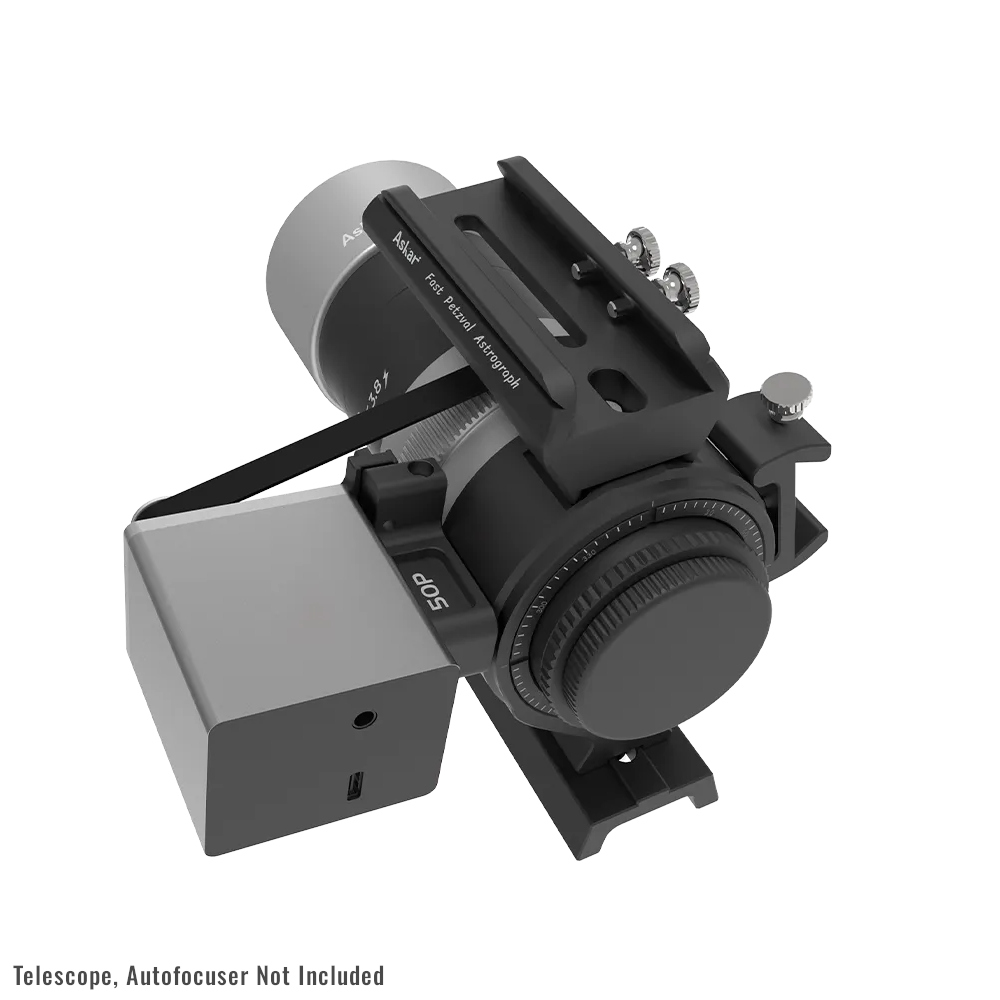

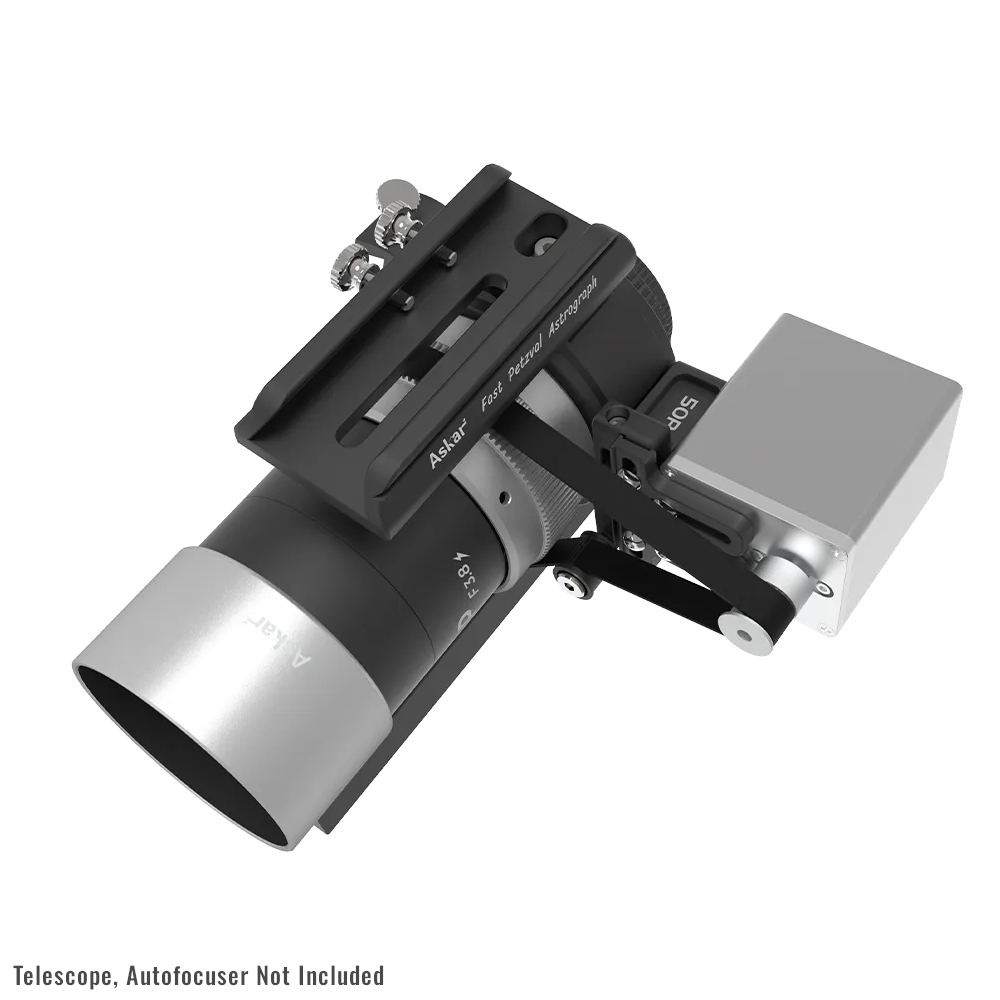

The Askar Auto Focus Kit for 50P Astrograph Refractor includes all the pieces you need for a sleek, premium, and simple upgrade process for your scope. Learn more below!
Confirmed Compatibility
Designed for the
50P Petzval Astrograph, this kit allows you to connect a number of popular "bracket-style"
electronic focus motors. Askar has confirmed that the
ZWO EAFN
and
EAF Pro, previous generation ZWO EAF,
QHYCCD QFocuser,
iOptron iEAF, and the

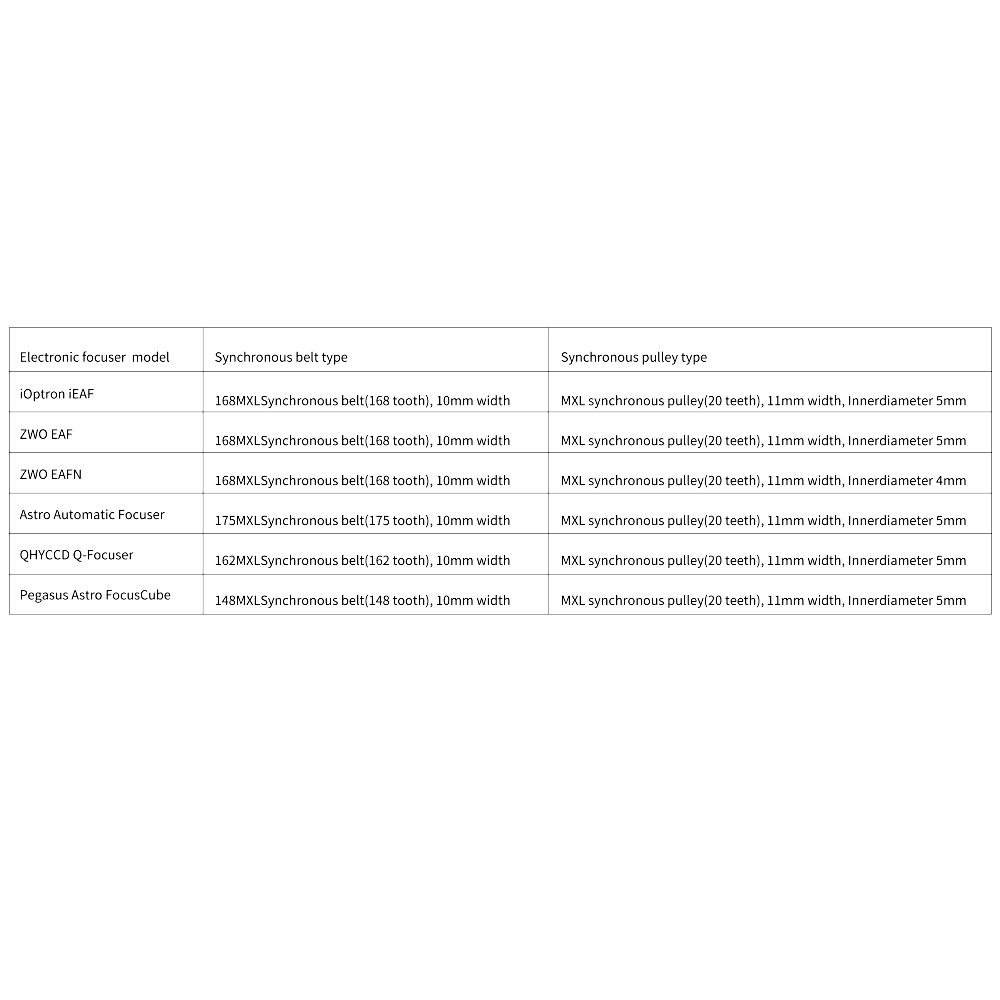

Pegasus Astro FocusCube 3, work with this kit. For the correct belt and pulley combination for your
electronic focuser, please see the chart provided here!
Add Electronic Focus Control to Your 50P
An electronic
focuser is an excellent quality of life upgrade for your Askar 50P
telescope. To ensure you can make this upgrade as painless and easy as
possible, trust your scope with this dedicated first-party kit. Experience
the ease of today's autofocus algorithms to nail focus with the click of a
button, or simply use the micro-stepping of todays electronic focusers to
dial in your focus with more precision than ever before!
All-In-One Kit

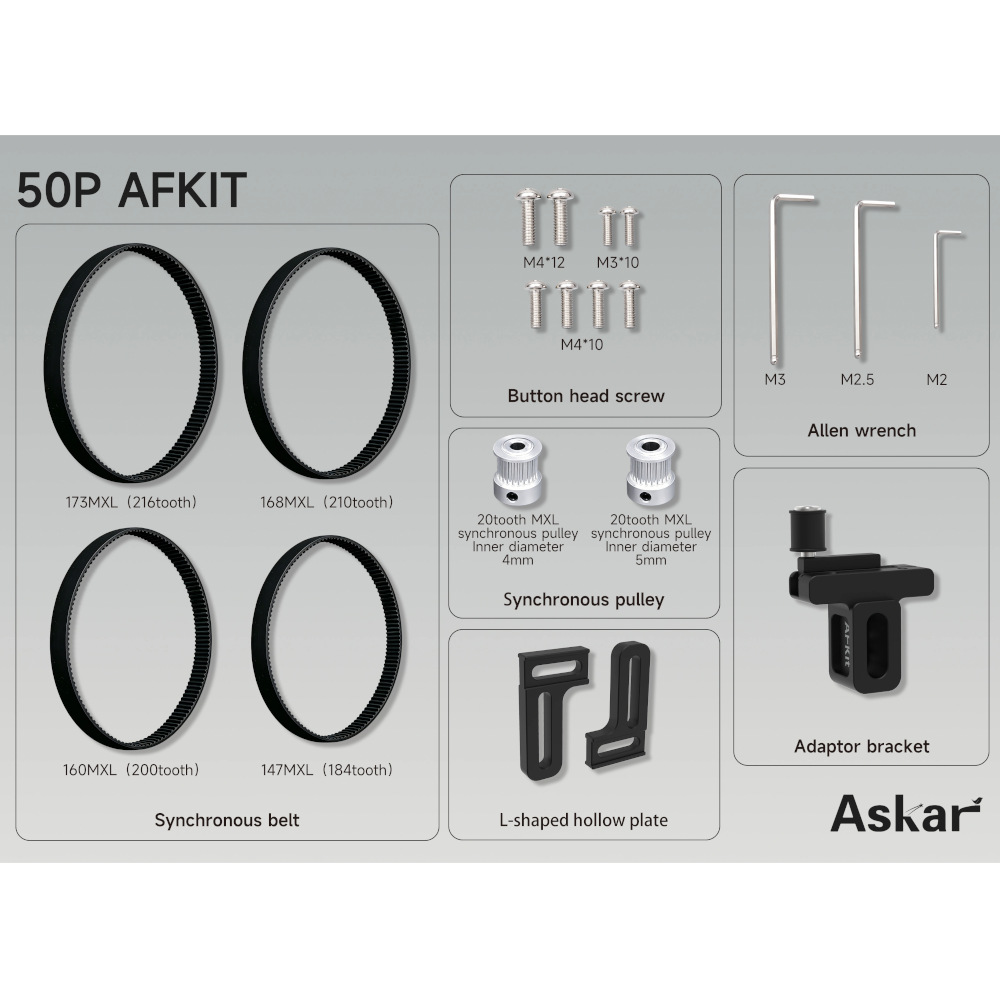

This kit comes with everything you need to add your own electronic focuser
to your Askar 50P scope! Included in the AF Kit are four differently sized
synchronous belts, two sets of electronic focuser screws, two electronic
focuser synchronous pulleys, and two L-shaped brackets which can be reversed
to accommodate a variety of equipment hole patterns. With just this kit,
adding electronic precision and autofocus convenience is easy!
