Celestron CGX Computerized Equatorial Mount - 91530
SKU: CEL-91530

This item is in stock and typically ships in 1 day or less.

free shipping

One of the many benefits to becoming a customer of High Point Scientific is that you receive Unlimited Tech Support on all of the products you purchase from us.  We understand that many of our products are technical in nature and require support.  Rest assured that our team of Telescope and Telescope Accessory experts will be standing by (800.266.9590) to support you for as long as you own one of our products!

Our price: $2,199.00

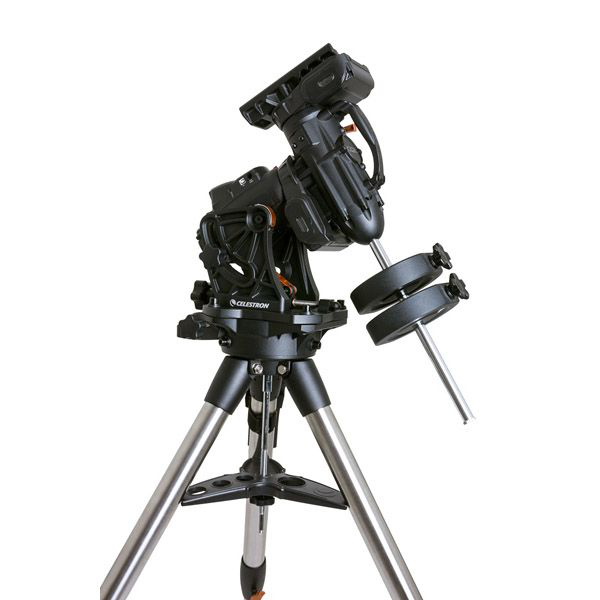

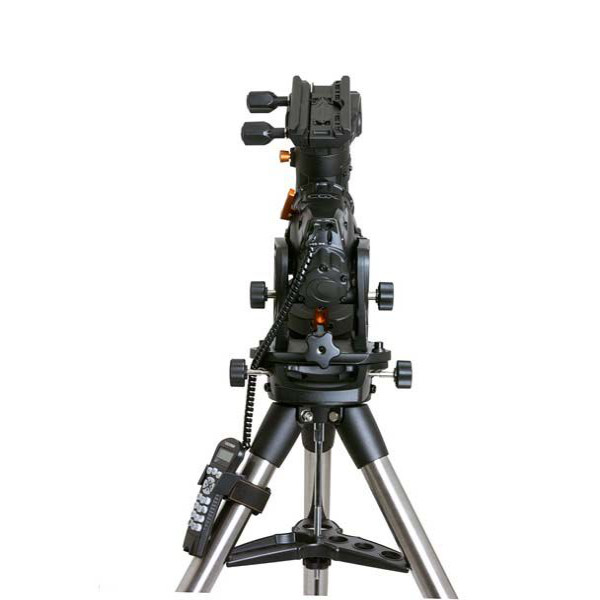

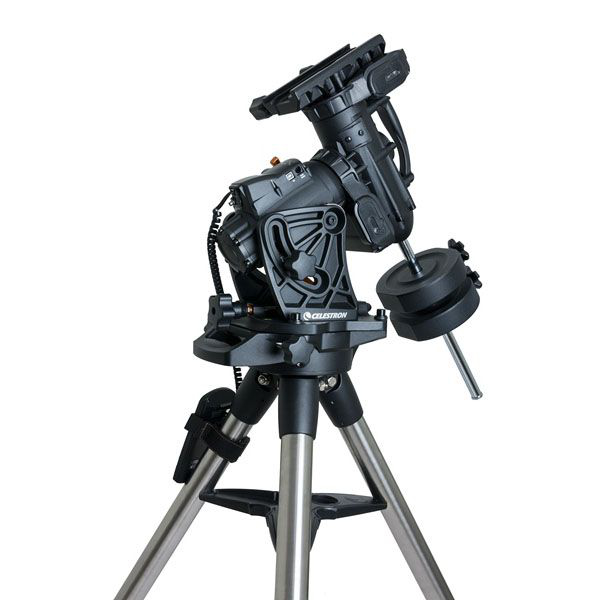

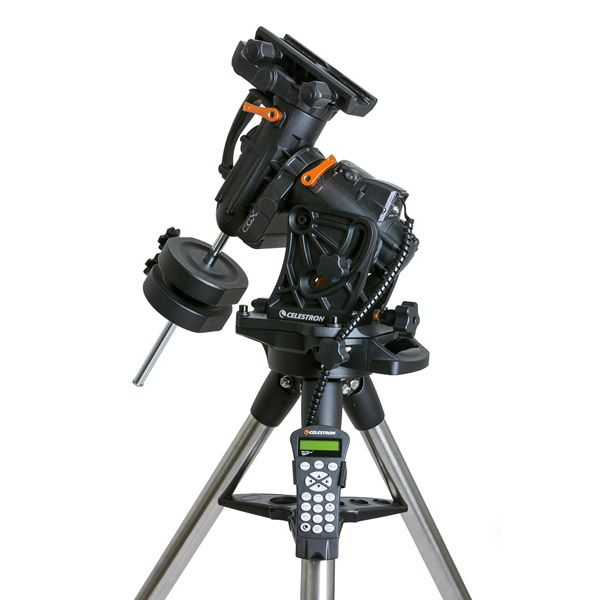

Celestron CGX GoTo German Equatorial Mount




The all-new design of the Celestron CGX mount is the culmination of years of GEM mount design by Celestron’s engineers. Always on the cutting edge of mount design, functionality and engineering, Celestron has achieved a new level of state-of-the-art with the CGX Series Equatorial Mount. The increased load capacity of 55 pounds will accommodate larger optical tube assemblies, and won’t blink an eye when you add a camera, autoguider with rings, focal reducer, filter wheel, and other imaging accessories that help you create amazing astro-images. This increased capacity and rigidity does not come at the expense of portability. The Celestron CGX EQ Mount only weighs 44 pounds, and the tripod weighs just 19.2 pounds.



More about the Celestron CGX Mount

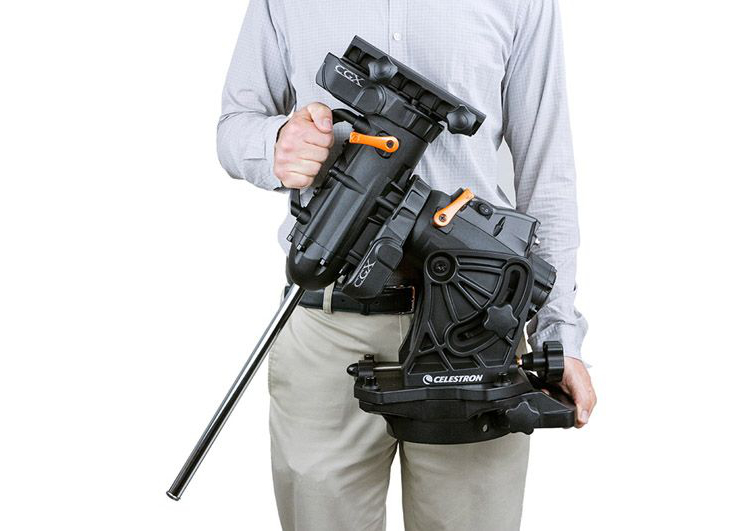

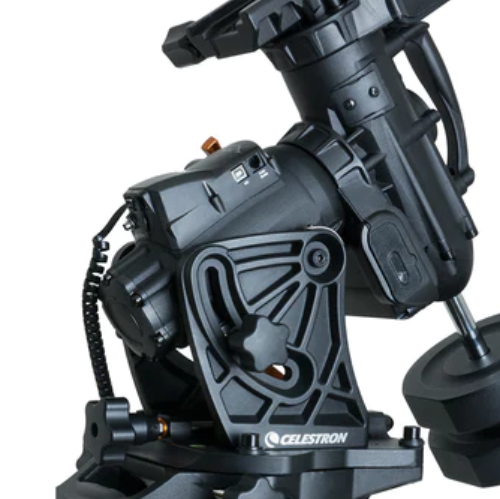

The innovative CGX has a lower profile than mounts that have come before it. Well-placed carry handles and ergonomic lock knobs make it easy to set up and make adjustments to the mount. a dual fix CGE/CG-5 dovetail saddle accepts your choice of OTA. The CGX is more responsive, with spring-loaded worm gears and belt drives that minimize backlash. Internal cabling means power and accessory ports do not move with the mount, and there are also home & limit switches as well as internal hard stops for both RA and Dec to prevent cable wrap and tripod strike.



The Celestron CGX Equatorial Mount tracks 20-degrees past the meridian on either side to maximize the best imaging time. Technologies such as SkyPortal WiFi and StarSense AutoAlign are supported, and All Star Polar Alignment technology is built-in, for faster and easier polar alignment. New telescope control software for automation and remote operation has been designed for the Celestron CGX in conjunction with Planewave Instruments. This software features multi-point GoTo modeling, focusing and plate solving. With this innovative software, no third party advanced PC control software is needed! An intuitive hand controller allows you to align and move the CGX with ease.

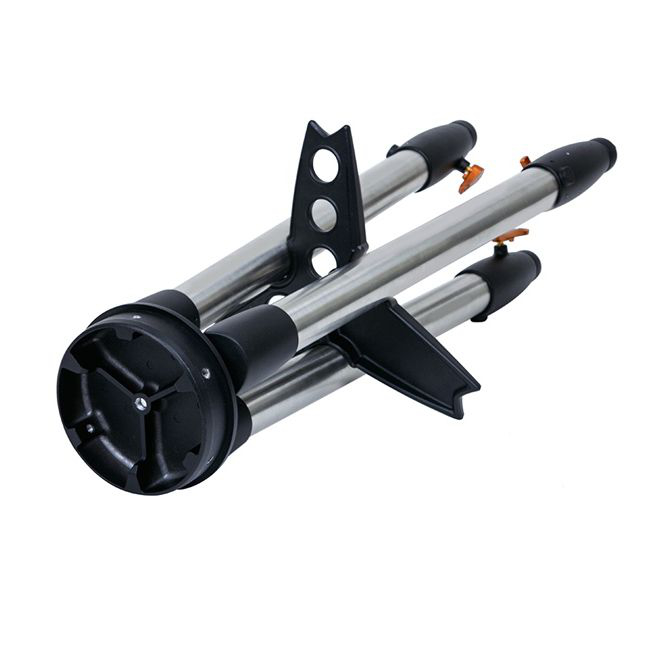

The CGX tripod comes with 2” steel tripod legs that have graduated markings for quick leveling. The spreader bar adds extra stability to the heavy-duty tripod, and offers a few places to store your extra eyepieces when observing.



Celestron CGX Equatorial Mount Highlights





  • The CGX Mount has a large 55 pound weight capacity!

  • More responsive, the CGX mount has spring-loaded worm gears with belt drives to minimize backlash.

  • Easily mount a wide range of optical tube assemblies on the CGX dual-fit CG-5 (Vixen)/CGEM (Losmandy) dovetail saddle plate.

  • Internal cabling, Home and Limit switches, internal hard stops for both axes work to prevent cable wrap, tripod strike, and keep your cables safe and out of the way.

  • The CGX tracks 20-degrees past the meridian on either side, supporting you in your astro-imaging endeavors.

  • All-Star Polar Alignment technology is built-in, making polar alignment easier and faster. The CGX mount also supports StarSense AutoAlign.

  • Improved ergonomics and intuitive carry-handles

  • Sophisticated telescope control software is all new and designed in conjunction with Planewave Instruments. Features include multi-point GoTo modeling, focusing and plate solving.

  • No third party advanced PC control software is necessary.

  • Mount weighs just 44 pounds, making it very portable.

  • Included heavy-duty tripod has 2" stainless steel legs with graduated marks to make leveling easier.


Celestron CGX Mount Specifications




  • Mount Type: German Equatorial

  • Instrument load capacity: 55 lb.

  • Tripod height adjustment range: 47.25” to 77.5” including EQ head

  • Tripod leg diameter: 2"

  • Latitude adjustment range: 3 - 65 degrees

  • Tripod Weight: 19.2 lb.

  • EQ Head Weight: 44 lb.

  • Max Slew Speed: 5 degrees per second

  • Tracking Rates: Sidereal, Solar and Lunar

  • Number of Aux ports: 2

  • Autoguide port: Yes

  • USB Port: Yes

  • Software: New telescope control PC software


For more information on the Celestron CGX Equatorial Mount, take a look at our Celestron CGX Mount Review, or watch a YouTube video in which Celestron product engineer, Bryan Cogdell, proudly goes over the highlights of the CGX Mount with High Point Scientific's Robert Dugan

.
Description
Description

Celestron CGX GoTo German Equatorial Mount


The all-new design of the Celestron CGX mount is the culmination of years of GEM mount design by Celestron’s engineers. Always on the cutting edge of mount design, functionality and engineering, Celestron has achieved a new level of state-of-the-art with the CGX Series Equatorial Mount. The increased load capacity of 55 pounds will accommodate larger optical tube assemblies, and won’t blink an eye when you add a camera, autoguider with rings, focal reducer, filter wheel, and other imaging accessories that help you create amazing astro-images. This increased capacity and rigidity does not come at the expense of portability. The Celestron CGX EQ Mount only weighs 44 pounds, and the tripod weighs just 19.2 pounds.

More about the Celestron CGX Mount


The innovative CGX has a lower profile than mounts that have come before it. Well-placed carry handles and ergonomic lock knobs make it easy to set up and make adjustments to the mount. a dual fix CGE/CG-5 dovetail saddle accepts your choice of OTA. The CGX is more responsive, with spring-loaded worm gears and belt drives that minimize backlash. Internal cabling means power and accessory ports do not move with the mount, and there are also home & limit switches as well as internal hard stops for both RA and Dec to prevent cable wrap and tripod strike.

The Celestron CGX Equatorial Mount tracks 20-degrees past the meridian on either side to maximize the best imaging time. Technologies such as SkyPortal WiFi and StarSense AutoAlign are supported, and All Star Polar Alignment technology is built-in, for faster and easier polar alignment. New telescope control software for automation and remote operation has been designed for the Celestron CGX in conjunction with Planewave Instruments. This software features multi-point GoTo modeling, focusing and plate solving. With this innovative software, no third party advanced PC control software is needed! An intuitive hand controller allows you to align and move the CGX with ease.

The CGX tripod comes with 2” steel tripod legs that have graduated markings for quick leveling. The spreader bar adds extra stability to the heavy-duty tripod, and offers a few places to store your extra eyepieces when observing.

Celestron CGX Equatorial Mount Highlights


  • The CGX Mount has a large 55 pound weight capacity!
  • More responsive, the CGX mount has spring-loaded worm gears with belt drives to minimize backlash.
  • Easily mount a wide range of optical tube assemblies on the CGX dual-fit CG-5 (Vixen)/CGEM (Losmandy) dovetail saddle plate.
  • Internal cabling, Home and Limit switches, internal hard stops for both axes work to prevent cable wrap, tripod strike, and keep your cables safe and out of the way.
  • The CGX tracks 20-degrees past the meridian on either side, supporting you in your astro-imaging endeavors.
  • All-Star Polar Alignment technology is built-in, making polar alignment easier and faster. The CGX mount also supports StarSense AutoAlign.
  • Improved ergonomics and intuitive carry-handles
  • Sophisticated telescope control software is all new and designed in conjunction with Planewave Instruments. Features include multi-point GoTo modeling, focusing and plate solving.
  • No third party advanced PC control software is necessary.
  • Mount weighs just 44 pounds, making it very portable.
  • Included heavy-duty tripod has 2" stainless steel legs with graduated marks to make leveling easier.

Celestron CGX Mount Specifications

  • Mount Type: German Equatorial
  • Instrument load capacity: 55 lb.
  • Tripod height adjustment range: 47.25” to 77.5” including EQ head
  • Tripod leg diameter: 2"
  • Latitude adjustment range: 3 - 65 degrees
  • Tripod Weight: 19.2 lb.
  • EQ Head Weight: 44 lb.
  • Max Slew Speed: 5 degrees per second
  • Tracking Rates: Sidereal, Solar and Lunar
  • Number of Aux ports: 2
  • Autoguide port: Yes
  • USB Port: Yes
  • Software: New telescope control PC software

For more information on the Celestron CGX Equatorial Mount, take a look at our Celestron CGX Mount Review, or watch a YouTube video in which Celestron product engineer, Bryan Cogdell, proudly goes over the highlights of the CGX Mount with High Point Scientific's Robert Dugan

.
Specifications
Specifications
Model Number 91530
Mount or Tripod Type Equatorial Mounts
Manual, Motorized or GoTo Mount? Computerized with GoTo
Hand Controller Included? Yes
Objects in Database 40,000
Power Options for Mount 12V DC
Mount Latitude Range (°) 3-65
Mount Weight (lb.) 44
AutoGuider Port? Yes
Periodic Error Correction? Yes, plus PPEC
Mounting Style Vixen or Losmandy Dovetail Plate
Includes Counterweights? Yes
Number of Counterweights Included Two
Counterweight Weights (lb.) 11 lb.
Mount Includes Tripod or Pier? Yes
Mount Weight Capacity (lb.) 55
Tripod Leg Diameter (in.) 2"
Tripod Includes Spreader Bar? Yes, with Eyepiece Storage
Tripod Leg Material Stainless Steel
Tripod Weight (lb.) 19.2
Warranty Two Years
What's in the Box?
What's in the Box?
  • Celestron CGX Computerized GoTo Equatorial Mount
  • 2" Heavy-Duty Tripod w/Stainless Steel Legs
  • Accessory Tray
  • Two 11 lb. Counterweights
  • NexStar + USB Hand Controller
  • DC Power Cable
